Technical Tip: Getting HTTP response code 403 Incorrect Service

[duenlim]

Description	This article describes that it is not possible to access HTTP websites such as http://example.com, http://dlptest.com or http://xxx.xxx but possible to access HTTPS websites.
Scope	FortiProxy v7.0.x , v7.2.x and v7.4.x.

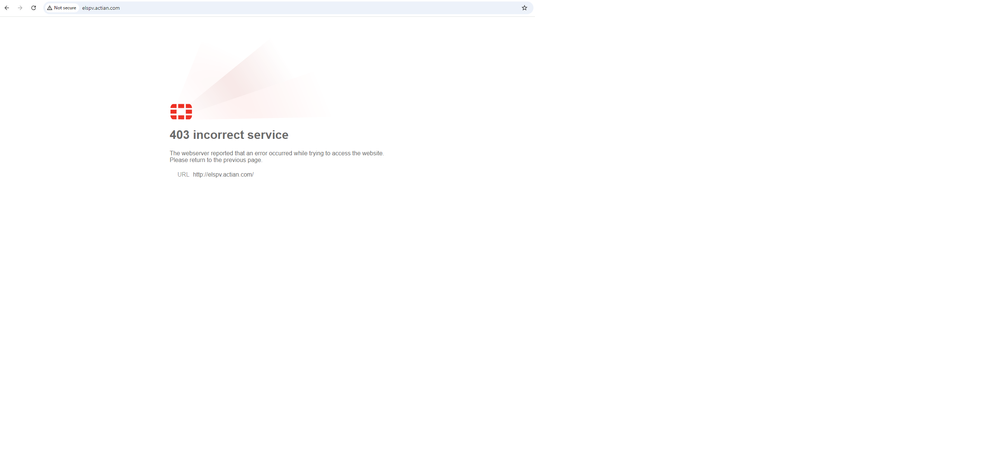

Solution	Accessing the HTTP website gets 403 incorrect services as shown in the picture.  Attached is the Explicit Proxy configuration with PAC file enabled (sample pac file hosted on FortiProxy). The HTTPS Port has been set to Specify Port 80 and the PAC file has specified Port 80 as well. It means that any applications or browsers that use that PAC file will eventually use the HTTPS Port via Explicit Proxy.  Packet capture analyzed results and Wad debug log. The pcap analyzed results show getting a 'Forbidden' message when access to http://dlptest.com from Client IP 10.176.2.144 sends HTTP request: 142 0.000681 10.176.2.144 12466 10.176.2.91 80 HTTP 530 476 GET http://dlptest.com/ HTTP/1.1 GET http://dlptest.com/ HTTP/1.1 Host: dlptest.com Proxy-Connection: keep-alive Cache-Control: max-age=0 Upgrade-Insecure-Requests: 1 User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/130.0.0.0 Safari/537.36 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.7 Accept-Encoding: gzip, deflate Accept-Language: en-US,en;q=0.9 FortiProxy response 403 Forbidden: 144 0.001918 10.176.2.91 80 10.176.2.144 12466 HTTP 7354 7300 HTTP/1.1 403 Forbidden (text/html)[Packet size limited during capture] HTTP/1.1 403 Forbidden Connection: close Content-Type: text/html Cache-Control: no-cache The wad debug log shows the same when Client IP 10.176.2.144 sends an HTTP request: diagnose wad filter clear diagnose wad filter src 10.176.2.144 diagnose wad debug enable category http diagnose wad debug enable level information diagnose wad debug enable level verbose diagnose debug enable [I][p:10246][s:1030707510][r:16926] wad_dump_http_request :2731 hreq=0x7fae88251048 Received request from client: 10.176.2.144:12466 GET http://dlptest.com/ HTTP/1.1 Host: dlptest.com Proxy-Connection: keep-alive Upgrade-Insecure-Requests: 1 User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/130.0.0.0 Safari/537.36 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.7 Accept-Encoding: gzip, deflate Accept-Language: en-US,en;q=0.9 FortiProxy response 403 Forbidden: [V][p:10246][s:1030707510][r:16926] wad_http_marker_uri :1303 scheme=http [I][p:10246][s:1030707510][r:16926] wad_http_dns_resolve :8227 [0x7fae88251048] DNS request name=dlptest.com len=11 type/pref=0/0 [I][p:10246][s:1030707510][r:16926] wad_http_dns_request_done :12925 [0x7fae88251048] DNS resolved: 35.209.95.242 [V][p:10246][s:1030707510][r:16926] wad_http_req_get_dst_intf :12632 vd=0 dst=35.209.95.242 ifidx=3 [I][p:10246][s:1030707510][r:16926] __wad_http_build_replmsg_resp :789 Generating replacement message. incorrect service repmsg_id 2 ---> Generate Incorrect Service for replacement message [I][p:10246][s:1030707510][r:16926] wad_dump_fwd_http_resp :2746 hreq=0x7fae88251048 Forward response from Internal: HTTP/1.1 403 Forbidden Connection: close Content-Type: text/html Cache-Control: no-cache To stop debug: diagnose debug disable diagnose debug reset The right configuration in Explicit Proxy shall use the same port number for HTTP and HTTPS. Also, make sure the PAC file configuration is followed. Alternatively, it can be modified the PAC file to specifically process some HTTP websites with Explicit Proxy Port 8080. The HTTPS Port in Explicit Proxy only processed HTTPS web pages.
