Description
This article describes how to directly connect CISCO switch's privileged mode bypassing the step of entering enable mode password.
Scope
FortiPAM.
Solution

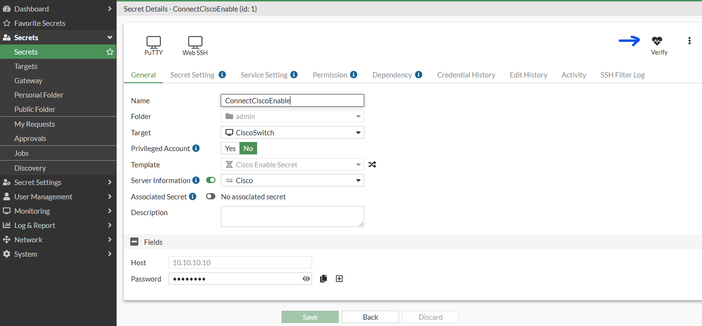

First step:
A 'Cisco Enable Secret' secret needs to be created in order to save the Host and Enable mode password to first connect to the enable mode.
The following fields should be filled:
- 'Name': Specify a name of a secret.
- 'Folder': Select a personal or public folder to add the secret.
- 'Target': Select the target of the secret.
- 'Privileged account': Select 'Yes' or 'No' based on a need.
- 'Template': Select 'Cisco Enable Secret'.
- 'Server information': Enable this feature and select 'Cisco' from the drop down list.
- 'Associated Secret': Can be left empty at this step.
- 'Description': Add description if it is needed.
- 'Host': IP address of the Cisco switch.
- 'Password': Enter a password for the enable mode.
Note: Verify the password using the 'Verify' option in the top right of the screen.

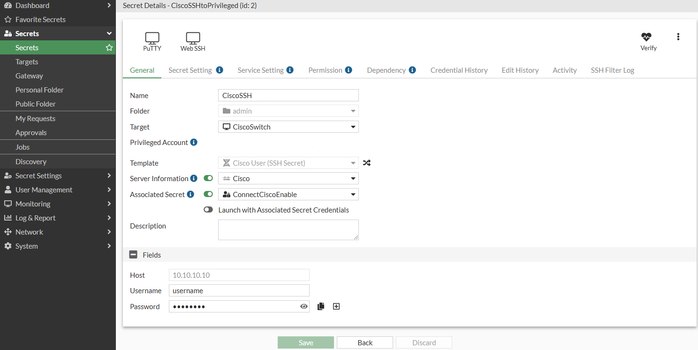

Second step:
A 'Cisco User (SSH Secret)' secret needs to be created to save a Host, a username, and a password.
Fill in the following fields:
- 'Name': Specify a name of a secret.
- 'Folder': Select a personal or public folder to add the secret.
- 'Target': Select the target of the secret.
- 'Privileged account': Disabled by default. Can be enabled as needed.
- 'Template': Select 'Cisco Enable Secret'.
- 'Server information': Enable this feature and select 'Cisco' from the drop-down list.
- 'Associated Secret': Select the 'Cisco Enable Secret' secret that was created before this step.
- 'Description': Add a description if needed.
- 'Host': IP address of the Cisco switch.
- 'Password': Enter credentials of the privileged mode.
Note: Be sure to verify credentials using the 'Verify' option in the top right of the screen as needed.
Additionally, enable 'SSH-Auto Password' in the 'Service Setting' of the 'Cisco User (SSH secret)' secret in order to skip the enable password input after making an 'ssh' connection to a switch. This setting is disabled by default.

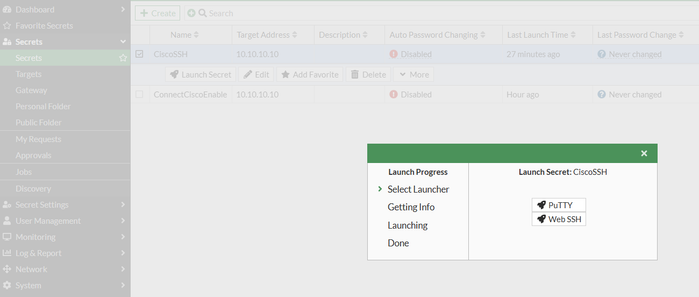

Then, select the 'Cisco User (SSH secret)' on the secret list, select the 'Launch Secret' option, and connect by selecting one of the options on the pop-up screen. It can be done through the 'Cisco user (SSH secret)' settings section as well, as shown above.
Final step:

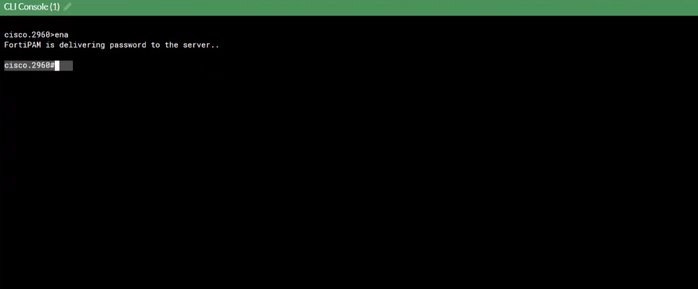

After establishing the ssh session with a switch, it is necessary to input the 'enable' command in order to move to the privileged mode.
Shortcuts for 'enable' may also be entered instead of the whole command.
