| Description |
This article describes the steps required to configure FortiPAM in High Availability (HA) mode. |
| Scope | FortiPAM, FortiSRA. |
| Solution |
FortiPAM supports HA clusters in active-passive mode, where all tasks are managed by the primary node, and configurations such as the secret database, targets, and templates are automatically synchronized with the secondary node. FortiPAM also supports unicast HA, which allows members located at different sites with individually assigned IP addresses to form an HA cluster.

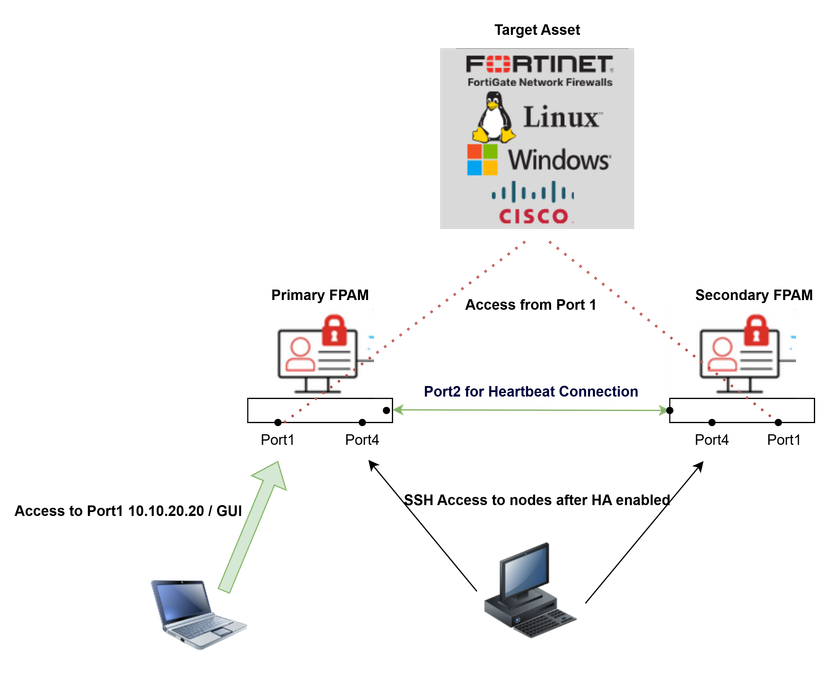

Below is a schema showing how FortiPAM HA cluster nodes are connected.
In this article, the primary FortiPAM node has three interfaces configured:
Screenshots of Interfaces Configured:
Configuration made on High Availability for the Primary Node:
Mode: Active-Passive / Device-Priority: 200 (For Primary Node, this priority should be higher than secondary).
Cluster Settings:
Management Interface Reservations: This step allows the configuration of interfaces designated for SSH access to FortiPAM. The interface used for SSH should:
Override: It is recommended to enable this option. When enabled, the primary device will automatically resume the master role if it rejoins the cluster after a failure or reboot.
Important Note: Make sure that both FortiPAM nodes have the same group-id configured. This group-id is automatically configured by the system. It is necessary to verify that both nodes have the same ID; otherwise, they will not be able to join the cluster. This can be checked only via CLI, as shown below
config system ha set group-id 0 <--- This value should be the same on both nodes that are going to join the cluster. set group-name "PAMHA" set mode active-passive …
Configurations followed on Secondary Node:
After enabling high availability, the nodes will negotiate to form a cluster. The node with the higher device priority will be designated as the primary node. Access to the primary node should remain available via:
GUI access to the secondary node will no longer be available. Only SSH access, as configured under Management Interface Reservation, will be permitted.
The HA status should reflect a synchronized state as shown below:
The following commands can assist with verification and troubleshooting of HA status and synchronization:
get system ha status
Verify via System-ARP that Layer-3 HA IPs and Heartbeat Link local addresses (169.254.X) are being learned correctly.
get system arp
Address Age(min) Hardware Addr Interface 10.74.122.2 0 00:69:6f:6e:01:02 port2 <------ HA-Interface, IP from other node. 169.254.0.33 - 00:69:6f:6e:01:02 port2 <------ Link-Local Heartbeat IP addresses. 10.5.63.254 0 00:09:0f:09:fe:23 port3 10.5.31.254 0 00:09:0f:09:fe:23 port4 169.254.0.33 0 00:69:6f:6e:01:02 port_ha 10.10.20.1 90 00:78:65:6e:b1:01 port1
To verify checksum status:
diagnose sys ha checksum cluster
================== FPAVULTM2300###### ==================
is_manage_primary()=1, is_root_primary()=1 debugzone global: 3d 16 77 dd e5 48 4f 35 17 df 14 1a 9c 9c d1 12 root: f1 7b fe 74 48 bd 4c 6c 36 18 4d 19 aa 07 f2 5f all: 63 e5 50 ae 64 53 23 fb a2 2d 65 d2 b4 b6 5b c4
checksum global: 3d 16 77 dd e5 48 4f 35 17 df 14 1a 9c 9c d1 12 root: f1 7b fe 74 48 bd 4c 6c 36 18 4d 19 aa 07 f2 5f all: 63 e5 50 ae 64 53 23 fb a2 2d 65 d2 b4 b6 5b c4
================== FPAVULTM2###### ==================
is_manage_primary()=0, is_root_primary()=0 debugzone global: 3d 16 77 dd e5 48 4f 35 17 df 14 1a 9c 9c d1 12 root: f1 7b fe 74 48 bd 4c 6c 36 18 4d 19 aa 07 f2 5f all: 63 e5 50 ae 64 53 23 fb a2 2d 65 d2 b4 b6 5b c4
checksum global: 3d 16 77 dd e5 48 4f 35 17 df 14 1a 9c 9c d1 12 root: f1 7b fe 74 48 bd 4c 6c 36 18 4d 19 aa 07 f2 5f all: 63 e5 50 ae 64 53 23 fb a2 2d 65 d2 b4 b6 5b c4
To check the list of HA Checksum-Tables on both nodes:
diagnose sys ha checksum test
system.global: d22acc890a3f12fb418693dcf58815ec system.accprofile: 8d96b9ce6ac2b02e02de0ce8011598c5 firewall.shaping-profile: 00000000000000000000000000000000 system.interface: 5873dd45edd01f09c1ef2e7819369e8e system.password-policy: cbdb0648d24eceb433ad338e20e06a54 system.password-policy-guest-admin: 00000000000000000000000000000000 system.sms-server: 00000000000000000000000000000000 system.custom-language: ee62389ec8766e8436b032d6a6b04527 system.admin: ec293aaa0b6920044fc24918356bcc73 system.api-user: 00000000000000000000000000000000 system.sso-admin: 5873dd45edd01f09c1ef2e7819369e8e system.sso-forticloud-admin: 00000000000000000000000000000000 system.maintenance: 165f95de755e0462ae7c5a2603ad7f5e system.fsso-polling: 00000000000000000000000000000000 system.ha: e734318dc22d6a84a3a1438ede55670c system.ha-lic: 1a0f1bcf804ecf2fc3b96d76dabf5ae3 system.ha-monitor: 00000000000000000000000000000000 system.storage: 2b3c98f4a5b22fa725b4991d774f7226 system.dns: a9db895811b1cbcd79e0499eeb371baf system.ddns: 00000000000000000000000000000000 system.sflow: 00000000000000000000000000000000 system.netflow: 00000000000000000000000000000000 system.replacemsg-image: 7d11e16534085c25abe076a9e1622887
To recalculate checksums:
diagnose sys ha checksum recalculate
A manual sync can be triggered:
execute ha synchronize start starting synchronize with HA master...
If the second node is unable to join the cluster, it is recommended to reboot the secondary node. This reboot should trigger the cluster join process again from the secondary node.
With the information provided above, it is possible to identify exactly where the variation in configuration exists. In this instance, the configurations of the two FortiPAM Firewalls should be checked under the:
config system global
diagnose debug app hasync 255 diagnose debug application hatalk -1 <----- To check the Heartbeat communication between HA devices. diagnose debug application hasync -1 <----- To check the HA synchronization process. diagnose debug enable
The output from the debug should be as below:
<hatalk> vcluster_0: ha_prio=0(primary), state/chg_time/now=2(work)/1747497460/1747570419 <hatalk> parse options for 'FPAVULTM23000761', packet_version=1 <hatalk> new member 'FPAVULTM23000761' is added into group <hatalk> [hatalk_gmember_update_last_hb_jiffies:209] recv hb packet from 'FPAVULTM23000761' on hbdev='port2' since last_lost_jiffies=0/7296513 <hatalk> vcluster_0: vmember 'FPAVULTM23000761' updated, override=1, usr_priority=150, mondev/pingsvr=0/0, uptime/reset_count=0/0, flag=0x00000001 <hatalk> cfg_changed is set to 1: hatalk_vcluster_add_vmember <hatalk> vcluster_0: 'FPAVULTM23000759' is elected as the cluster primary of 2 members <hatalk> vcluster_0: state changed, 2(work)->2(work) <hatalk> vcluster_0: delay work_as_primary in timer <hatalk> vcluster_0: reelect=1, vmember updated <hatalk> reap child 2048 (0) <hatalk> reap child 2049 (0) <hatalk> reap child 2050 (0) <hatalk> vcluster_0: reelect=0, hatalk_vcluster_timer_func <hatalk> vcluster_0: 'FPAVULTM23000759' is elected as the cluster primary of 2 members <hatalk> vcluster_0: state changed, 2(work)->2(work) <hatalk> vcluster_0: delay work_as_primary in timer <hatalk> cfg_changed is set to 0: hatalk_packet_setup_heartbeat <hatalk> setup new heartbeat packet: hbdev='port2', packet_version=6 <hatalk> options buf is small: opt_type=41(DEVINFO), opt_sz=13806, buf_sz=1178 <hatalk> pack compressed dev_info: dev_nr=4, orig_sz=13800, z_len=70 <hatalk> heartbeat packet is set on hbdev 'port2' <hatalk> [hatalk_timer_func:1146] need_set_haip=1 <hatalk> 'port2' is selected as 'port_ha' <hatalk> change port_ha ip to 169.254.0.34 <hatalk> reap child 2051 (0) <hatalk> parse options for 'FPAVULTM23000761', packet_version=2 <hatalk> vcluster_0: vmember 'FPAVULTM23000761' updated, override=1, usr_priority=150, mondev/pingsvr=0/0, uptime/reset_count=0/0, flag=0x00000000 <hatalk> vcluster_0: 'FPAVULTM23000759' is elected as the cluster primary of 2 members FPAVULTM23000759 # <hatalk> vcluster_0: ha_prio=0(primary), state/chg_time/now=2(work)/1747497460/1747570540 <hatalk> vcluster_0: ha_prio=0(primary), state/chg_time/now=2(work)/1747497460/1747570550 <hatalk> vcluster_0: ha_prio=0(primary), state/chg_time/now=2(work)/1747497460/1747570560 <hatalk> vcluster_0: ha_prio=0(primary), state/chg_time/now=2(work)/1747497460/1747570570 FPAVULTM23000759 # <hatalk> vcluster_0: ha_prio=0(primary), state/chg_time/now=2(work)/1747497460/1747570580 <hatalk> vcluster_0: ha_prio=0(primary), state/chg_time/now=2(work)/1747497460/1747570590 FPAVULTM23000759 # <hatalk> vcluster_0: ha_prio=0(primary), state/chg_time/now=2(work)/1747497460/1747570631 <hatalk> vcluster_0: ha_prio=0(primary), state/chg_time/now=2(work)/1747497460/1747570641 <hatalk> vcluster_0: ha_prio=0(primary), state/chg_time/now=2(work)/1747497460/1747570651 <hatalk> vcluster_0: ha_prio=0(primary), state/chg_time/now=2(work)/1747497460/1747570661
Note: In scenarios where an additional DR node is located at a different site (in a separate broadcast domain), it is important to enable 'Unicast Status' in the High Availability cluster configuration, as shown below:
This can be configured via CLI as well:
config system ha set unicast-gateway X.X.X.X config unicast-peers edit 1 set peer-ip Y.Y.Y.Y
To allow HA synchronization while maintaining independent IP addressing, FortiPAM must be configured to exclude specific items from HA sync. The following components can be excluded:
This can be achieved by configuring vdom-exceptions, which allow administrators to specify which objects should be excluded from HA configuration synchronization.
An example configuration of vdom-exceptions is shown below:
show system vdom-exception config system vdom-exception edit 1 set object firewall.vip next edit 2 set object system.interface next edit 3 set object router.static next edit 4 set object user.saml next edit 5 set object system.ftm-push next end |
