Technical Tip: How to send tagged voice VLAN to FortiSwitch via FortiNAC RADIUS attributes

[Hawada1]

Description	This article describes how to assign voice VLAN to IP phones when FortiSwitch is integrated with FortiNAC.
Scope	FortiNAC, FortiFone and FortiSwitch.

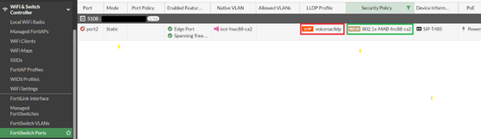

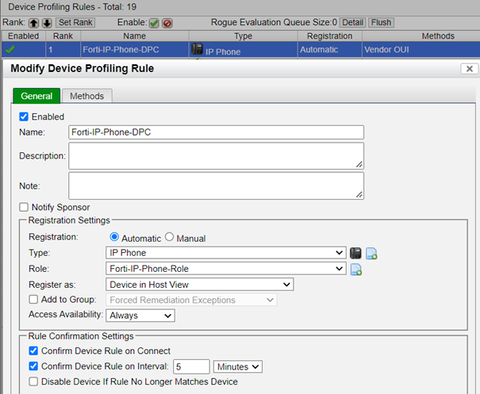

Solution	To assign voice VLAN to IP phones connected to FortiSwitch when it is integrated with FortiNAC (FNAC). FortiNAC must authenticate the IP phone using Device Profiling Rules. LLDP profile for voice traffic must be configured on FortiGate (FGT) managing the FortiSwitch (FSW) and assigned to the interface where the IP phone is connected. FortiSwitch version must be 7.0.1 and above. LLDP is enabled on the IP phone. VLAN config on FortiGate: config switch vlan     edit 120         set description "voicenac"  <-- VLAN description.        next FortiNAC Model Configuration: Access from Topology: Select Network -> Inventory. Expand the Container icon. Select the device, and then select Virtualized Devices. 'Double-click' on root VDOM. VLAN name/description is 'voicenac';  '1' has been added to the beginning of the RADIUS AVP 'Egress-VLAN-Name' <tagged/untagged(1 or 2)><VLAN Name String> (example: "1voicenac") to be understood by the FortiSwitch as a tagged VLAN. Device Profiling Rule matches only the Vendor OUI: Network Policy, and User/host profile to authenticate the IP phone:   FortiSwitch RADIUS Security Policy: FortiSwitch Ports managed by FortiGate: LLDP profile configured on FortiGate and assigned to FortiSwitch port2 (as shown in the above screenshot): config switch-controller lldp-profile     edit "voicefnaclldp"         set med-tlvs inventory-management network-policy location-identification         set auto-isl disable             # config med-network-policy                 edit "voice"                     set status enable                     set vlan-intf "voicenac"                     set assign-vlan enable                     set dscp 46             end     next end Important Note: This section only needs to be done if the phones are not statically set/tagged for the voice VLAN For Phones tagged or statically set to a voice VLAN, follow this KB article: Technical Tip: Send a tagged VLAN via RADIUS FortiNAC must first authenticate the device. Otherwise, it will not receive the LLDP profile. FortiNAC must send the following 3 Attributes in the Access-Accept packet: > tf /var/log/radius/radius.log Wed Aug 10 19:57:13 2022 : Debug: (8) Sent Access-Accept Id 8 from 192.168.x.x:1812 to 192.168.x.x:34708 length 0 Wed Aug 10 19:57:13 2022 : Debug: (8) Tunnel-Type = VLAN Wed Aug 10 19:57:13 2022 : Debug: (8) Egress-VLAN-Name = "1voicenac" <- VLAN 120 and 1 for tagged VLAN. Wed Aug 10 19:57:13 2022 : Debug: (8) Tunnel-Medium-Type = IEEE-802 Wed Aug 10 19:57:13 2022 : Debug: (8) Finished request Important Note. RADIUS Access-request will always be sent from the FortiSwitch even if it is managed by FortiGate, so make sure to allow RADIUS traffic between FortiSwitch and FortiNAC. FortiSwitch 802.1x status: S108 # diagnose switch 802-1x status port2 port2 : Mode: mac-based (mac-by-pass enable)            Link: Link up            Port State: authorized: ( )            Dynamic Allowed Vlan list: 120 <---- Assigned by FortiNAC via 'Egress-VLAN-Name' attribute (example: Egress-VLAN-Name = "1voicenac")            Dynamic Untagged Vlan list: 188 <---- Assigned by FortiNAC via 'Egress-VLAN-Name' attribute (example: Egress-VLAN-Name = "2vlan188") or via (Tunnel-Private-Group-Id = 188).            EAP pass-through : Enable            EAP egress-frame-tagged : Enable            EAP auto-untagged-vlans : Enable            Allow MAC Move : Disable            Dynamic Access Control List : Disable            Quarantine VLAN (4093) detection : Enable            Native Vlan : 50 <----- Native VLAN is not changed via RADIUS             Allowed Vlan list: 120,120,188 <----- VLAN 120 is assigned by FortiNAC, while 120 is assigned by the LLDP profile.            Untagged Vlan list: 188            Guest VLAN :            Auth-Fail Vlan :            AuthServer-Timeout Vlan :            Switch sessions 1/80, Local port sessions:1/20            Client MAC Type Traffic-Vlan Dynamic-Vlan            80:5e:c0:xx:xx:xx MAB 120 0 <----- LLDP voice profile applied VLAN 120.            Sessions info:            80:5e:c0:xx:xx:xx Type=MAB,,state=AUTHENTICATED,etime=3,eap_cnt=0                   params:reAuth=3600   Important note: FortiNAC will register the device (Think of this part as Authentication). Whatever is sent by FortiNAC, the FortiSwitch will not care, and it will apply the LLDP profile assigned to the interface to place the IP phone in Voice-VLAN (Think of this as Authorization). It is even possible to test sending a different voice VLAN ID in RADIUS AVP 'Tunnel-Private-Group-ID' to the Switch after authentication, and it is noticeable that FortiSwitch will apply the LLDP profile and ignore that VLAN (in the article, it is marked the VLAN sent by FortiNAC as green and the one assigned by LLDP as red). If FortiNAC does not register the IP-Phone (Meaning the phone remains Rogue), the switch will NOT apply any LLDP profile. Related documents: Dynamic VLAN assignment VOIP phones getting IPs from native VLAN instead of voice VLAN in FortiSwitch
