Troubleshooting Tip: Unable to add VM into FortiManager due to 'Unsupported device model'

[jasonhong]

Description	This article describes how to troubleshoot the issue when the user cannot add a VM (FortiGate-VM/FortiCarrier-VM/ FortiProxy-VM/ FortiFirewall-VM) into FortiManager.
Scope	FortiManager v7.2.10, v7.4.7, v7.6.3.

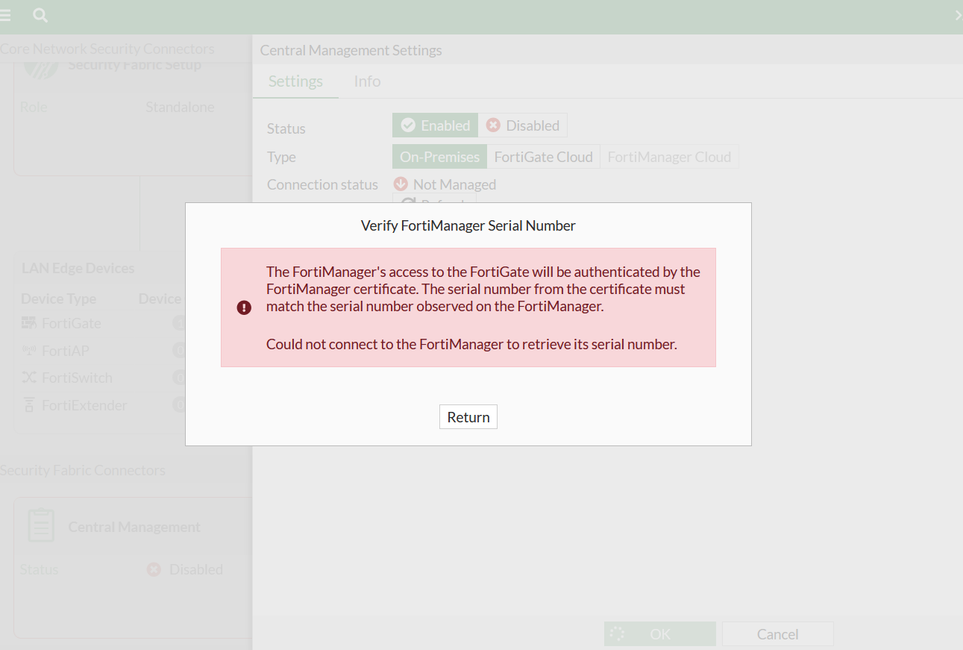

Solution	Starting from FortiManager v7.2.10, v7.4.7, and v7.6.3, the connection between VM and FortiManager is restricted for security. By default, FortiManager will not allow VM platform connection in FGFM. This applies to the following products: FortiGate-VM. FortiAnalyzer-VM. FortiCarrier-VM. FortiProxy-VM. FortiFirewall-VM. The below sample scenario shows a user attempting to add FortiGate-VM into FortiManager (v7.2.10), but is prompted with a pop-up where FortiGate-VM cannot connect to FortiManager. On the FortiManager FGFM debug, FortiManager effectively rejects the FGFM connection from the FortiGate-VM device, and a response of 'Unsupported device model' can be seen. Request [/bin/fgfmsd:3207:1]: { "client": "\/bin\/fgfmsd:3207", "id": 1, "method": "exec", "params": [{ "data": { "create_unreg": 1, "device": { "beta": -1, "branch_pt": 1706, "build": 1706, "conn_mode": 0, "dev_status": 0, "faz.perm": 15, "flags": 1, "hostname": "FortiGate-VM", "ip": "10.47.XXX.XXX", "maxvdom": 10, "mgmt_mode": 1, "mgmt_uuid": "00000000-0000-0000-0000-000000000000", "mr": 2, "name": "Tiara-kvm05", "os_type": 0, "os_ver": -1, "patch": 10, "platform_id": -1, "platform_str": "FortiGate-VM64-KVM", "sn": "FGVM01TMXXXXXX", "source": 1, "tab_status": "<unknown>", "version": 700}, "from": 1}, "url": "dvm\/cmd\/manage\/device"}], "session": -1} Response [unknown]: { "id": 1, "result": [{ "status": { "code": -20026, "message": "Unsupported device model"}, "url": "dvm\/cmd\/manage\/device"}]} To allow VM platform connection in FGFM, enter the following command in the FortiManager CLI: FMG# config system global FMG# set fgfm-allow-vm enable FMG# end Note: The FortiGate tries to register with the FortiManager cloud, but if the fgfm-deny-unknown setting is enabled, the FortiManager Cloud cannot accept the request from the FortiGate. Disable the fgfm-deny-unknown on the FortiManager Cloud. (global)# set fgfm-deny-unknown disable (global)# end Subsequently, FortiManager will allow the FGFM connection from the respective VM device, and the VM device will appear under the Unauthorized List in FortiManager Device Manager. Users can then authorize the VM device to be fully managed by FortiManager. Related article: Troubleshooting Tip: How to troubleshoot connectivity issues between FortiGate and FortiManager
