Description


This article describes the SD-WAN monitor feature and how to troubleshoot the issues related to them.

Solution


After the configuration of the SD-WAN template, the units added in the template can be monitored by
Device Manager -> SD-WAN -> Monitor.

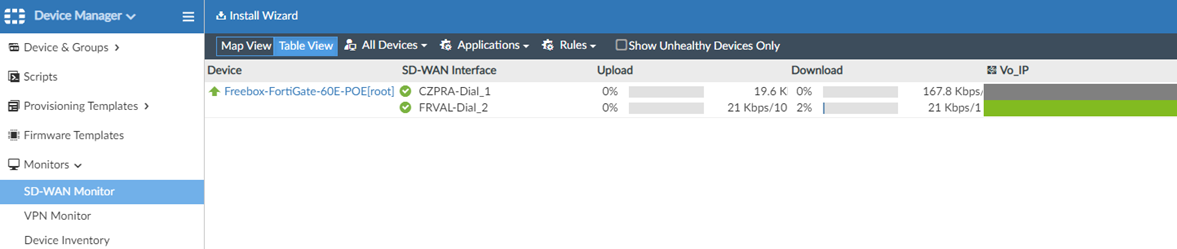

  • The data can be monitored in 2 ways: 'Map View' and 'Table View'.










  • By default the historical data is disabled. By enabling 'sdwan-monitor-history' historical data of the last 8 days can be fetched.

config system admin setting
    set sdwan-monitor-history enable
end



Troubleshooting.

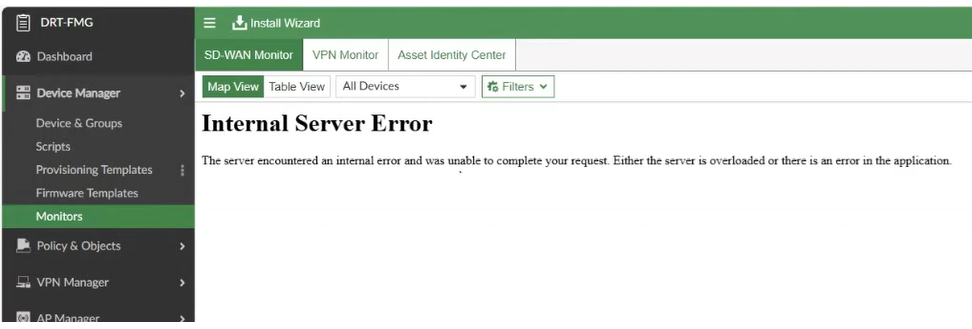

  • For issues in the Map view visibility, first, verify if it is possible to reach the map server:

diagnose system mapserver test



Example output:



*   Trying 208.91.114.183:443...
* TCP_NODELAY set
* Connected to mapserver.fortinet.com (208.91.114.183) port 443



If the map server is not reachable, ensure the DNS is resolving the domain and the port is open and allowed.



  • Make sure in the FortiGate, the below settings are configured:
  1. From FortiGate CLI.

    Performance SLA logs are generated at a specific time period as defined by the below commands:

    config system virtual-wan-link
        config health-check
            edit <name>
                set sla-fail-log-period 30
                set sla-pass-log-period 60
            next
        end
    end

    Also verify whether the monitored interface is set with the role of WAN. Go to Network -> Interfaces -> Edit -> Role -> WAN and select 'Apply'.

  2. FortiManager Debug Chrome and CLI:

    FortiManager/FortiAnalyzer Debugger 5.0

    config system dm
        set fgfm-sock-timeout 90
        set fgfm_keepalive_itvl 30
    end

Then restart the fgfm tunnel:

diagnose sys process killall fgfm



FortiManager Debug:



diag debug reset

diagnose debug service sys 255

diag debug en

refresh the problematic SDWAN page

diag debug disable
