Troubleshoot Tip: VPN configured via VPN Manager fails to install with error 131 datasrc invalid an interface IP is 0

Description This article explains how to troubleshoot FortiManager when install validation fails with 'error: 131 datasrc' invalid an interface IP is 0 for VPN configured via VPN Manager.
Scope FortiManager, VPN Manager.
Solution

After configuring the VPN in VPN-Manager install validation fails with the error:






The reason for failure is that to newly added peer FortiGate to VPN Manager has a dynamic IP address ( i.e. mode is set to DHCP) on the interface used as VPN Interface.






This can be resolved in two ways:

  1. Set public_ip in the VPN-Manager.
  2. Use Dynamic DNS on FortiGate Interface (recommended).



  1. Set public_ip in the VPN-Manager:

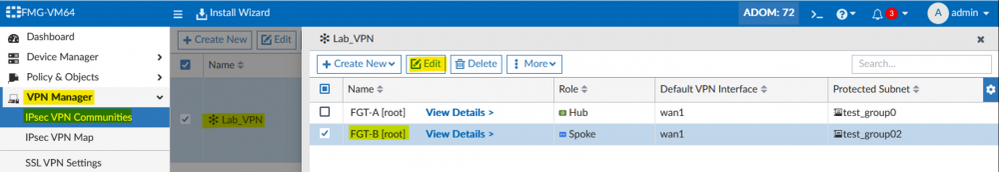

  • Go under VPN-Manager -> IPSec VPN Communities, 'Right-Click' on VPN Community, Select Configure Gateways, Select the FortiGate with dynamic IP address and Select Edit:

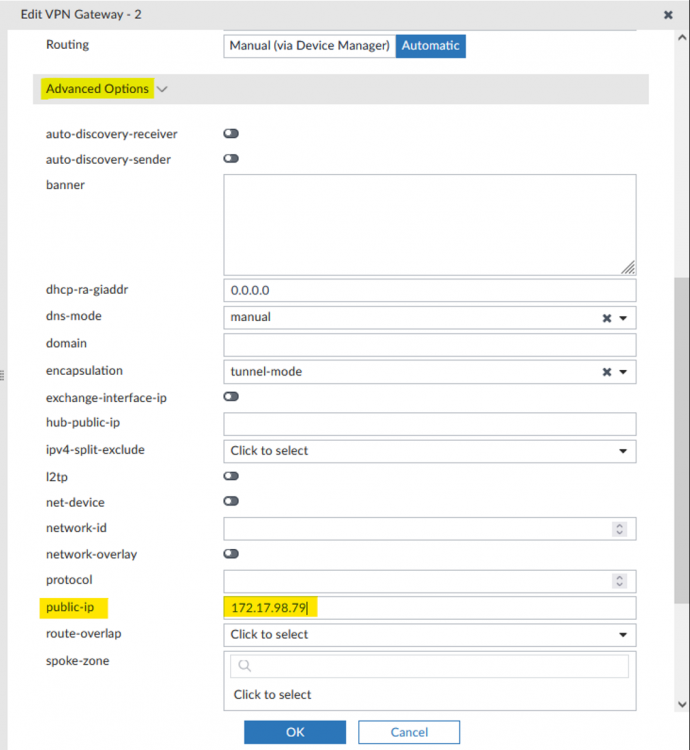

  • Expand 'Advanced Options' and set the 'public_ip' which is the DHCP reserved IP address of the FortiGate interface used for VPN:






  • Interface IP address can be obtained from FortiManager -> Device Manager -> Device & Groups, Select the FortiGate -> Network -> Interfaces OR from the FortiGate -> Network -> Interfaces.
  • Use the Install Wizard to push the config to FortiGate.

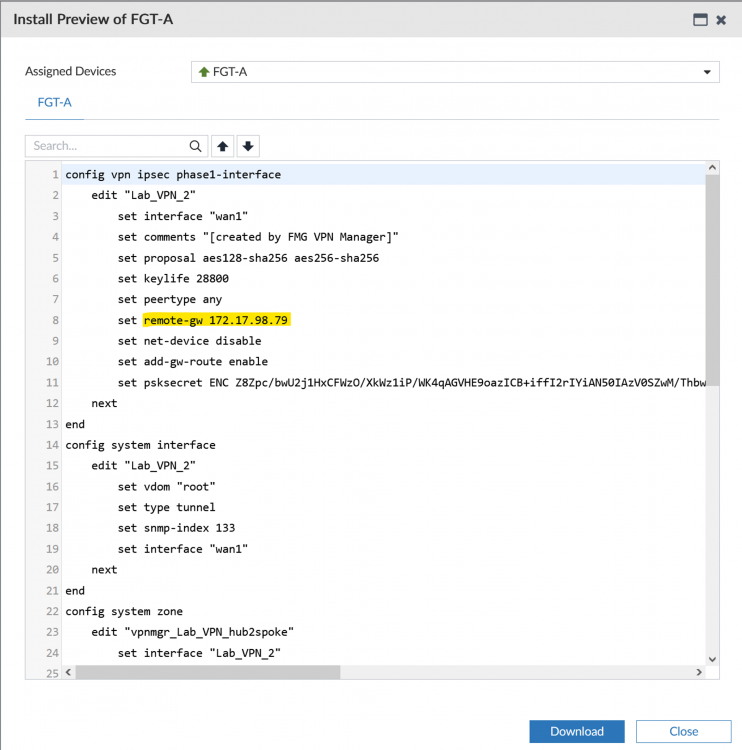

  • Install config now does not give the error and the remote-gw IP is present:






  1. Use Dynamic DNS on FortiGate Interface:
  • This can also be set in FortiManager -> Device Manager -> Device & Groups, Select the FortiGate with dynamic IP -> Network -> DNS, Enable FortiGuard DDNS, create Dynamic DNS entry, and then, push the change to the FortiGate.
  • In FortiManager using the Install Wizard push the VPN config to the FortiGate.
    • Install validation does not give any error.
    • remotegw-dns has now the Domain of the interface used as the VPN interface used on the peer FortiGate.






Related documents:

VPN Manager

DDNS Support

Displaying the device database
