When pushing policy package/device settings to managed FortiGate, the following error may occur:
This may be caused by conflicting configurations for dnsfilter profile on both FortiGate and FortiManager.
Typically, it is possible to resolve this by performing Retrieve Config followed by Import Configuration. Refer to the following article for the step-by-step troubleshooting process:
Technical Tip: How to fix synchronization issue in FortiManager
In case the Retrieve Config does not resolve this issue, it is possible to clone the dnsfilter profile on FortiGate and import the newly created profile to FortiManager to synchronize the device-level settings.

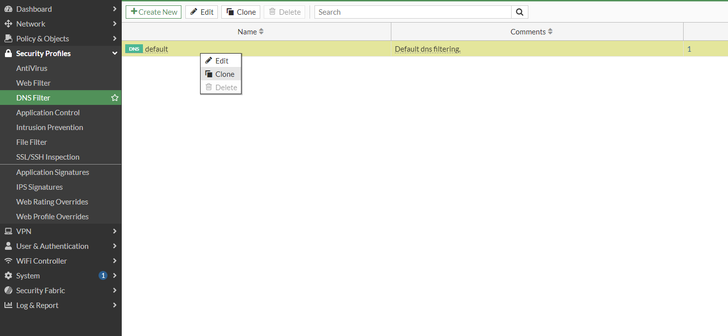

- Login to FortiGate with Read-Write permission, go to Security Profiles -> DNS Filter, 'right-click' the profile with conflict, and select Clone.
-

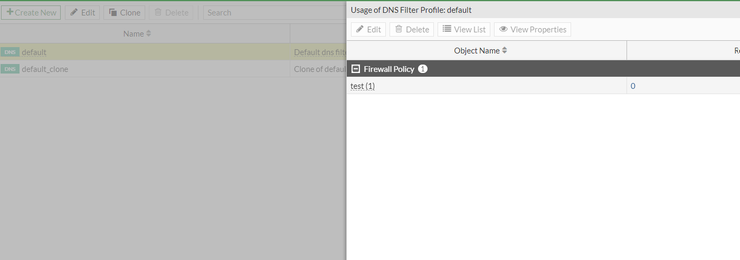

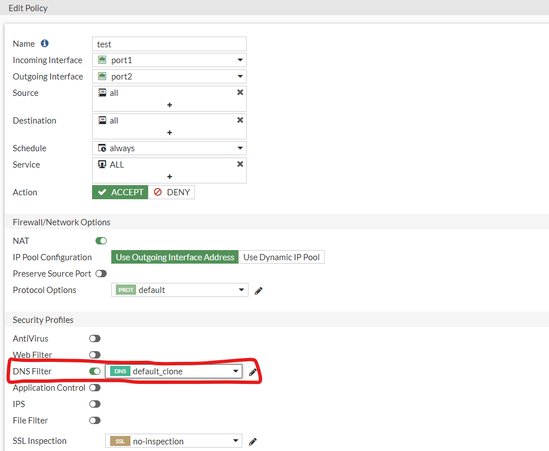

Select the number under the Ref. column to see which firewall policies are referencing the offending dnsfilter profile. Configure the firewall policies to use the newly cloned dnsfilter profile.
-

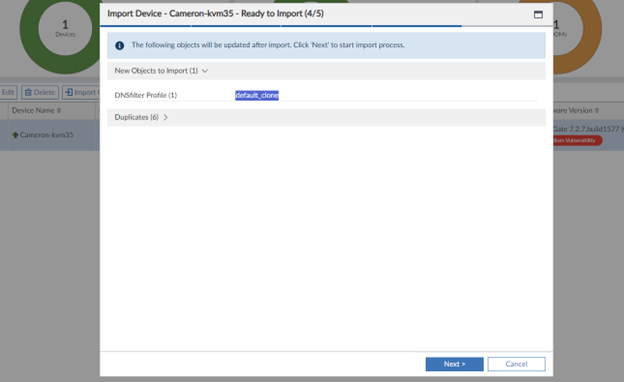

Go back to FortiManager and perform a Retrieve Config and Import Configuration to import the cloned dnsfilter profile into the ADOM database.
-

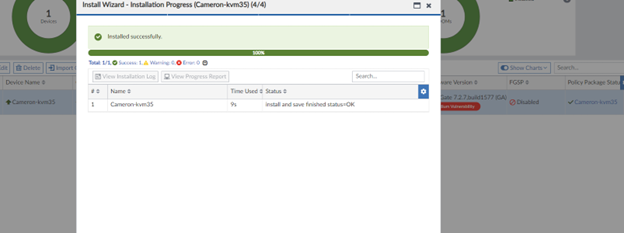

It should now be possible to install Policy Package/Device Settings successfully without error.
-
Troubleshooting steps:
Download the Installation logs to more easily identify the exact reason for the error.
To get detailed information, run the following command after connecting to FortiManager with SSH:
diag debug application securityconsole 255
diag debug enable
For further troubleshooting, gather the following debug information from FortiManager when trying to push the configuration and attach it to the ticket when contacting TAC.
On the FortiManager:
diagnose debug application securityconsole 255
diag debug app depmanager 255
diagnose debug application fgfmsd 255 <fgt device name>
diagnose debug enable
diagnose debug time enable
On the FortiGate:
exe tac report
diagnose debug application fgfmd 255
diagnose debug cli 255
diagnose debug console time enable
diagnose debug enable
