Description

This article explains the behavior when utilizing Cloudflare DNS as FortiGate's DNS server.

Scope

FortiGate.

Solution

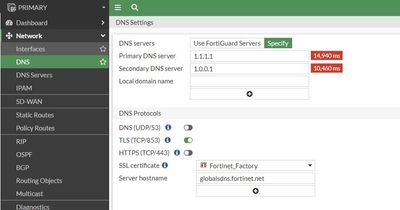

When utilizing a third-party DNS server such as CloudFlare (1.1.1.1 & 1.0.0.1) in FortiGate and selecting TLS as the DNS Protocol, it will show as 'Unreachable'. As a result, FortiGate will not be able to resolve the hostname.

This is due to the server hostname mismatched with the DNS server IPs selected. To resolve this, it is needed to update the 'Server Hostname" under the DNS configuration.

To configure via CLI:

config system dns

set primary 1.1.1.1
set secondary 1.0.0.1
set protocol dot
set server-hostname "one.one.one.one"

end

Alternatively, enable the DNS protocol "DNS (UDP/53)" and disable "TLS (TCP/853)." This configuration allows FortiGate to resolve hostnames without needing to specify the server hostname.
