| Solution | - Check the connectivity to the RADIUS server was successful.
- Run the following debug commands and, afterwards, try to test the credentials from the FortiGate GUI:
Debug commands:
diagnose debug reset diagnose debug console timestamp enable
diagnose debug app fnbamd -1

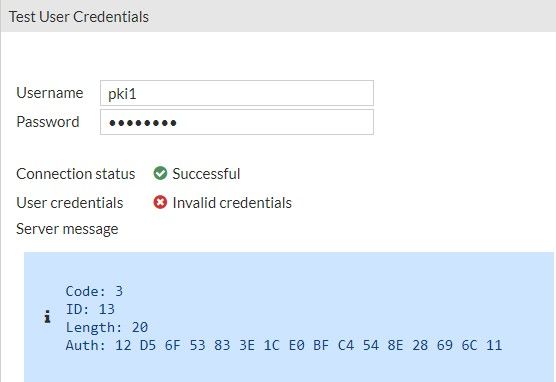

diagnose debug enable A packet capture will give additional information on what exact detail was sent, and the Access-Reject may contain a reason for the rejection. The example later will show it. The following error will be seen:
[328] __create_access_request-Compose RADIUS request
[589] __create_access_request-Created RADIUS Access-Request. Len: 99.
[1159] fnbamd_socket_update_interface-vfid is 0, intf mode is 0, intf name is , server address is 192.168.30.2:1812, source address is null, protocol number is 17, oif id is 0
[304] __rad_udp_send-oif=0, intf_sel.mode=0, intf_sel.name=
[796] __rad_rxtx-Sent radius req to server '192.168.30.2': fd=10, IP=192.168.30.2(192.168.30.2:1812) code=1 id=11 len=99
[805] __rad_rxtx-Start rad conn timer.
[765] __rad_rxtx-fd 10, state 1(Auth)
[767] __rad_rxtx-Stop rad conn timer.
[808] __rad_rxtx-
[382] __rad_udp_recv-Recved 20 bytes. Buf sz 8192
[1210] fnbamd_rad_validate_pkt-RADIUS resp code 3
[951] __rad_error-Ret 1, st = 1.
- The reason for the negative response is to be searched on the node that gives the response. In this example, the server is a Microsoft Network Policy Server (NPS), which serves as a RADIUS server.
Connect to the NPS, and navigate to Event Viewer -> Windows Logs -> Security Logs. - Filter the logs with event ID [6273] to see the Audit Failure:
- Here, it was denied because of a Network Access Permission error. This is because only a certain group is allowed, of which the user should be a part. In this example, the user group 'fgt-admin' has been granted permissions, but the user 'pki1' is not part of that group:
Below is the PCAP stating that access has been rejected from the RADIUS Server:

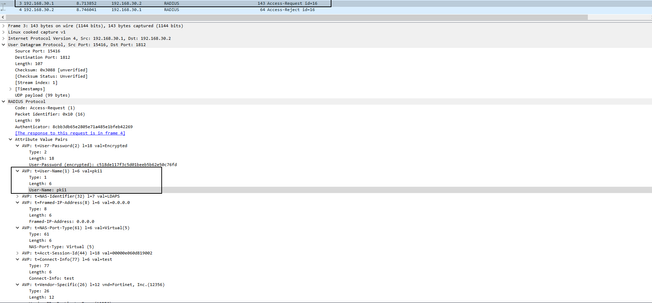

Access-Request Packet:

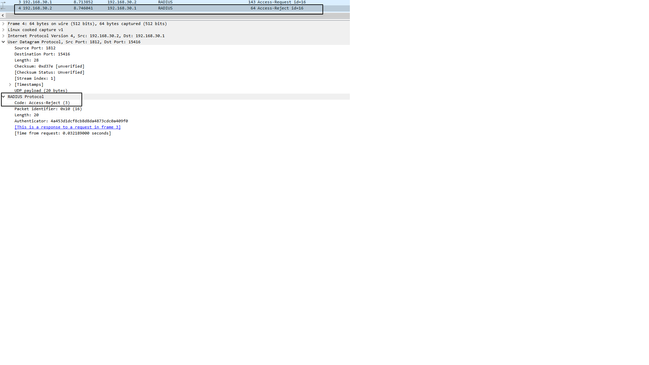

Access-Reject Packet:
- Once the user has been added to that group, test credentials will be successful:
Related article: Technical Tip: RADIUS error codes |
