Article Id 304916

This article describes how to resolve an issue where, when trying to import the private key into FortiOS (for example, an SSH proxy local-key), an error appears due to an incorrect format.

Scope FortiOS.

In Windows 10 and Windows 11, there is a built-in SSH keygen which can be used to generate the SSH public and private key pair.

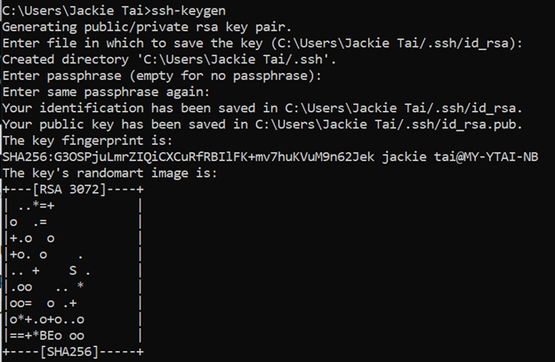

  • Open CMD in Windows and enter ssh-keygen:




  • Generated keys will be saved under the C:Users\username\.ssh\ path by default. This can be modified as needed.
  • Enter the password for the private key and save it somewhere. It will be used when importing the private key into FortiOS.
  • A key created with the default settings in Windows 10 is sha256 with RSA 3072-bit.
  • Different key algorithm are also available. See the GitHub docs for more information.
  • Two files will be generated:



  • The first file is a private key and the second file is a public key.
  • Use Notepad++ to open the file and copy it to FortiOS in the following configuration:

config firewall ssh local-key

edit <name>

set password {password}  <- The private key password.

set private-key {user}   <- Private key.

set public-key {user} <- Public key.

set source [built-in|user]



  • Enter the public key with opening and closing quotation marks ("").



  • Enter the private key with opening and closing quotation marks ("").
  • Note the error below:



  • This is due to the private key format generated having multiple break lines. The '>' symbol indicates a break line.
  • FortiOS can only accept the key format in a single line.
  • Remove the break line in-between for the private key and paste it again.



  • The private key is now setup successfully.
  • To view the full SSH key setting, run the 'get' command.
