Troubleshooting Tip: 'Bad Request' when trying to connect to SAML SSO Login

Description This article describes the possible reasons for SSL VPN connection with SAML authentication when the error 'Bad Request' appears with Azure or DUO or any other Identity provider (IDP).
Scope FortiGate.
Solution

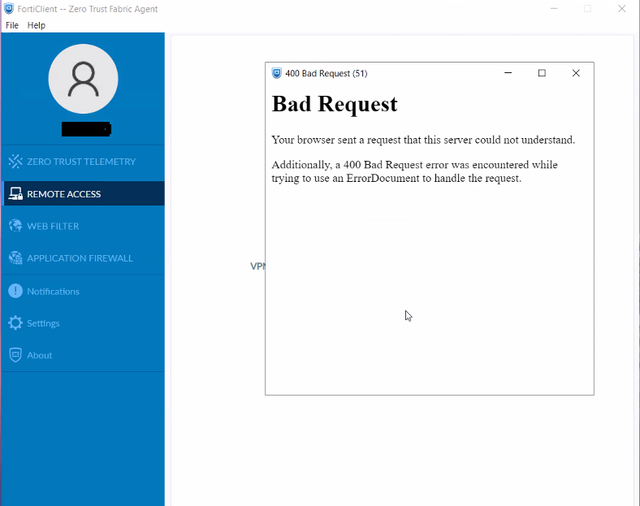

When trying to connect to the SSL VPN with SAML authentication, the error 'Bad request' appears using FortiClient.



Kb 8.3.png

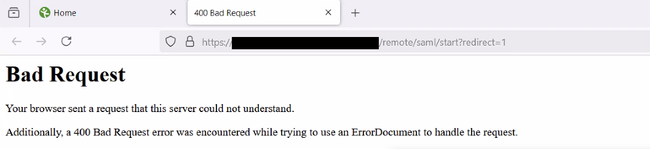

Or, when trying to connect with the option 'use external browser as user agent for saml login' checked in the FortiClient, it shows like this:



Kb 8.1.png



This issue can happen if the SAML is not configured properly the FortiGate. This can be verified by checking the debugs on a FortiGate CLI session.



diag debug application sslvpn -1

diag debug application samld -1

diag debug console timestamp enable

diag debug enable            <- Starts the debugs.



diag debug reset

diag debug disable           <- Stops the debugs.

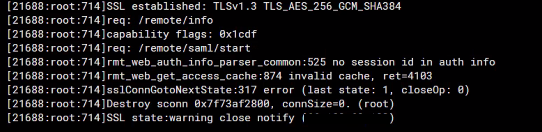

The debugs show that the SAML is not redirecting and it stops immediately as it starts.



 Kb 8.5.png



This issue often happens if the SAML is not specified as a member in the user group under 'config user group'.

First, make sure the 'config user saml' is properly configured without any typos or spaces in the URLs.



config user saml

    edit "SAML"

        set cert " Fortinet_Factory"

        set entity-id "https://<IP-or-FQDN:443>/remote/saml/metadata/"

        set single-sign-on-url "https://<IP-or-FQDN:443>/remote/saml/login/"

        set single-logout-url "https://<IP-or-FQDN:443>/remote/saml/logout/"

        set idp-entity-id "<DUO-Entity-ID-URL >"

        set idp-single-sign-on-url "<DUO-Single-Sign-On-URL>"

        set idp-single-logout-url "<DUO-Single-Log-Out-URL>"

        set idp-cert "REMOTE_Cert_1"

        set user-name "Username"

        set group-name "Group"

        set digest-method sha1

    next

end



After, the 'config user group' should specify this SAML as shown below:



Kb 8.6.PNG



Or from the CLI:



config user group

    edit "SAML_grp"

        set member "SAML"

        next

    end

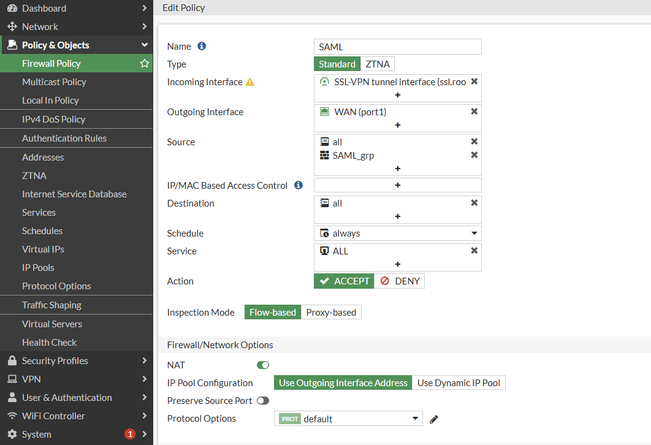

Also, make sure this user group is specified in the policy.



Kb 8.7.PNG



This error can also occur if the IdP certificate is incorrect. Ensure that the correct certificate is uploaded and selected in the SSO connection settings.
