| Solution |
FortiGate used to fetch the category check verdict for any URL from FortiGuard servers. In case FortiGuard category-based filters are used in a web filter profile, the action is taken based on the above response.
The example is taken from Yahoo.com.

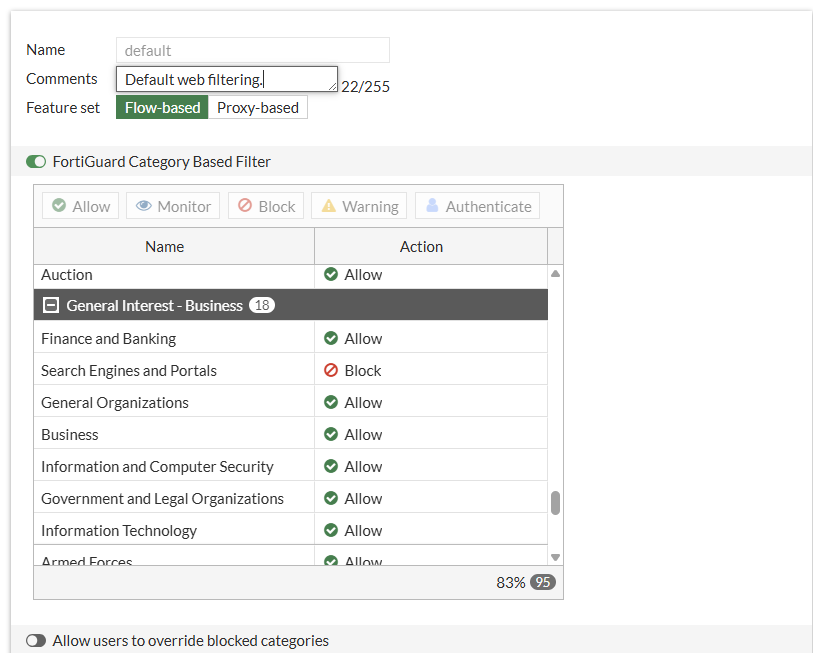

Below is the web filter configuration:
URL Filter debug can be used to identify the verdict and category check:
diagnose ips debug enable urlfilter
diagnose debug enable
# [28687@2229]ips_ssl_prepare_urlfilter: sni(verified:1):'dns.google' sni_server_ip:0 cn:'dns.google'
[28687@2229]ips_detect_user_category: no vdom dbs of vdom:0
[28687@2229]urlf_query_fgd: id:35 sess:2229 action:0 error:0 src:2 host:dns.google url:/ rate_ip:0 ssl_exemption_query:0
[28687@2229]handle_fgd_answer: sess:2229, id:0, action:0, resume:0, error:0, ftgd_category:52, url_category:52, local_category:0, byip:0, log:0, time:0s
[28687@-1]ips_ssl_prepare_urlfilter: sni(verified:1):'s.yimg.com' sni_server_ip:0 cn:'*.fantasysports.yahoo.com'
[28687@-1]ips_detect_user_category: no vdom dbs of vdom:0
[28687@-1]urlf_query_fgd: id:36 sess:2230 action:0 error:0 src:2 host:s.yimg.com url:/ rate_ip:0 ssl_exemption_query:0
[28687@-1]handle_fgd_answer: sess:2230, id:0, action:1, resume:0, error:0, ftgd_category:41, url_category:41, local_category:0, byip:0, log:1, time:0s
[28687@-1]on_rating_done: sess 2230, rate 41, action 1
[28687@-1]ips_eng_log_webfilter: sess:307844136 type:10 action:1 host:s.yimg.com source:2 url:/
[28687@2231]ips_ssl_prepare_urlfilter: sni(verified:1):'geo.yahoo.com' sni_server_ip:0 cn:'yahoo.com'
[28687@2231]ips_detect_user_category: no vdom dbs of vdom:0
[28687@2231]urlf_query_fgd: id:37 sess:2231 action:2 error:0 src:2 host:geo.yahoo.com url:/ rate_ip:0 ssl_exemption_query:0
[28687@2231]ips_urlf_add_query: id:37, queue:1, ssl_exemption: 0
[28687@2231]urlf_query_fgd: session:2231 suspended, query id:37
[28687@-1]urlf_on_timeout: pruned 0
[28687@-1]handle_fgd_answer: sess:2231, id:37, action:0, resume:1, error:0, ftgd_category:52, url_category:52, local_category:0, byip:0, log:0, time:0s
[28687@-1]on_rating_done: sess 2231, rate 52, action 0
[28687@-1]ips_urlf_del_query: id:37, queue:0
[28687@2232]ips_ssl_prepare_urlfilter: sni(verified:1):'yahoo.com' sni_server_ip:0 cn:'yahoo.com'
[28687@2232]ips_detect_user_category: no vdom dbs of vdom:0
[28687@2232]urlf_query_fgd: id:38 sess:2232 action:0 error:0 src:2 host:yahoo.com url:/ rate_ip:0 ssl_exemption_query:0
[28687@2232]handle_fgd_answer: sess:2232, id:0, action:1, resume:0, error:0, ftgd_category:41, url_category:41, local_category:0, byip:0, log:1, time:0s
[28687@2232]on_rating_done: sess 2232, rate 41, action 1
[28687@2232]ips_eng_log_webfilter: sess:307844345 type:10 action:1 host:yahoo.com source:2 url:/
[28687@2232]ips_set_pkt_urlf_verdict: action=DROP
#get webfilter categories | grep 41
41 Search Engines and Portals
In the above debug,the category information for Yahoo.com is sent from FortiGuard servers and accordingly, the action was taken by the IPS engine.
Below is the web filter override configuration and URL filter debug to understand the flow:
diagnose ips debug enable urlfilter
diagnose debug enable
[28687@-1]ips_ssl_prepare_urlfilter: sni(verified:1):'yahoo.com' sni_server_ip:0 cn:'yahoo.com'
[28687@-1]match_user_category_vdom: Lookup db:0x7f83c82f70c0 cate:140 in vd:0
[28687@-1]match_user_category_vdom: 'yahoo.com' matched ucate:140 in vd:0
[28687@-1]handle_fgd_answer: sess:4092, id:0, action:1, resume:0, error:0, ftgd_category:0, url_category:140, local_category:140, byip:0, log:1, time:0s
[28687@-1]on_rating_done: sess 4092, rate 140, action 1
To check what is category 140 use below:
get webfilter categories | grep 140
140 custom1 <----- This is a local custom category.
In the above debug ftgd_category information can be seen as 0, and it was blocked by local_category with the web rating override custom category.
Override category block works even if there are FortiGuard rating errors.
Make sure that the entry was fetched from the web filter cache using the below:
diagnose webfilter fortiguard cache dump <----- Search for the mentioned URL in this output.
Note:
A static URL filter can also be used to exempt a specific website part of a blocked category on the FortiGuard category-based filters. Refer to the following article: Technical Tip: Using a static URL filter feature to allow/block web sites.
