Technical Tip: Unable to get information via REST-API using Python/CURL when post-login-banner enabled

[kcheng]

Description	This article describes the failure of administrator to obtain information on FortiGate via REST-API using Python/CURL when post-login-banner is enabled.
Scope	FortiGate, REST-API.

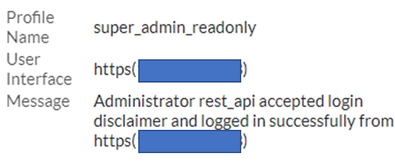

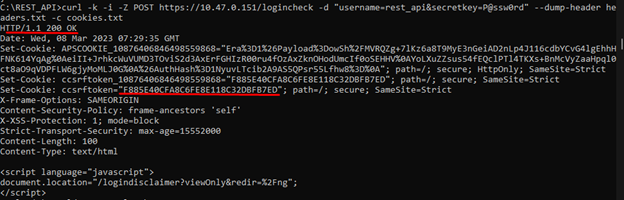

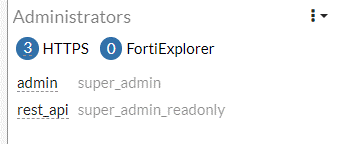

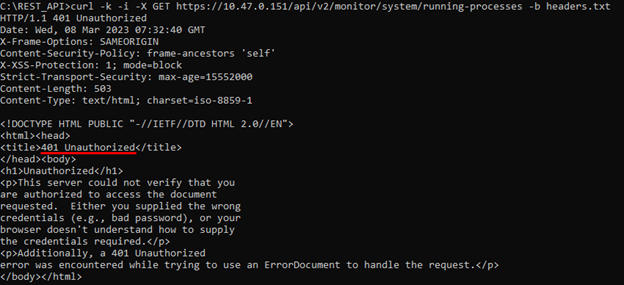

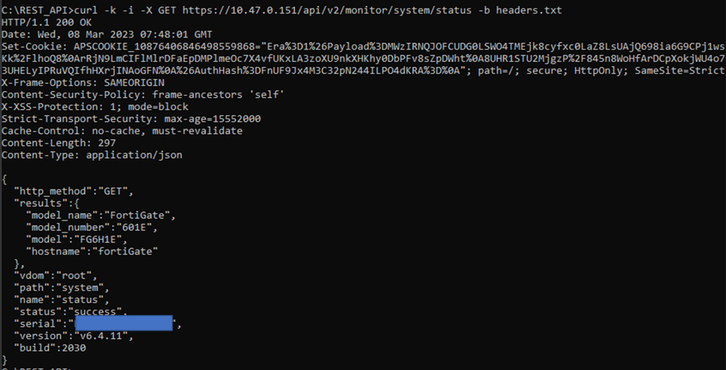

Solution	1) FortiGate is configured with a pre-login-banner and post-login-banner: # config system global     set pre-login-banner enable     set post-login-banner enable end An administrator account with super_admin_readonly is configured to obtain information about FortiGate via CURL/Python command: 2) To login to Fortigate via CURL, the following can be used: curl -k -i -Z POST https://<FortiGate_IP>/logincheck -d "username=<username>&secretkey=<password>" --dump-header headers.txt -c cookies.txt 3) It will be possible to see the response of the login as successful: 4) However, error 401 Unauthorized would appear if there is an attempt to obtain information on the FortiGate. An attempt to retrieve FortiGate system information with the following command will be executed: curl -k -i -X GET https://<FortiGate_IP>/api/v2/monitor/system/status -b headers.txt Output: 5) The admin session is recorded in FortiGate, however, there will be no log indicating that the user logged in: 6) When logging into the web GUI via HTTPS, it would be possible to log in without issue:   7) The root cause is that the authentication with CURL is not complete when post-login-banner is enabled in the global setting. 8) The following log entry indicates successful login that was performed in step 6: 9) As a solution, it will be necessary to disable post-login-banner from global setting: # config system global     set post-login-banner disable end 10) Once the above has been disabled, it would be possible to retrieve information on the FortiGate via CURL GET option: curl -k -i -X GET https://<FortiGate_IP>/api/v2/monitor/system/status -b headers.txt 11) In the system event log, the login event  will be observed accordingly: Note: This is expected behavior as the administrator login would only be considered complete after acknowledging the post-login-banner if the respective is being configured.
