Technical Tip: Two options to check Security Fabric Physical Topology and Logical Topology from FortiGate GUI

Description This article describes options to check Security Fabric Physical Topology and Logical Topology from FortiGate GUI.
Scope FortiGate
Solution

To check security fabric physical topology and logical topology from the FortiGate GUI:

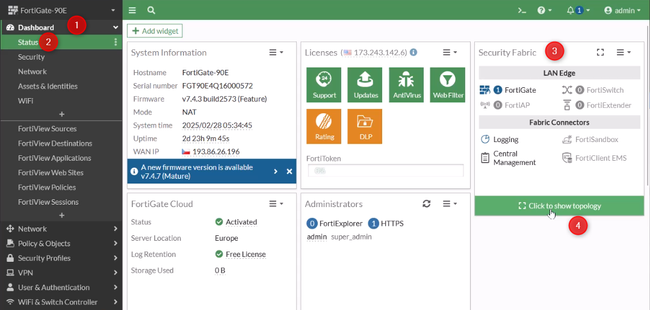

Option 1: FortiGate Dashboard -> Status -> Security Fabric -> Hover on 'Security Fabric' pane -> 'Click to show topology'.

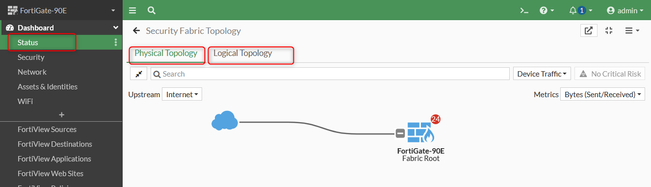

Option 2:

Security Fabric -> Physical Topology.
Security Fabric -> Logical Topology.






Related articles:

Technical Tip: Enable Physical and Logical Topology in Fabric View

Topology - FortiGate v7.6.2 administration guide
