Description



This article describes how to redistribute BGP routes learned through different BGP Communities into OSPF. This solution requires FortiOS 6.4.3 or above (Bug ID# 644461).



Scope



FortiGate.



Solution



Consider the following example case:






- ROUTER 1 and FortiGate are in a BGP neighborship with ROUTER 1 advertising 192.168.233.0/24 to FORTIGATE using BGP-COMMUNITY: 6500:100 and 192.168.234.0/24 using BGP-COMMUNITY: 6501:101.



- FORTIGATE and ROUTER 2 are in OSPF Neighborship with each other.



- It is only desirable that BGP routes learned using BGP-COMMUNITY: 6500:100 be redistributed into OSPF.



1) Since BGP-COMMUNITY is specific to BGP protocol, it is not possible to use BGP-COMMUNITY to filter BGP routes to be redistributed into OSPF directly, but it is possible to use tags to tag the incoming routes learned using BGP-COMMUNITIES and then use the tags to redistribute the BGP routes into OSPF.

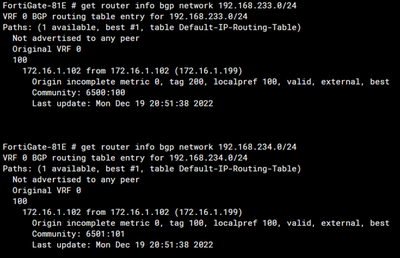

2) In the above example, verify the routes associated with the BGP community using the following command:



# get router info bgp network <route learnt>






3) Now, add an inbound route map on the BGP configuration on the FORTIGATE to tag the routes learned through BGP-COMMUNITY '6500:100' with a value of '200' and tag the routes learned through BGP-COMMUNITY '6501:101' with a value of '100'.



4) Add the community list and set match-action to permit for the BGP-COMMUNITIES.

# config router community-list

    edit "6500:100"

        config rule

            edit 1

                set action permit

                set match "6500:100"

            next

        end

    next

    edit "6501:101"

        config rule

            edit 1

                set action permit

                set match "6501:101"

            next

        end

    next

end



5) Create an inbound route map to tag the routes learned through their respective BGP-COMMUNITIES.



# config router route-map

    edit "inbound"

        config rule

            edit 1

                set match-community "6500:100"  <- Created above

                set set-tag 200

            next

            edit 2

                set match-community "6501:101"  <- Created above

                set set-tag 100

            next

        end

end



6) Reference the inbound route-map in the BGP configuration of the FortiGate.



# config router bgp

    set as 101

    set router-id 172.16.1.1

    config neighbor

        edit "172.16.1.102"

            set interface "lan"

            set remote-as 100

            set route-map-in "inbound"   <- INBOUND ROUTE-MAP

        next

    end

end



7) Create a route map for the routes advertised by OSPF to match-tag 200 assigned to BGP routes learned using BGP-COMMUNITY '6500:100'.



# config router route-map

    edit "outbound-OSPF"

        config rule

            edit 1

                set match-tag 200 <- use routes with tag 200 only

            next

        end

    next

end



8) Reference the route map for 'outbound-OSPF' in OSPF configuration of the FORTIGATE.



# config router ospf

    set router-id 172.16.88.1

    config area

        edit 0.0.0.0

        next

    end

    config ospf-interface

        edit "ospf"

            set interface "lan"

        next

    end

    config network

        edit 1

            set prefix 0.0.0.0 0.0.0.0

        next

    end

    config redistribute "connected"

    end

    config redistribute "static"

    end

    config redistribute "rip"

    end

    config redistribute "bgp"

        set status enable        <- Set redistribution status enable

        set routemap "outbound-OSPF"    <- Set route-map

    end

    config redistribute "isis"

    end

end

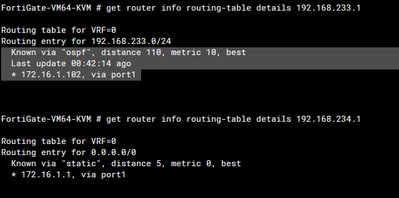

Verification:



The routing table of ROUTER 2 should only see the 192.168.233.0/24 learned via OSPF from FORTIGATE.
