| Description | This article describes an optional performance optimization on high-speed PPPoE connections that can be done via the affinity-packet-redistribution settings available in FortiOS 7.4.0 |
| Scope | FortiOS 7.4.0+. |
| Solution |
When PPPoE is enabled on an interface, the interface mode also presents potential performance issues as PPPoE frames being unsupported for acceleration by the NP6, NP6lite, NP6xlite, NP7, and NP7lite.
By default, load distribution is primarily done on interface ingress and the resulting interrupts are distributed towards available CPUs via a hash-based distribution (from whichever L2/L3/L4 headers are available).

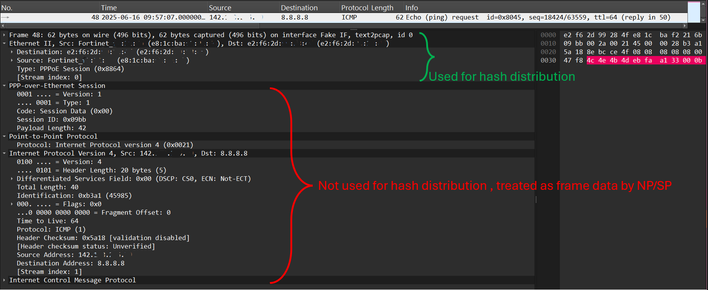

Due to the NP6, NP6lite, NP6xlite, NP7, and NP7lite not being able to understand PPPoE session frames (ethertype 0x8864) and being unable to look beyond the PPPoE/PPP headers into the IP headers situated within, only the L2 headers are used to distribute to available CPUs. The active PPPoE session would only be sourced from the modem's single MAC address towards the FortiGate interface MAC address, resulting in all ingress PPPoE packets being sent to one CPU only.

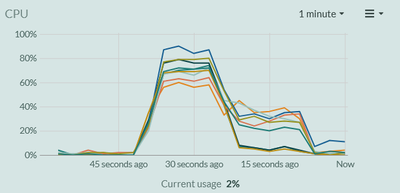

Because of this, performance will vary depending on the single-thread performance of the CPU installed in a given FortiGate.

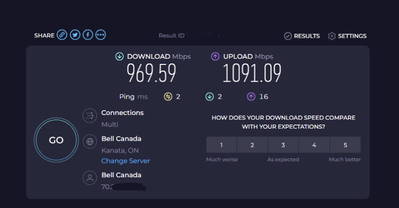

For models with X86-64 based processors (typically FG200+), this may be less of a concern depending on the speed of the service, but for an ARM-based FortiGate (SOC1,SOC2,SOC3,SOC4,SP5), the impacts can be more significant where the down-link speeds are not as expected. The CPU type can be confirmed with the following command:
From 7.4.0+ onward, it is possible to modify the load-distribution behavior of packets received on an interface from hash-based to round-robin based. This can help better utilize all of the available CPUs to handle packets in the down-link direction for interfaces in PPPoE mode.
config system affinity-packet-redistribution edit 2 set interface "x2" set round-robin enable set affinity-cpumask "ff" <----- Signifies all CPUs. next
Note that ingress packet re-ordering can occur and that some applications/protocols can be sensitive to this.Round-robin should only be used on the physical underlying PPPoE interface. Ideally the PPPoE interface should be a dedicated physical port and not an aggregate or trunk shared with other VLAN's.

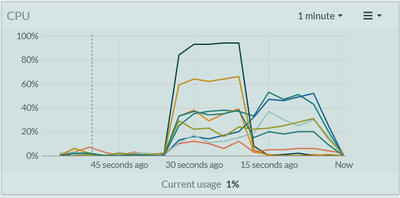

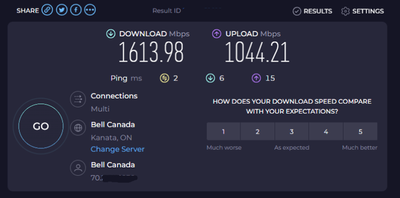

In the same environment as above with round-robin distribution, utilization is more even across all cores and the downlink speed is reached:
|
