| Solution |
- Start capture and enable filters under GUI -> Network -> Diagnostics -> Packet Captures.
Follow the steps in the article below: Troubleshooting Tip: Packet Capture on FortiOS GUI

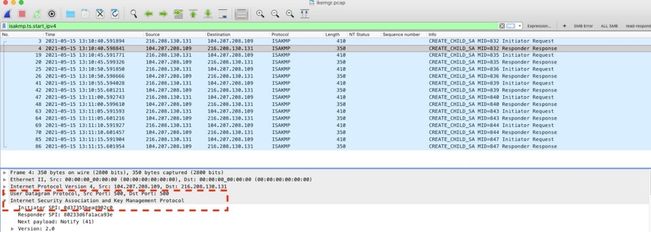

- Open the pcap file on Wireshark, Cisco Peer gateway IP address is 216.208.130.131, and FortiGate Local gateway IP address is 104.207.208.109.
- Select the Peer source IP address (216.208.130.131) and expand Internet Security Association and Key Management Protocol.

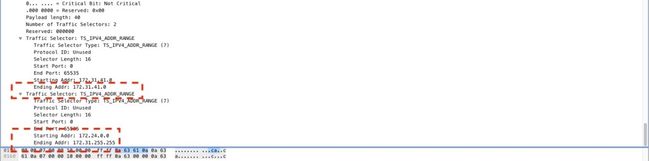

- Scroll down to Traffic Selector: TS_IPV4_ADDR_RANGE.
- Starting Addr: 172.24.0.0.
- Ending Addr: 172.31.255.255.
- This equates to: 172.24.0.0/13.
- Select the Local source IP address (104.207.208.109) and expand Internet Security Association and Key Management Protocol.
- Scroll down to Traffic Selector: TS_IPV4_ADDR_RANGE.
- Starting Addr: 172.24.0.0.
- Ending Addr: 172.27.255.255.
- This equates to: 172.24.0.0/14.

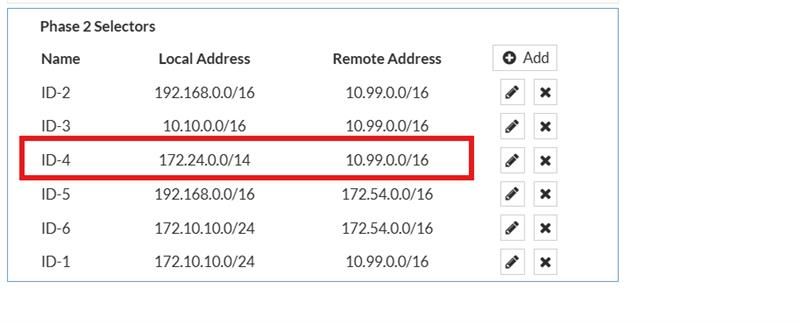

- This means that the Phase2 selector in Peer gateway is configured as 172.24.0.0/13, and Local gateway has phase2 selector 172.24.0.0/14, which is a mismatch.
IKE debug also provides similar information.
ike 0:lab:42:25: peer proposal is: peer:0:10.99.0.0-10.99.255.255:0, me:0:172.24.0.0-172.27.255.255:0
ike 0:lab:42:LB-2:25: trying
ike 0:lab:42:25: specified selectors mismatch
ike 0:lab:42:25: peer: type=7/7, local=0:172.24.0.0-172.27.255.255:0, remote=0:10.99.0.0-10.99.255.255:0
ike 0:lab:42:25: mine: type=7/7, local=0:192.168.0.0-192.168.255.255:0, remote=0:10.99.0.0-10.99.255.255:0
ike 0:lab:42:LB-3:25: trying
ike 0:lab:42:25: specified selectors mismatch
ike 0:lab:42:25: peer: type=7/7, local=0:172.24.0.0-172.27.255.255:0, remote=0:10.99.0.0-10.99.255.255:0
ike 0:lab:42:25: mine: type=7/7, local=0:172.24.0.0-172.31.255.255:0, remote=0:10.99.0.0-10.99.255.255:0
ike 0:lab:42:LB-4:25: trying
ike 0:lab:42:25: specified selectors mismatch
ike 0:lab:42:25: peer: type=7/7, local=0:172.24.0.0-172.27.255.255:0, remote=0:10.99.0.0-10.99.255.255:0
ike 0:lab:42:25: mine: type=7/7, local=0:192.168.0.0-192.168.255.255:0, remote=0:172.54.0.0-172.54.255.255:0
ike 0:lab:42:LB-5:25: trying
ike 0:lab:42:25: specified selectors mismatch
ike 0:lab:42:25: peer: type=7/7, local=0:172.24.0.0-172.27.255.255:0, remote=0:10.99.0.0-10.99.255.255:0
ike 0:lab:42:25: mine: type=7/7, local=0:172.10.10.0-172.10.10.255:0, remote=0:172.54.0.0-172.54.255.255:0
ike 0:lab:42:LB-6:25: trying
ike 0:lab:42:25: specified selectors mismatch
ike 0:lab:42:25: peer: type=7/7, local=0:172.24.0.0-172.27.255.255:0, remote=0:10.99.0.0-10.99.255.255:0
ike 0:lab:42:25: mine: type=7/7, local=0:172.10.10.0-172.10.10.255:0, remote=0:10.99.0.0-10.99.255.255:0
ike 0:lab:42:lab:25: trying
ike 0:lab:42:25: specified selectors mismatch
ike 0:lab:42:25: peer: type=7/7, local=0:172.24.0.0-172.27.255.255:0, remote=0:10.99.0.0-10.99.255.255:0
ike 0:lab:42:25: mine: type=7/7, local=0:10.10.0.0-10.10.255.255:0, remote=0:10.99.0.0-10.99.255.255:0
ike 0:lab:42:25: no matching phase2 found
ike 0:lab:42:25: failed to get responder proposal
ike 0:lab:42: error processing quick-mode message from 10.5.23.237 as responder
Related article:
Troubleshooting Tip: Packet Capture on FortiOS GUI
|
