Technical Tip: How to block SSL VPN Connection from a certain source IP Address

[darisandy]

Description	This article gives an example of how to block a certain IP address or list of IP addresses from connecting to SSL VPN without using local-in policies.
Scope	FortiGate v6.4.8 and later.

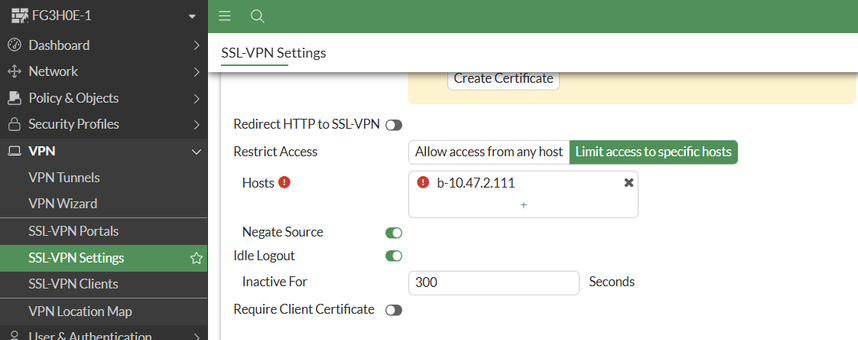

Solution	There is an option on SSL VPN setting to enable 'source-address-negate'. It is possible to create a firewall address or address group object (for a blocked IP address), and then use it in the SSL VPN Setting with negate option enabled. This way, FortiGate will only block connection attempts from this address object. Other IPs will be allowed. config firewall address     edit "b-10.47.2.111"         set subnet 10.47.2.111 255.255.255.255     next end config vpn ssl setting     set source-address "b-10.47.2.111"     set source-address-negate enable end When the user tries to connect from the 10.47.2.111 machine, the SSL VPN will be rejected. On FortiGate, it is possible to see that this machine is trying to connect, but FortiGate does not respond: diagnose sniffer packet any "host 10.47.2.111 and port 10443" 4 Using Original Sniffing Mode interfaces=[any] filters=[host 10.47.2.111 and port 10443] 7.107390 port1 in 10.47.2.111.64299 -> 10.47.2.141.10443: syn 1450279049 8.121837 port1 in 10.47.2.111.64299 -> 10.47.2.141.10443: syn 1450279049 10.137460 port1 in 10.47.2.111.64299 -> 10.47.2.141.10443: syn 1450279049 Connecting from the different machines will be allowed and connections established. get vpn ssl monitor SSL-VPN Login Users: Index User Group Auth Type Timeout Auth-Timeout From HTTP in/out HTTPS in/out Two-factor Auth 0 dani SSL_VPN_Group 1(1) 296 28736 10.47.1.189 0/0 0/0 0 SSL-VPN sessions: Index User Group Source IP Duration I/O Bytes Tunnel/Dest IP 0 dani SSL_VPN_Group 10.47.1.189 64 12469/6784 10.212.134.200 The blocks will be visible in the 'Local Traffic' logs. Enable Local Traffic Log from under Log & Report -> Log Settings. If multiple addresses should be blocked, an address group can be used for simplified management. config firewall address edit "b-10.47.2.111" set subnet 10.47.2.111 255.255.255.255 next edit "b-10.47.2.200" set subnet 10.47.2.200 255.255.255.255 next end config firewall addrgrp edit "BLOCKED-IP_SSLVPN" set member "b-10.47.2.111" "b-10.47.2.200"  next end config vpn ssl setting set source-address "BLOCKED-IP_SSLVPN" set source-address-negate enable end To add or remove members from a multi-select object, use the 'append' and 'unselect' keywords. config firewall addrgrp edit "BLOCKED-IP_SSLVPN" append member "new address to block" unselect member "address to remove from block" next end In v7.2.9, v7.4.5 and later, IP address blocks can be configured from SSL-VPN GUI. This is done by using 'Limit access to specific hosts' in combination with 'Negate Source'.
