Technical Tip: How to allow multiple VLANs in FortiGate VM deployed in vSphere

[achu]

Description	This article describes the setup of FortiGate deployed in the ESXi host and how to allow VLAN tagging.
Scope	All FortiGate.

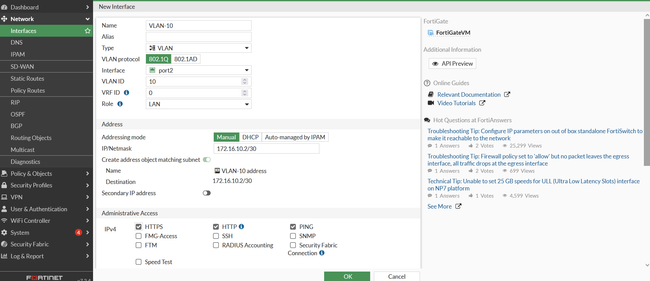

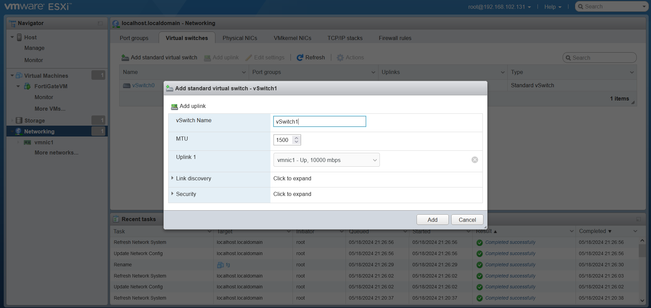

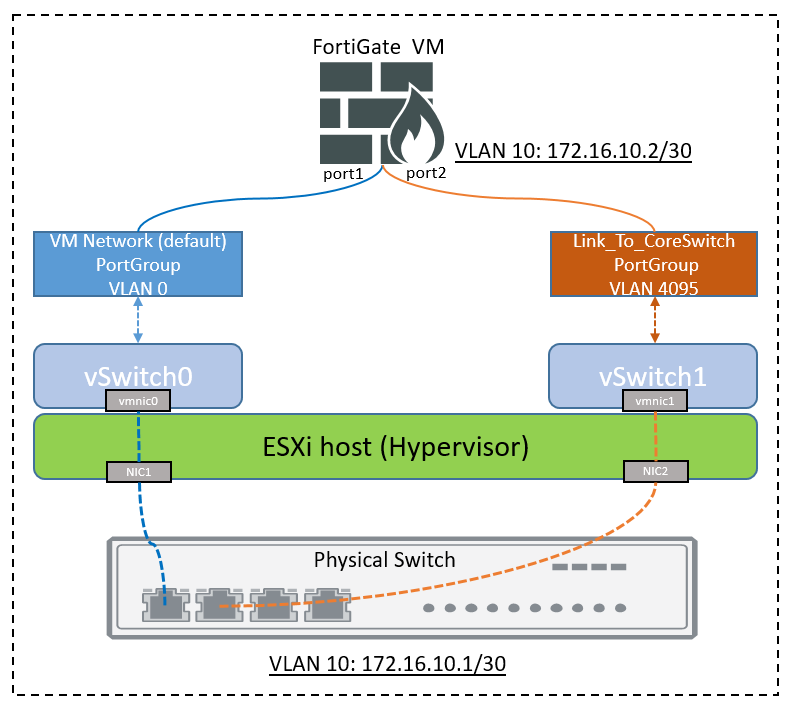

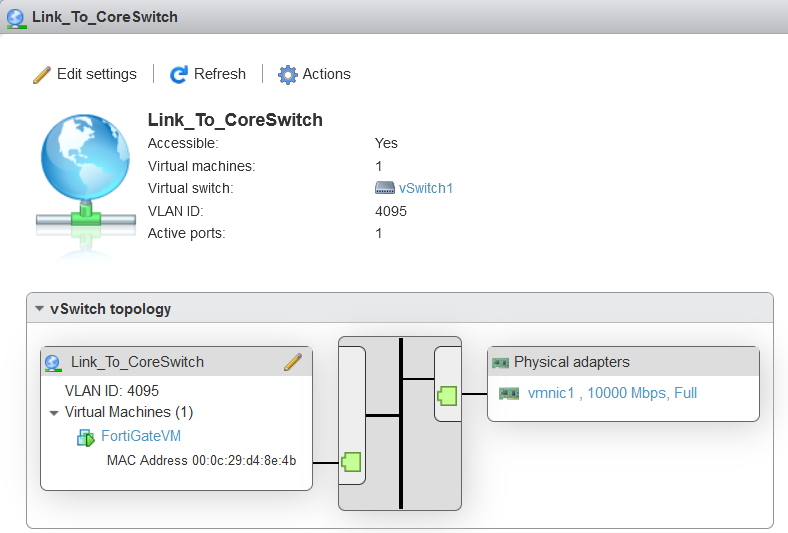

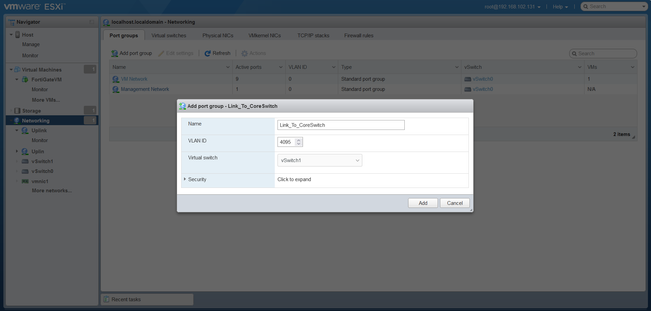

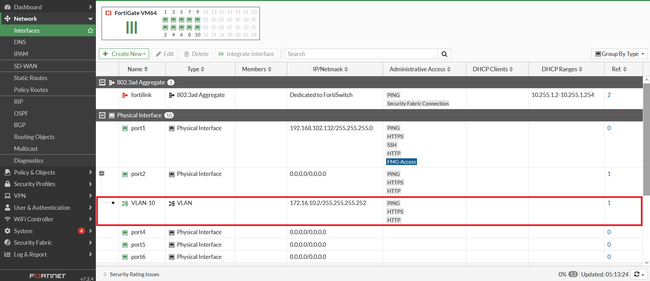

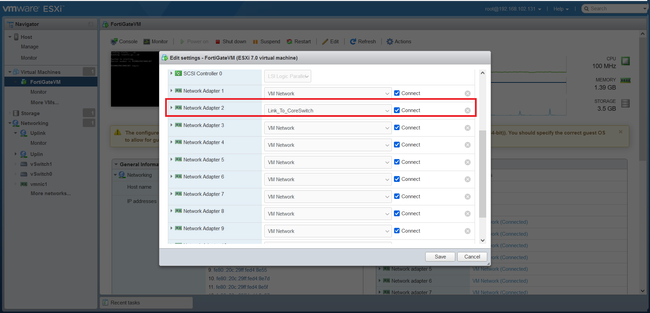

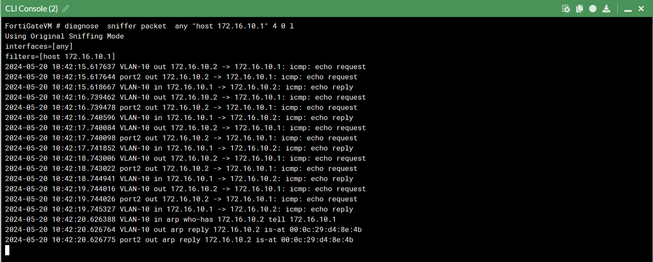

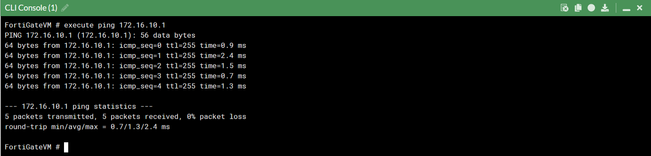

Solution	In this setup, FortiGate is deployed in the ESXi host hypervisor and the requirement is to allow VLAN tagging from FortiGate VM going to Core Switch in the network. For this to work, it is necessary to enable or activate VGT mode (Virtual Guest tagging) on the ESXi host. To activate the VGT, create a port group and assign VLAN 4095 then assign it to a standard switch. Assigning VLAN 4095 will allow all VLANs instead of just one VLAN to pass through a single link.  Note: This is applicable if using a standard switch on each ESXi host, using Center, and having a distributed switch then it is possible to implement the trunk option. Configuration of interface VLAN in FortiGate: Go to Network -> Interfaces -> Create New -> Interface -> Input the ff. details below: Name: VLAN-10 Interface: port2 VLAN ID: 10 IP Address: 172.16.10.2/30 Configuration of new standard switch in ESXi and attach the vmnic (physical interface uplink): Go to Network -> Virtual switches -> Add a standard virtual switch and name it vSwitch1. Configuration of the port group in ESXi and add to standard switch: Go to Network -> Port groups -> Add port group -> Input the ff. details below and select Add. Name: Uplink_to_CoreSwitch VLAN ID: 4095 Virtual Switch: vSwitch1 0: For untagged traffic. Specific VLAN ID (1–4094:( To assign a specific VLAN). 4095: For TRUNK mode (accepts traffic for all VLANs). Assign the port group in FortiGate network adapter 2: Go to Network -> Virtual Machines -> Select FortiGateVM -> Edit -> From Network Adapter 2 (FortiGate port 2) Select the new port group -> Save.   Configuration of trunk and interface VLAN 10 in Cisco Core Switch CLI: configure terminal interface gi0/0 switchport switchport mode trunk no shut exit vlan 10 exit interface vlan 10 ip address 172.16.10.1 255.255.255.252 no shut exit copy running-config startup-config Verification:  Ping test from FortiGate going to Core Switch interface VLAN 10 IP Address should be successful. The packet sniffer result should show traffic is passing through the VLAN 10 interface. Related document: Deploying the FortiGate-VM
