Technical Tip: High Availability Split Brain

[aadenola]

Description	This article describes what a split-brain scenario is in an HA setup and common causes.
Scope	FortiGate, High Availability.

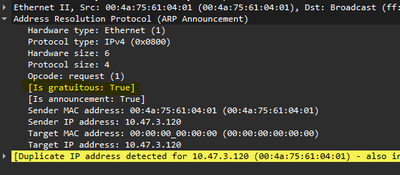

Solution	'Split-brain' is the term for when FortiGates in an HA cluster cannot communicate with each other on the heartbeat interface, causing each FortiGate to assume that it is the Primary.  When in a split-brain scenario, each unit will have the same MAC addresses, which will cause an outage in the network. Common symptoms of split-brain: When logging into each FortiGate, 'get sys ha status' in the CLI or the System -> HA tab in the GUI only shows one unit. Sessions cannot be established through the FortiGate. Traffic is dropped. When attempting to connect to the FortiGate cluster via administrative access, connections are established intermittently. Sometimes traffic will hit one FortiGate. At other times, it will hit the other. To avoid a split-brain scenario: In a two-member HA configuration, use back-to-back links (direct connection) for the heartbeat interface instead of connecting through a switch. Use redundant HA heartbeat interfaces. In a configuration where members are in different locations, ensure the heartbeat lost intervals and thresholds are longer than the possible latency in the links. See this article for more details on tuning these thresholds: Technical Tip: Changing the HA heartbeat timers to prevent false failover. Starting from v7.6.0, a backup heartbeat interface can be configured. The backup heartbeat interface is a dedicated interface used only when a secondary unit does not receive heartbeats from the primary through the regular heartbeat interfaces. Refer to the following article for a detailed explanation: Technical Tip: Mitigation of split brain issue when heartbeat interface is down. config system ha     set backup-hbdev <interface list> end Common causes of split-brain: Split-brain is usually caused by a complete loss of the heartbeat link or links. This can be a physical connectivity issue, or, less commonly, something blocking the heartbeat packets between the HA members. Congestion and latency in the heartbeat links that exceed the heartbeat lost intervals and thresholds. The slave device may be down or not able to boot up.  Congestion on the heartbeat link can be caused when using the same link for session sync. For better latency, it is recommended to use another link/interface for session sync. See this KB article for more info: Technical Tip: HA session-sync-dev configuration. If the management PC used to access the FortiGates (via GUI or SSH) is located behind a switch connected to the cluster, this MAC duplication causes intermittent or failed administrative connectivity. The switch cannot reliably forward traffic to the correct FortiGate because it sees the same MAC address being advertised on multiple ports. As a result: GUI and SSH access to the FortiGate cluster becomes erratic or fails altogether Sessions may intermittently succeed or timeout, depending on which FortiGate receives the traffic at a given time. Below are the troubleshooting steps: Identify the heartbeat port and confirm if it is up. show system ha diagnose hardware deviceinfo nic xxx  <----- Where xxx is the port name. Verify if the heartbeat ports are exchanging, sending, and receiving the Heartbeat packet. diagnose sniffer packet any "ether proto 0x8890" 4 <----- NAT/Route Mode Heartbeat. diagnose sniffer packet any "ether proto 0x8891" 4 <------ Transparent Mode Heartbeat. diagnose sniffer packet any "ether proto 0x8893" 4 <----- Configuration synchronization. To stop the sniffer, use CTRL+C. Verify HA configurations match between the HA members; settings such as HA mode, group-name, group-id, and passwords should be the same. Assuming that packets are seen going both ways on the previous step, the following debug run on each unit may have more information on why they are not able to communicate: diagnose debug reset diagnose debug app hatalk -1 diagnose debug enable If no output is generated after initiating the debug command above, restart the hatalk process by initiating the command 'fnsysctl killall hatalk'. To stop debugging: diagnose debug disable diagnose debug reset Ensure the firmware version of both units matches by running this command: get system status Verify if the heartbeat interface is flapping by running this command on each unit: diagnose sys ha history read Or check HA event logs for the 'Heartbeat device interface down' / 'Heartbeat device interface up'. For example:  date="2024-09-05" time="05:16:44" devid="FG9xxxxxxxxxxxxx" vd="root" type="event" subtype="ha" bid=200306913 csf="fabric" devintfname="ha" devname="fgc-01" dstepid=3 dsteuid=3 dvid=1066 epid=3 euid=3 eventtime=1725506204088128182 ha_role="secondary" id=7410992719520072125 level="information" logdesc="Heartbeat device interface up" logid="0108037902" logver=702081639 msg="Heartbeat device(interface) up" tz="+0200" date="2024-09-05" time="05:16:40" devid="FG9xxxxxxxxxxxxx" vd="root" type="event" subtype="ha" bid=200306912 csf="fabric" devintfname="ha" devname="fgc-01" dstepid=3 dsteuid=3 dvid=1066 epid=104 euid=3 eventtime=1725506200934159092 ha_role="secondary" id=7410992715225104424 level="critical" logdesc="Heartbeat device interface down" logid="0108037901" logver=702081639 msg="Heartbeat device(interface) down" tz="+0200" Primary: diagnose sys ha history read version=1.1 HA state change time: 2022-06-16 12:55:36 message_count=8/512 <2022-06-16 12:55:36> FGVMEVIJGWSKGW55 is elected as the cluster primary of 1 member <2022-06-16 12:55:36> member FGVMEV_FDLRD6Y15 lost heartbeat on hbdev port2 <2022-06-16 12:55:36> heartbeats from FGVMEV_FDLRD6Y15 are lost on all hbdev <2022-06-16 12:55:32> hbdev port2 link status changed: 1->0 Secondary: diagnose sys ha history read version=1.1 HA state change time: 2022-06-16 12:55:36 message_count=6/512 <2022-06-16 12:55:36> member FGVMEVIJGWSKGW55 lost heartbeat on hbdev port2 <2022-06-16 12:55:36> FGVMEV_FDLRD6Y15 is elected as the cluster primary of 1 member <2022-06-16 12:55:36> heartbeats from FGVMEVIJGWSKGW55 are lost on all hbdev Note: In the Event of Heartbeat packet loss, it will result in a split-brain state where both FortiGates send their GARP packet to the connecting network devices (Router, switch, etc). diagnose sniffer packet port1 ' ' 6 0 a This example uses port1 to showcase the behavior: As seen on the packet capture, it exhibits the IP is 10.47.3.120, which is the IP address assigned to Port1, and by right, the HA primary FortiGate should have a virtual MAC address mapped to it, but since it is in a split-brain condition, it is observed to show there is detection of duplication of this IP. Note: This capture can be taken on either of the FortiGates. Related document: Troubleshoot an HA formation
