HTTP 401 error in SSL VPN Web mode

FortiGate

FortiGate Next Generation Firewall utilizes purpose-built security processors and threat intelligence security services from FortiGuard labs to deliver top-rated protection and high performance, including encrypted traffic.

Article Id 246957

Description

This article describes what to do when having HTTP error '401 Authorization Required' through SSL VPN web mode.

Scope

SSL VPN Web mode, FortiGate.

Solution

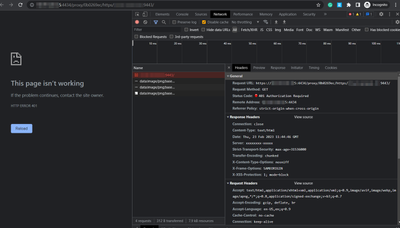

For this case, when getting HTTP error '401 Authorization Required' through SSL VPN web mode, the bookmark will be used as an example.

It should be noted that this error is not from the FortiGate. It comes from whatever Web Server the user is trying to access. It is always best to check on the Web Server or application to see why it is giving this response back.
If the Web Server is blocking the connection due to the IP not being allowed, and if the Web Server is not expecting the IP of the SSL VPN user, it is possible to prevent this information from being presented in the HTTP request.

This is the command to send the HTTP header 'as-is' from the client:

config vpn ssl setting

set header-x-forwarded-for pass

end

It is also possible to configure it as 'remove'. Try both to see which one the Web Server prefers:

Options:

pass: Forward the same HTTP header.
add: Add the HTTP header.
remove: Remove the HTTP header.
