Technical Tip : FortiGuard Flags and Meanings

FortiGate

FortiGate Next Generation Firewall utilizes purpose-built security processors and threat intelligence security services from FortiGuard labs to deliver top-rated protection and high performance, including encrypted traffic.

Article Id 206725

Description

This article describes the meanings of FortiGuard flags

Scope

Fortigate and FortiGuard

Solution

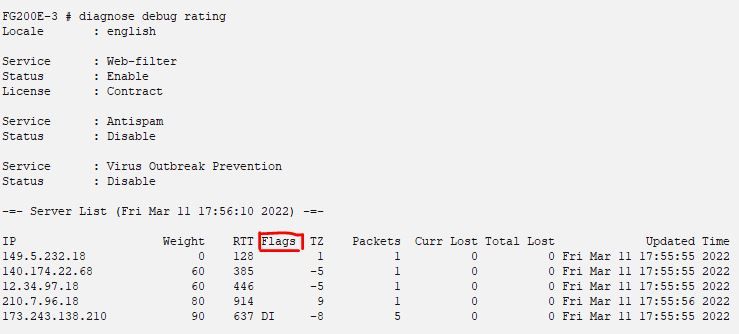

FortiGate and FortiGuard connectivity can be checked with command "diag debug rating"

Output of this command shows flags beside some servers.

I=Initial : The server initially contacted to validate the license and get server list. Usually there's only one server with this flag

D=Default : The IP address FortiGate got when resolving the name "service.fortiguard.net".

S=Serving : IP address of servers received from FortiManager.

T=Timing : The server is not replying to FortiGate queries. Server remains in this state for 15 seconds (default) before being considered as failed.

F=Failed : The server is down

5134
