Description This article describes how to allow specific users by AD group on SSL-VPN with SAML authentication.
Scope
Solution

1) Configure ADFS and FortiGate:



https://community.fortinet.com/t5/FortiGate/Technical-Tip-Configuring-SAML-SSO-login-for-SSL-VPN-web...



2) Configure Claims on AD FS:



-Go to AD FS -> Relying Party Trusts -> 'Right click' -> Edit Claim Issuance Policy -> Edit Rule.

- Select 'Token-Groups - Unqualified Names' under 'LDAP Attribute'.
- Select 'Group' under 'Outgoing Claim Type'.

- Select 'OK'.









 3) Ensure to use the correct AD group.






4) Additional FortiGate configuration.



# config user saml

    edit "adfs"
        set group-name "http://schemas.xmlsoap.org/claims/Group"
    next
end



# config user group
    edit "ADFS_Group"
        set member "adfs"
        config match
            edit 1
                set server-name "adfs"
                set group-name "sslvpn_saml"
          next
     end

next
end



# config vpn ssl setting
# config authentication-rule
    edit 1
       set groups "ADFS_Group"
       set portal "Full"
    next
end
end



Testing:

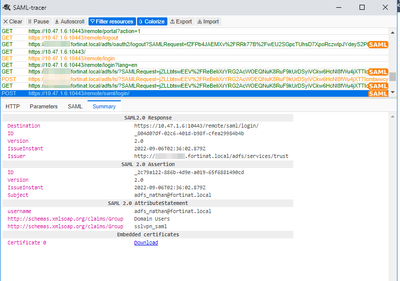

SAML attributes:






SAML debug:



samld_send_common_reply [122]: Attr: 17, 27, magic=cd82693da567030a
samld_send_common_reply [118]: Attr: 10, 40, 'username' 'adfs_nathan@fortinat.local'
samld_send_common_reply [118]: Attr: 10, 57, 'http://schemas.xmlsoap.org/claims/Group' 'Domain Users'
samld_send_common_reply [118]: Attr: 10, 56, 'http://schemas.xmlsoap.org/claims/Group' 'sslvpn_saml'
