Technical Tip: Block remote users from accessing the Internal Network out of Office hours

[MisbaN]

Description	This article describes how to block the remote users from accessing the internal resource such as servers etc. out of office hours.
Scope	FortiGate.

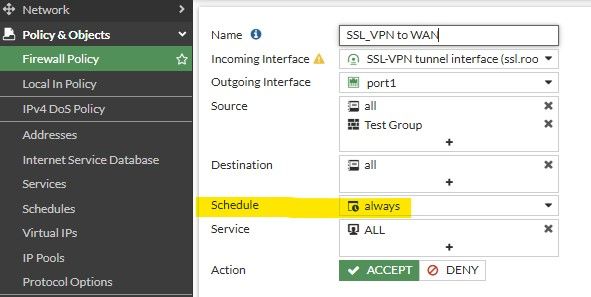

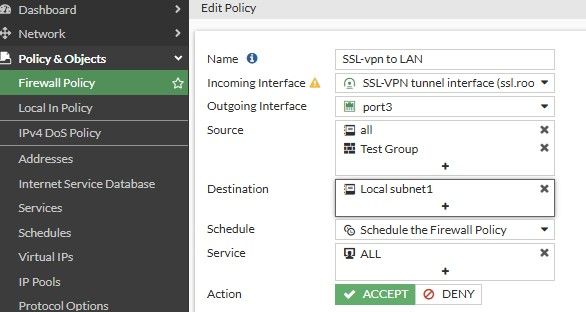

Solution	This article describes for restricting the remote users accessing the resources from the internal network out of office hours. It can beachieved in 2 ways. Either block all the connection coming from the FortiClient for the remote users after the office hours. Just by blocking the traffic when trying to access the resources from the internal network out of office hours. Configure SSL VPN following the following guide: FortiGate 7.0.6 SSL VPN In this example, SSL VPN will only be accessible from Monday to Friday from 09:00 AM to 06:00 PM every day and will be blocked during off business hours. Configure two recurring schedules. One will be for weekdays, and another will be for weekends. CLI: config firewall schedule recurring     edit "DENY-OFF-BH-MON-FRI"         set start 18:01         set end 08:59         set day  monday tuesday wednesday thursday friday     next         edit "DENY-OFF-BH-SAT-SUN"             set day sunday saturday         next   end config firewall schedule group     edit "Schedule the Firewall Policy"         set member "DENY-OFF-BH-MON-FRI" "DENY-OFF-BH-SAT-SUN"     next end GUI: For situation 1: It is expected to have a firewall policy from the ssl.root to WAN interface (as given below): Change the Schedule from 'Always' to 'Schedule the Firewall Policy'. That will block the FortiClient user from connecting to the FortiGate. Result: Users are unable to connect to the FortiGate using FortiClient. For situation 2: It is expected to have a Firewall Policy from ssl.root to LAN interface/ Internal resources (as given below). The Image brief about the firewall policy created from ssl.root to local subnet (LAN / Internal resource). As observed, the firewall is set for scheduling the traffic for local subnet from ssl-root for Test group. Results: Users are not able to access the resource, even when connected to the FortiGate using FortiClient.  For confirming if the traffic is being blocked, set the packet capture based on ssl-vpn ip pool and icmp. The traffic for SSL VPN is incoming and also trying to ping the local resource, but there is no any reply to the pings. It is possible to conclude that he traffic from internal resources is being blocked. Related articles: Technical Tip: How to permit temporary access to a site during a particular time slot Technical Tip: Configuring a Firewall Policy which is valid only at certain days or hours by using a...
