Technical Tip: Add an existing IPsec VPN tunnel to SD-WAN

Ashika17 · ‎11-01-2023

Description

This article describes how to convert an existing IPsec VPN to an SD-WAN member.

Scope

All FortiGate versions.

Solution

The example outlined in this article will demonstrate how to achieve this.

To add an 'IPerf' IPsec VPN tunnel (one that exists already) as a part of an SD-WAN network, first ensure that there no active references to that tunnel.

Below, there are 4 active references to the 'IPerf' tunnel:

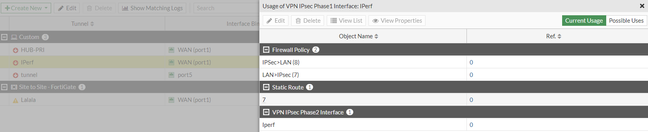

Selecting the reference section (e.g. selecting the number '4') will show the various places the VPN is being used currently. Remove the tunnel from all of those displayed references.


Here, the VPN is being used in firewall policies, the static route, and in the corresponding phase 2 setting.

Remove the 'IPerf' tunnel interface from the firewall policy and the static route initially.

(The policy/static route can be deleted, or the interface can be replaced with another dummy interface for the time being.)

To verify IPSec tunnel references via CLI, this article provides a detailed procedure.

Lastly, remove the reference to 'VPN IPsec Phase2 Interface' with the following CLI commands:

config vpn ipsec phase2-interface

delete "IPerf" <- Phase 2 name of the VPN tunnel.

end

Now, there are no active references.

Iperf(no ref).PNG

While attempting to create a new SD-WAN member, the 'IPerf' VPN shows up as a part of the available options.

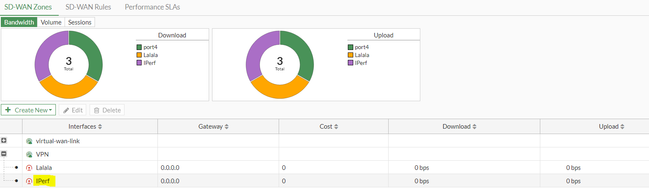

Now, the VPN tunnel interface has been added as an SD-WAN member.
