Technical Tip: Creating Application Exception for FortiClient Network Lockdown feature

[btan]

Description	This article explains how to create an Application Exception for the FortiClient Network Lockdown feature.
Scope	FortiClient EMS v7.2.1 and above.

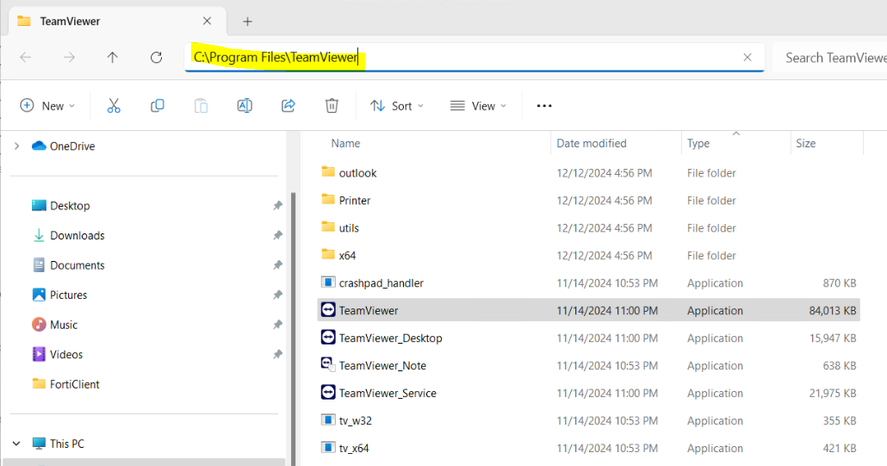

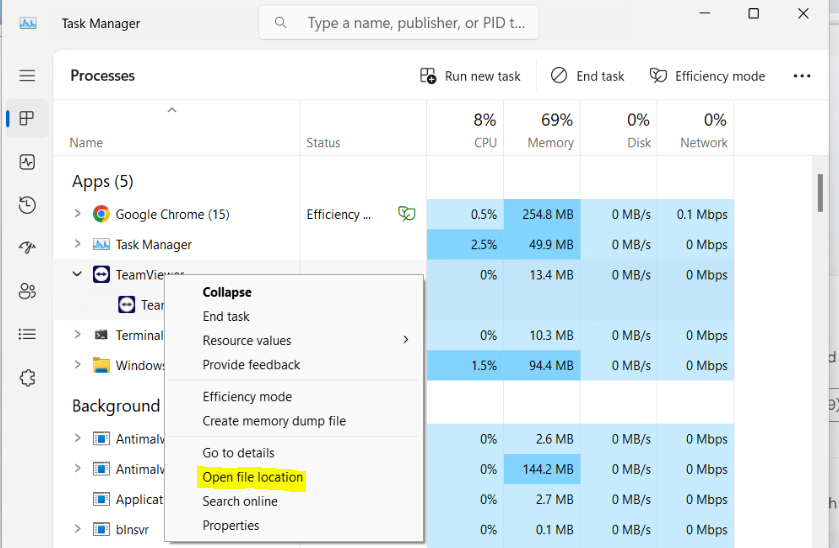

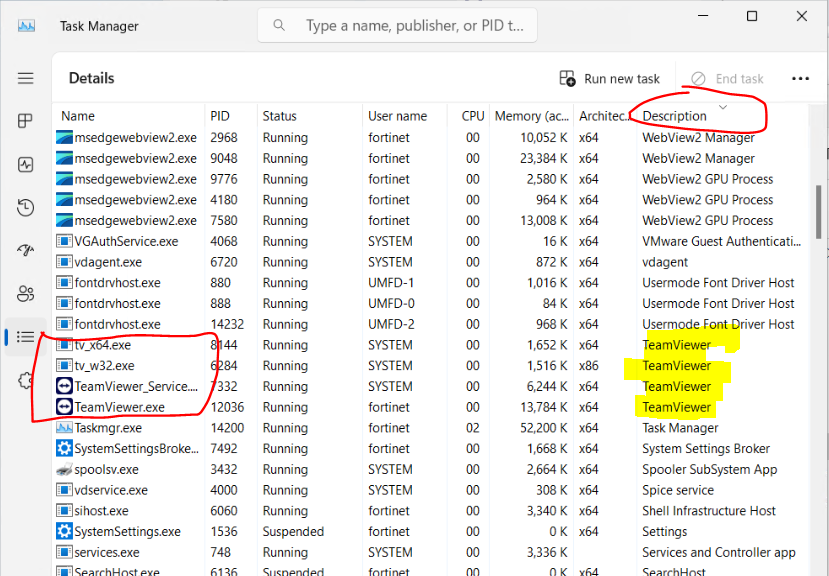

Solution	Sometimes when an application path is added to [Paths to Excluded Applications], the application is still unusable when FortiClient is in a Network Lockdown state. This is because there are sub-applications or processes that have to be excluded as well, in order for the application to operate normally. The below example shows the steps to create a proper Application Exception for TeamViewer application for Network Lockdown. Identify the application file location of TeamViewer: In a sample endpoint, open the TeamViewer application. Open Task Manager, 'right-click' TeamViewer -> Open file location. A file explorer window will open, and the folder directory will be shown on the top: This C:\Program Files (x86)\TeamViewer\TeamViewer.exe will be one of the entries to be added in [Paths to Excluded Applications]. Identify all other sub-applications/processes that are used by TeamViewer. In Task Manager -> Details tab, select on Description tab to filter by Description, look for TeamViewer. These processes will have to be added in [Paths to Excluded Applications] in the Endpoint Profile. Add the entries to [Paths to Excluded Applications] in the Endpoint Profile. EMS -> Endpoint Profiles -> Remote Access -> edit -> Advanced -> Paths to Excluded Applications Input all the related application paths: C:\Program Files\TeamViewer\tv_w32.exe C:\Program Files\TeamViewer\TeamViewer_Service.exe C:\Program Files\TeamViewer\TeamViewer.exe C:\Program Files\TeamViewer\tv_x64.exe To cater to some users who installed 32-bit TeamViewer, add the x86 path also: ‪C:\Program Files (x86)\TeamViewer\tv_w32.exe C:\Program Files (x86)\TeamViewer\TeamViewer_Service.exe C:\Program Files (x86)\TeamViewer\TeamViewer.exe C:\Program Files (x86)\TeamViewer\tv_x64.exe Save the profile In this way, TeamViewer will be fully functional when the endpoint is in Network Lockdown state, as all the sub-processes are added in Exclusion as well.
