Step 1: Configure MAC address and define the username.
Step 2: Create a group for the MAC device. Make sure to select MAC while creating the group.
Step 3: Configure the RADIUS policy. In device authorization, enable verifying the MAC address in authentication requests and refer the authorized group.

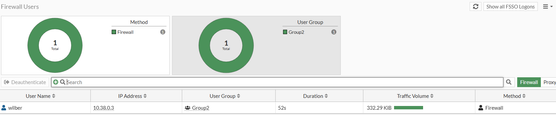

In this example, it is integrated with FortiGate and a user-based policy is configured with the RADIUS group.
Solution:
RADIUS debug output from FortiAuthenticator:
Case1: user wilber with group2 and MAC New1:
2025-04-29T07:04:43.295662-07:00 FortiAuthenticator radiusd[1770]: (8) Received Access-Request Id 138 from 10.38.9.85:1551 to 10.38.9.45:1812 length 173
2025-04-29T07:04:43.295700-07:00 FortiAuthenticator radiusd[1770]: (8) User-Password = <<< secret >>>
2025-04-29T07:04:43.295717-07:00 FortiAuthenticator radiusd[1770]: (8) User-Name = "wilber"
2025-04-29T07:04:43.295729-07:00 FortiAuthenticator radiusd[1770]: (8) NAS-Identifier = "boson-kvm85"
2025-04-29T07:04:43.295754-07:00 FortiAuthenticator radiusd[1770]: (8) Framed-IP-Address = 10.38.0.3
2025-04-29T07:04:43.295769-07:00 FortiAuthenticator radiusd[1770]: (8) NAS-Port = 1
2025-04-29T07:04:43.295782-07:00 FortiAuthenticator radiusd[1770]: (8) NAS-Port-Type = Virtual
2025-04-29T07:04:43.295794-07:00 FortiAuthenticator radiusd[1770]: (8) Called-Station-Id = "00-62-6F-73-55-01"
2025-04-29T07:04:43.295805-07:00 FortiAuthenticator radiusd[1770]: (8) Calling-Station-Id = "00-78-65-6E-73-01"
2025-04-29T07:04:43.295816-07:00 FortiAuthenticator radiusd[1770]: (8) Acct-Session-Id = "000007ef0db6f003"
2025-04-29T07:04:43.295827-07:00 FortiAuthenticator radiusd[1770]: (8) Connect-Info = "web-auth"
2025-04-29T07:04:43.296082-07:00 FortiAuthenticator radiusd[1770]: (8) Fortinet-Vdom-Name = "root"
2025-04-29T07:04:43.296109-07:00 FortiAuthenticator radiusd[1770]: (8) Message-Authenticator = 0xaafa48bb32be5a155263e75517cb21d4
2025-04-29T07:04:43.296129-07:00 FortiAuthenticator radiusd[1770]: (8) # Executing section authorize from file /usr/etc/raddb/sites-enabled/default
2025-04-29T07:04:43.296238-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: ===>NAS IP:10.38.9.85
2025-04-29T07:04:43.296250-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: ===>Username:wilber
2025-04-29T07:04:43.296268-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: ===>Timestamp:1745935483.294844, age:1ms
2025-04-29T07:04:43.297259-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: Found authclient from preloaded authclients list for 10.38.9.85: Fortigate (10.38.9.85)
2025-04-29T07:04:43.299725-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: Found authpolicy 'Policy2' for client '10.38.9.85'
2025-04-29T07:04:43.301658-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: Pass MAC filtering with group_id=3.
2025-04-29T07:04:43.301682-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: Setting 'Auth-Type := FACAUTH'
2025-04-29T07:04:43.301709-07:00 FortiAuthenticator radiusd[1770]: Not doing PAP as Auth-Type is already set.
2025-04-29T07:04:43.301732-07:00 FortiAuthenticator radiusd[1770]: (8) # Executing group from file /usr/etc/raddb/sites-enabled/default
2025-04-29T07:04:43.301779-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: Client type: external (subtype: radius)
2025-04-29T07:04:43.301792-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: Input raw_username: wilber Realm: (null) username: wilber
2025-04-29T07:04:43.301803-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: Searching default realm as well
2025-04-29T07:04:43.301823-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: Realm not specified, default goes to FAC local user
2025-04-29T07:04:43.304869-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: Local user found: wilber
2025-04-29T07:04:43.304893-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: User [enable fido: false, token count: 0, revoked_token_count: 0]
2025-04-29T07:04:43.304909-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: Policy [fido_auth_opt: disabled, twofactor: password only, no_fido: two factor, revoked: reject]
2025-04-29T07:04:43.304924-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: Decided on [is_fido: false, two_factor: password only, token_type: none]
2025-04-29T07:04:43.307837-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: Authentication OK
2025-04-29T07:04:43.307855-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: Setting 'Post-Auth-Type := FACAUTH'
2025-04-29T07:04:43.309228-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: Add Static Radius attribute: attr_id:809762817 (attr 1, vendor 12356) attr_val:'Group2'
2025-04-29T07:04:43.309539-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: update_fac_authlog:164 nas_str = 10.38.9.85~10.38.0.3.
2025-04-29T07:04:43.309596-07:00 FortiAuthenticator radiusd[1770]: (8) facauth: Updated auth log 'wilber' for attempt from 10.38.9.85~10.38.0.3: Local user authentication from 10.38.0.3 with no token successful
2025-04-29T07:04:43.309629-07:00 FortiAuthenticator radiusd[1770]: (8) # Executing group from file /usr/etc/raddb/sites-enabled/default
2025-04-29T07:04:43.309677-07:00 FortiAuthenticator radiusd[1770]: (8) Sent Access-Accept Id 138 from 10.38.9.45:1812 to 10.38.9.85:1551 length 52
2025-04-29T07:04:43.309685-07:00 FortiAuthenticator radiusd[1770]: (8) Message-Authenticator := 0x00
2025-04-29T07:04:43.309692-07:00 FortiAuthenticator radiusd[1770]: (8) Fortinet-Group-Name += "Group2"
2025-04-29T07:04:43.632607-07:00 FortiAuthenticator radiusd[1770]: Waking up in 29.6 seconds.
Case2: user wilber with group2 and MAC New2
2025-04-29T07:07:12.494574-07:00 FortiAuthenticator radiusd[1770]: (11) Received Access-Request Id 141 from 10.38.9.85:10394 to 10.38.9.45:1812 length 174
2025-04-29T07:07:12.494616-07:00 FortiAuthenticator radiusd[1770]: (11) CHAP-Password = 0x4651a77eda8b6d6aabcffc0e24d056ee46
2025-04-29T07:07:12.494630-07:00 FortiAuthenticator radiusd[1770]: (11) User-Name = "wilber"
2025-04-29T07:07:12.494642-07:00 FortiAuthenticator radiusd[1770]: (11) NAS-Identifier = "boson-kvm85"
2025-04-29T07:07:12.494666-07:00 FortiAuthenticator radiusd[1770]: (11) Framed-IP-Address = 10.38.0.3
2025-04-29T07:07:12.494682-07:00 FortiAuthenticator radiusd[1770]: (11) NAS-Port = 1
2025-04-29T07:07:12.494695-07:00 FortiAuthenticator radiusd[1770]: (11) NAS-Port-Type = Virtual
2025-04-29T07:07:12.494707-07:00 FortiAuthenticator radiusd[1770]: (11) Called-Station-Id = "00-62-6F-73-55-01"
2025-04-29T07:07:12.494719-07:00 FortiAuthenticator radiusd[1770]: (11) Calling-Station-Id = "00-78-65-6E-73-01"
2025-04-29T07:07:12.494731-07:00 FortiAuthenticator radiusd[1770]: (11) Acct-Session-Id = "000007ef0db6f004"
2025-04-29T07:07:12.494742-07:00 FortiAuthenticator radiusd[1770]: (11) Connect-Info = "web-auth"
2025-04-29T07:07:12.494753-07:00 FortiAuthenticator radiusd[1770]: (11) Fortinet-Vdom-Name = "root"
2025-04-29T07:07:12.494765-07:00 FortiAuthenticator radiusd[1770]: (11) Message-Authenticator = 0xc060fd64abb96a002603acf449dc5029
2025-04-29T07:07:12.494786-07:00 FortiAuthenticator radiusd[1770]: (11) # Executing section authorize from file /usr/etc/raddb/sites-enabled/default
2025-04-29T07:07:12.494857-07:00 FortiAuthenticator radiusd[1770]: (11) chap: &control:Auth-Type := CHAP
2025-04-29T07:07:12.494948-07:00 FortiAuthenticator radiusd[1770]: (11) facauth: ===>NAS IP:10.38.9.85
2025-04-29T07:07:12.494961-07:00 FortiAuthenticator radiusd[1770]: (11) facauth: ===>Username:wilber
2025-04-29T07:07:12.494979-07:00 FortiAuthenticator radiusd[1770]: (11) facauth: ===>Timestamp:1745935632.493989, age:0ms
2025-04-29T07:07:12.495739-07:00 FortiAuthenticator radiusd[1770]: (11) facauth: Found authclient from preloaded authclients list for 10.38.9.85: Fortigate (10.38.9.85)
2025-04-29T07:07:12.498263-07:00 FortiAuthenticator radiusd[1770]: (11) facauth: Found authpolicy 'Policy2' for client '10.38.9.85'
2025-04-29T07:07:12.500082-07:00 FortiAuthenticator radiusd[1770]: (11) facauth: Failed MAC filtering, deny access
2025-04-29T07:07:12.500208-07:00 FortiAuthenticator radiusd[1770]: (11) facauth: Updated auth log 'wilber' for attempt from 10.38.9.85: MAC-filtering failed for device '00-78-65-6E-73-01': MAC address not filtered by NAS groups
2025-04-29T07:07:12.500255-07:00 FortiAuthenticator radiusd[1770]: (11) # Executing group from file /usr/etc/raddb/sites-enabled/default
2025-04-29T07:07:12.828721-07:00 FortiAuthenticator radiusd[1770]: Waking up in 0.6 seconds.
2025-04-29T07:07:13.504763-07:00 FortiAuthenticator radiusd[1770]: (11) Sent Access-Reject Id 141 from 10.38.9.45:1812 to 10.38.9.85:10394 length 38
2025-04-29T07:07:13.504812-07:00 FortiAuthenticator radiusd[1770]: (11) Message-Authenticator := 0x00
2025-04-29T07:07:13.504906-07:00 FortiAuthenticator radiusd[1770]: Waking up in 26.9 seconds.
2025-04-29T07:07:40.504739-07:00 FortiAuthenticator radiusd[1770]: Waking up in 0.9 seconds.
2025-04-29T07:07:41.492608-07:00 FortiAuthenticator radiusd[1770]: Waking up in 1.0 seconds.
|
