Description

This article describes how  FortiAuthenticator can be used to sign a Certificate Sign Request (CSR) generated by other device like a FortiGate.



Scope



FortiAuthenticator, FortiGate.



Solution



1. Generating CSR file by FortiGate.

  • Go to System -> Certificate, select Create/Import -> Generate CSR.






  • Set Certificate Name.
  • Select ID Type. You can select: 'Host IP', 'Domain Name' or 'E-Mail'.



Optional Information:

  • Organization Unit.
  • Organization.
  • Locallity(City).
  • State / Province.
  • Country / Region.
  • Email.
  • Subject Alternative Name.
  • Password for private key.



Select:

  • Key Type.
  • Key Size.
  • Select Enrollment Method: File Based.
  • Select 'OK'.

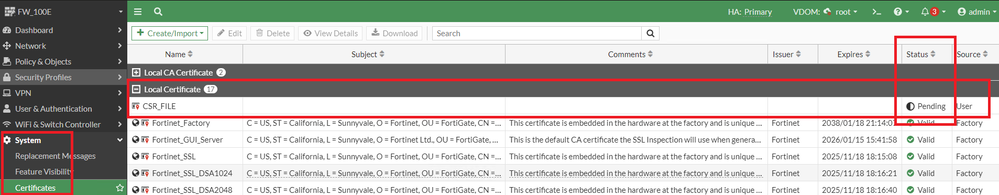

  • FortiGate shows this certificate file as 'Local Certificate' and Status: 'Pending'.






  • Select the CSR File, download, and save.




2. Generating FortiAuthenticator Certificate Autority (CA).

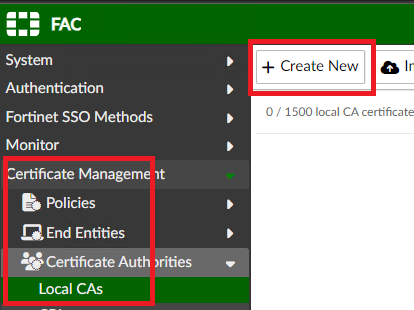

  • Go to Certificate Management -> Certificate Authorities -> Local CAs -> Create New.






  • Set Certificate ID.
  • Select Certificate Authority Type: Root CA
  • Select Subject input method.
  • Complete Subject Information.
  • Select Key And Signing Options.



Optional:

  • Subject Alternative Name (SAN).
  • Advanced Options: Key Usage.
  • Certificate Revocation List (CRL).

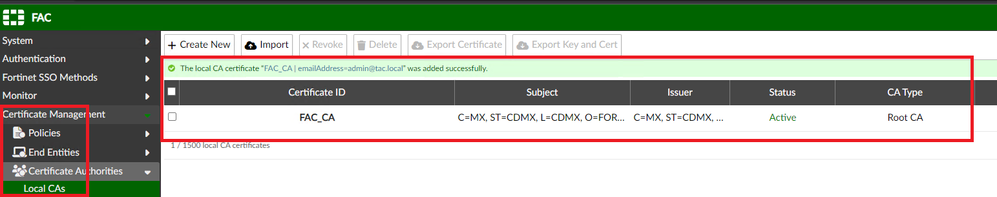

  • Select 'Save'.

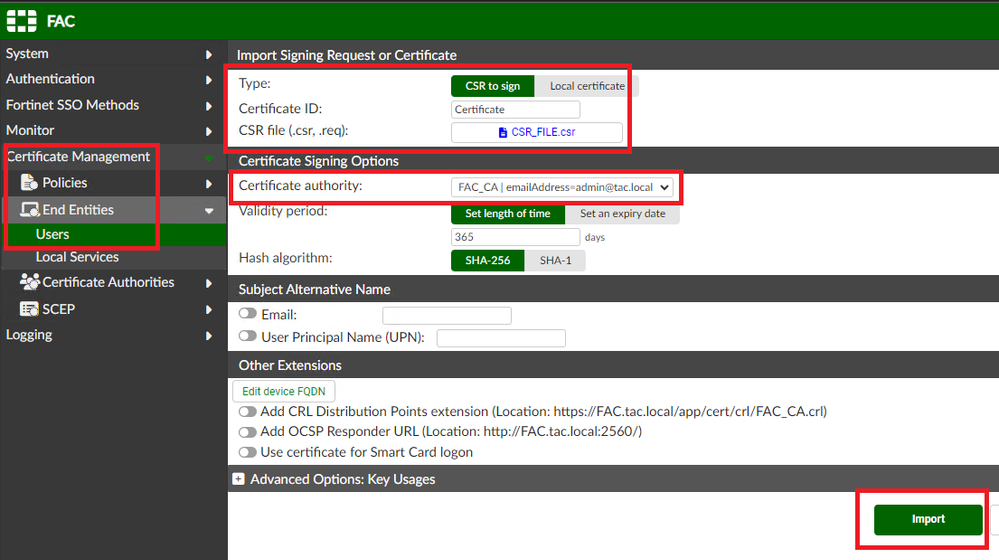

  • To sign a CSR navigate to Certificate Management -> End Entities -> Users and select Import.
  • Select Type: CSR to sign.
  • Set Certificate ID.
  • Upload CSR File created by Fortigate: CSR_FILE.csr
  • Select the Certificate Authority created: FAC_CA
  • A Subject Alternative Name can be specified. Note that FortiAuthenticator only supports email and User Principal Name(UPN).
  • Select Import.






Note:

If a CSR is imported with a Subject Alternative Name as DNS or other fields, which is signed by the FortiAuthenticator. Those fields (Subject Alternative Name) will be deleted. Try to sign those CSRs with another CA.

  • Also, the purpose of this certificate can be selected, and the key usages needed.

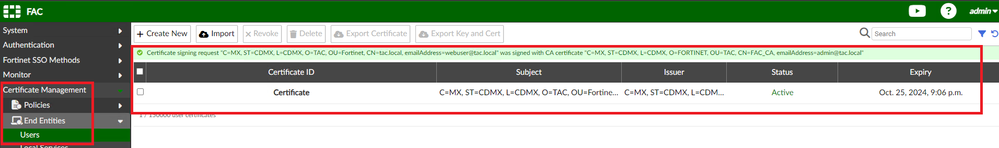

  • Go to Certificate Management -> End Entities -> Users, select file and 'Export Certificate'.
  • The type of this file will be: Security Certificate (.cer)
  • File name: Certificate.cer
  • Download and save.



Importing Signed File: Security Certificate (.cer) to FortiGate

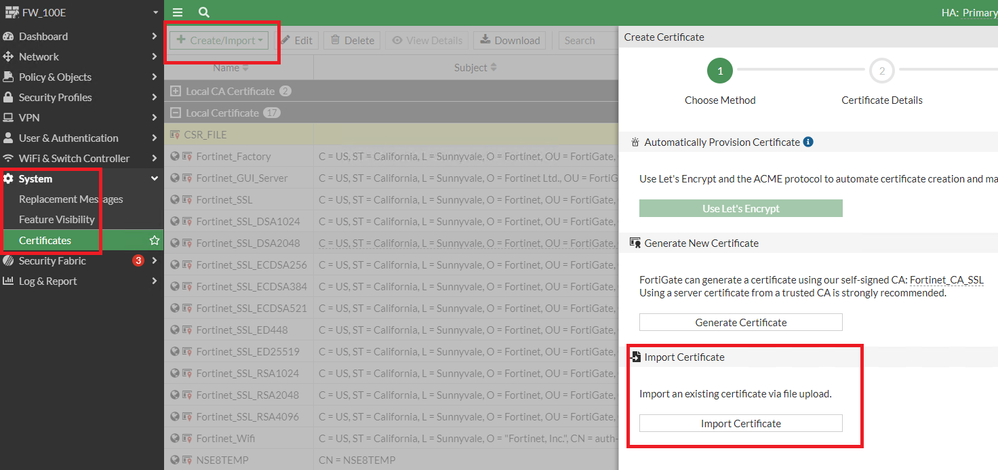

  • Go to System -> Certificate -> Create/Import -> Select: 'Certificate' -> Import Certificate.

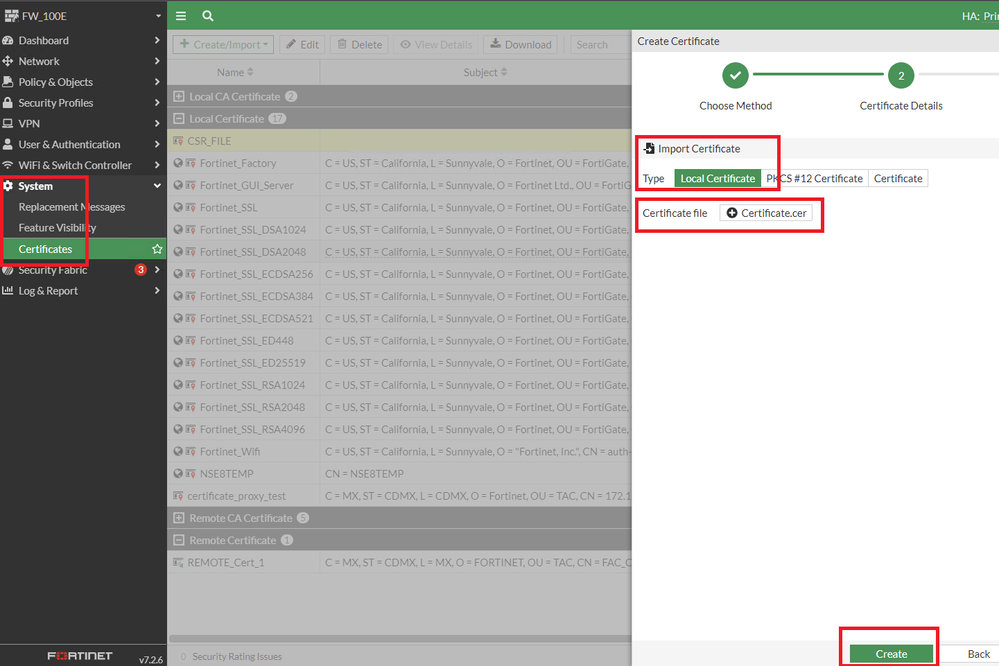

  • Select Type: 'Local Certificate'.
  • Certificate file: Certificate.cer
  • Select 'Create'.

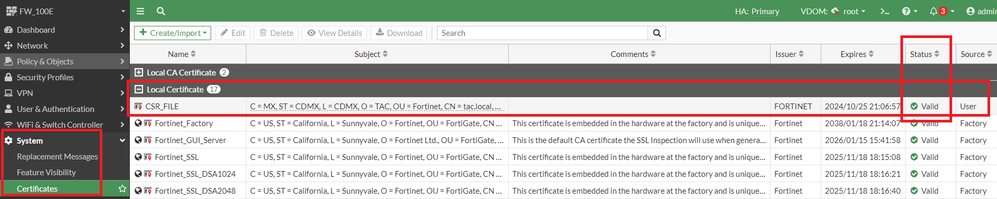

  • After importing Certificate.cer to FortiGate, 'CSR_FILE' with status 'Pending' will change to status 'Valid'.








  • It is possible to import CA created 'FAC_CA' file to FortiGate if needed.



For more details regarding the Certificate, refer to the documents below:

FortiGate Administration Guide / Certificate

FortiAuthenticator Administration Guide / Certificate
