Technical Tip: FortiManager/FortiAnalyzer configuring SAML SSO login with Azure AD

[ckarwei]

Description

This article describes how to configure SAML SSO for administrator login with Azure AD acting as SAML IdP in FortiManager or FortiAnalyzer.

Solution

1. Go to FortiManager/FortiAnalyzer -> System Settings -> SAML SSO, select 'Service Provider (SP)' as the single sign-on mode.
2. SP Address will be automatically populated. This will be the FortiManager/FortiAnalyzer IP address or Fully Qualified Domain Name (FQDN).
3. Go to the Azure single sign-on with SAML setup page.
4. Copy and paste the SP details on FortiManager/FortiAnalyzer GUI to Azure (Step 1. Basic SAML Configuration).

FortiManager / FortiAnalyzer GUI	Azure
SP entity ID	Identifier (Entity ID)
SP ACS (login) URL	Reply URL (Assertion Consumer Service URL)
SP SLS (logout) URL	Logout URL

5. Fill in 'Relay State' on Azure (Step 1. Basic SAML Configuration) using URL with the following format: https://<IP address or FQDN>:<port number>/p/sso_sp/



6. On Azure (Step 2. User Attributes & Claims), add a new claim with the details below.

Name: username.
Namespace: leave blank.
Source: Attribute.
Source attribute: user.userprincipalname.

The IdP (Azure AD) must send the 'username' assertion attribute. Azure AD does not send an attribute with this name by default.

Refer to documentation for other attributes that can be used: SAML admin authentication.

7. Select the Save button to add this new claim. The other unused claims can be deleted. Select the close button in top right to return.

8. On Azure (Step 3. Set up fortigate-saml-sso), download Azure AD SAML certificate in Base64 format.

9. On FortiManager SAML SSO -> IdP Settings -> IdP Type, select 'Custom'. Import the Azure AD SAML certificate as IdP Certificate. Copy and paste the details from Azure (Step 4. Set up fortigate-saml-sso) accordingly.

Azure	FortiManager / FortiAnalzyer GUI
Azure AD Identifier	IdP Entity ID
Login URL	IdP Login URL
Logout URL	IdP Logout URL

Note:

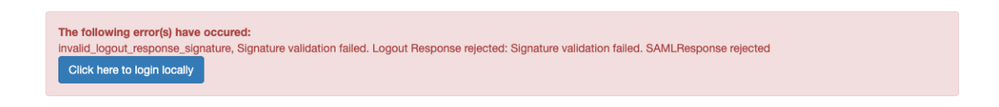

Since FortiManager/FortiAnalyzer do not sign the logout request, using the 'Logout URL' copied from the Azure application page may cause an error during logout:

Instead, use the following IdP Logout URL in the FortiManager/FortiAnalyzer configuration:
https://login.microsoftonline.com/common/wsfederation?wa=wsignout1.0

10. Select 'Apply' on the FortiManager / FortiAnalyzer GUI after completion.

11. Go to System Settings -> Admin -> Administrators and create a new administrator with the details below.

User Name: username on Azure AD.
Admin Type: SSO.
New Password: leave blank.
Confirm Password: leave blank.
Admin Profile: any admin profile.

12. It is now possible to log in through SAML authentication by selecting the 'Login via Single Sign-On' button.
