Technical Tip: Secure Private Access (SPA) using BGP on Loopback

jmc01 · ‎04-03-2025

Description This article describes how to configure FortiSASE SD-WAN Secure private access (SPA) using BGP on Loopback.

Scope FortiSASE.

Solution

BGP on loopback is a new routing design introduced in v7.0.4 that simplifies the configuration and reduces the number of routes advertised across the network.

Review the Prerequisites for the SPA configuration. See Product integration and support
Identify the following subnets and IPs for the SPA configuration:

BGP Router ID Subnet: This network is used for FortiSASE points of presence (POP) for the loopback interface and for establishing IBGP communication with the hubs. It must be at least a /28 subnet.
IP for Health Check: FortiSASE POPs use the health check IP address to periodically measure jitter, latency, and packet loss to the hub.
BGP loopback summary: It is recommended to allocate a single subnet that summarizes all the loopback addresses. This summary will be advertised by the hubs (FortiGate) to all the spokes (FortiSASE POPs). The size of this network will depend on the number of spokes in the network.
BGP Peer IP: This will be the IP address for the loopback interface on the hub and should be within the BGP loopback summary.
Network Overlay ID: It is best practice to assign a unique network ID for each hub IPsec tunnel. This ensures that if one active hub creates a shortcut between two spokes and fails over to another hub that also creates a shortcut between the same spokes, the new shortcut will work. Ensure this value is the same on both FortiGate and FortiSASE.

Example values used in this configuration:

Network Configuration settings	Value
BGP Router ID Subnet	192.168.240.16/28
IP for Health Check	192.168.254.1
BGP loopback summary	192.168.240.0/24
BGP Peer IP	192.168.240.253
BGP AS	65001
Network Overlay ID	11

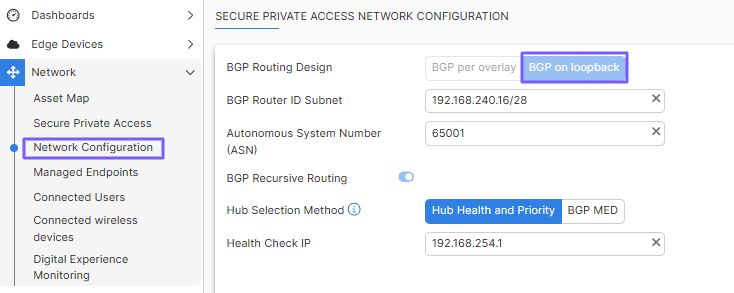

FortiSASE Configuration: Configure the FortiSASE Network Configuration. Navigate to the FortiSASE admin portal → Network → Network Configuration.

Network Configuration.png

Note:

The network configuration will be the same for all service connections used on FortiSASE.
For the health check IP, it is recommended to use a loopback interface on the hub. This interface should have the same IP on all hubs.
The hub selection method is used by FortiSASE to select the preferred hub for sending traffic over SPA. By default, FortiSASE uses hub health and priority. See Configuring network configuration | FortiSASE | Fortinet Document Library

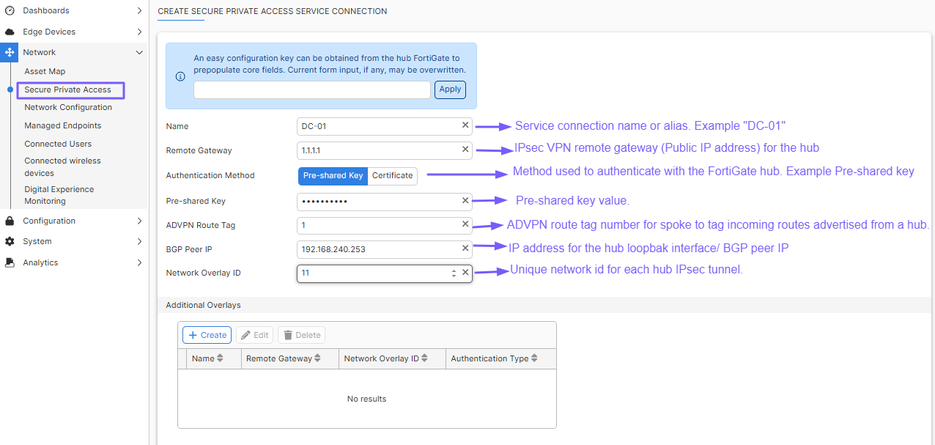

Configure the FortiSASE service connections (SPA). Navigate to FortiSASE admin portal → Network → Secure Private Access → Create.

Services connection.png

FortiGate (hub) Configuration: Configure the Loopback interface for BGP communication using CLI.

config system interface
      edit "Lo"  --->Name for the loopback interface
        set vdom "root"
        set type loopback
        set ip 192.168.240.253/32 --->BGP Peer IP configured on FortiSASE
        set allowaccess ping
      next
    end

Configure a unique Location ID using CLI:

config system settings
      set location-id 192.168.240.253 --->BGP Peer IP configured on FortiSASE
end

Configure the IPsec Tunnel for the FortiSASE connection using CLI:

config vpn ipsec phase1-interface
    edit "VPN1"    -------> Name for the IPsec tunnel
        set type dynamic
        set interface "port1" ---> WAN interface where the IPsec tunnel will be terminated
        set ike-version 2
        set peertype any
        set net-device disable
        set exchange-ip-addr4 192.168.240.253 ---> BGP Peer ID used on FortiSASE and the loopback interface
        set proposal aes128-sha256 aes256-sha256 aes128gcm-prfsha256 aes256gcm-prfsha384 chacha20poly1305-prfsha256
        set add-route disable
        set dpd on-idle
        set auto-discovery-sender enable
        set network-overlay enable
        set network-id 11     ----> Value used on FortiSASE network ID
        set psksecret ENC .....> Pre-share key used on FortiSASE
    next
end

config vpn ipsec phase2-interface

    edit "VPN1"    -------> Name for the IPsec tunnel
        set phase1name "VPN1"  -->Must be the name defined on the phase1
        set proposal aes128-sha256 aes256-sha256 aes128gcm-prfsha256 aes256gcm-prfsha384 chacha20poly1305-prfsha256
        set keepalive enable
    next
end

Note:

set auto-discovery-sender enable is required for ADVPN support between spokes. Hub will offer dynamic shortcut creation when there is communication between spokes, for example, FortiSASE POPs and another spoke (site).
set exchange-ip-addr4allows IKE to automatically inject a static route to reach the Loopback on all the Dial-Up phase1-interfaces towards the Spokes. This value must be the same used on the Loopback interface and FortiSASE BGP peer IP.

BGP configuration:

Configure a Route-Map to prevent advertising the loopback summary outside of IBGP.

config router route-map
      edit "LOCAL_REGION"
        config rule
          edit 1
            set set-community "no-export"
          next
        end
      next
end

Configure the BGP settings using CLI.

Note:

If BGP is already in use, review the following BGP settings to avoid conflicts.
For ADVPN support, a single neighbor-group should be used for all spokes.
The neighbor-range command is used to define a range of IP addresses that will use the settings defined in the neighbor-group. It is not specifying individual neighbors directly but rather a range of IPs that share the same configuration.
set recursive-next-hop is required on the hub.
set next-hop-self-rrOptional (Allow modification of the next host for the route reflector peering) Technical Tip: How to modify BGP next hop for route reflector peering

config router bgp
 set as 65001    --->Typically, this should be the same as the FortiSASE BGP AS
 set router-id 192.168.240.253   --->Use the loopback interface IP if not configured yet
 set keepalive-timer 15
 set holdtime-timer 45
 set ebgp-multipath enable
 set ibgp-multipath enable
 set recursive-next-hop enable
 set graceful-restart enable
 config neighbor-group
        edit "EDGE"  ---> Name for the neighbor group
          set soft-reconfiguration enable
          set advertisement-interval 1
          set next-hop-self enable
          set remote-as 65001  ---> FortiSASE BGP AS
          set interface "Lo"    ---> Loopback interface name
          set update-source "Lo" ---> Loopback interface name
          set route-reflector-client enable
          set next-hop-self-rr enable
          next
    end
 config neighbor-range
        edit 1
            set prefix 192.168.240.16/28 --> This must be the BGP Router ID Subnet configured on FortiSASE
            set neighbor-group "EDGE" --->Name for the neighbour group configured early.
        next
    end
 config network
        edit 1
            set prefix 192.168.240.0 255.255.255.0 ---> BGP Loopback Summary
            set route-map "LOCAL_REGION"   ---> Route-map configured in step 4.4.1
         next
         edit 2
            set prefix 192.168.16.0 255.255.255.0 ---> Local Network to be advertised over BGP
           next
   end
end

Configure the Health Check Loopback interface:

config system interface
    edit "Lo-HC"
        set vdom "root"
        set ip 192.168.254.1 255.255.255.255 --> IP for Health Check configured on SASE
        set allowaccess ping
        set type loopback
    next
end

Note:

The Health Check IP address must differ from the Loopback IP used for BGP communication.

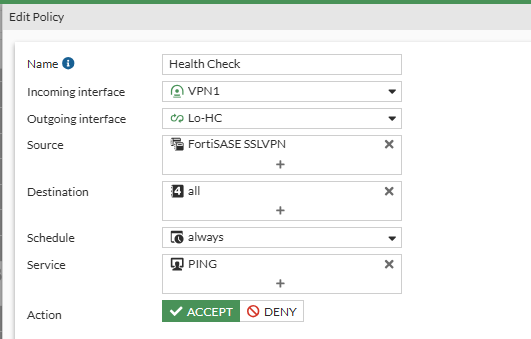

Firewall policies configuration.

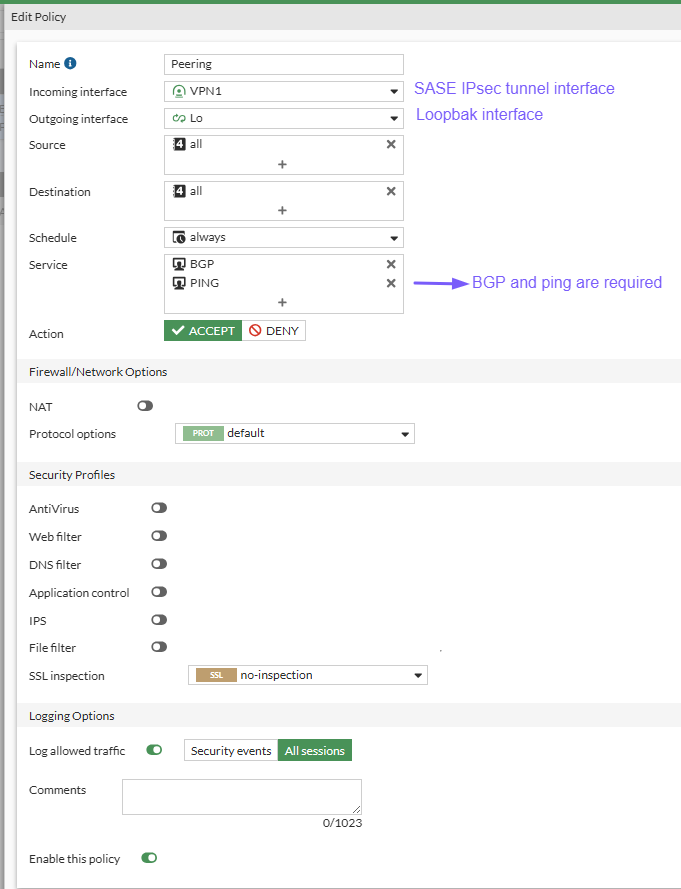

Policy to allow the BGP peering:

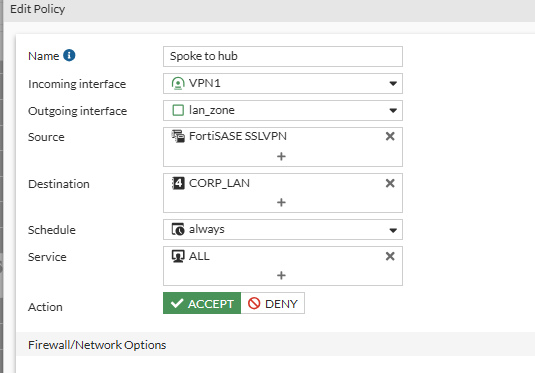

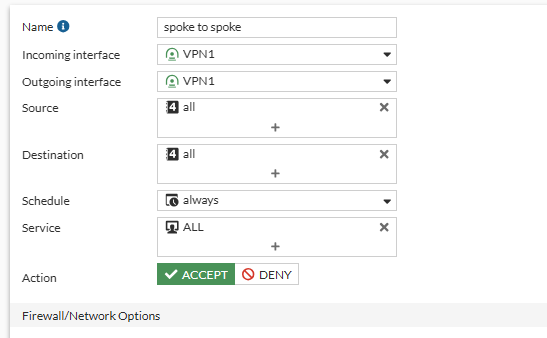

Policy to allow the Spoke-to-Hub communication.

spoke to hub.png
