Technical Tip: How to apply bypass subnet in the FortiSASE

[ChrisTan]

Description	This article describes how to add subnets bypass in the FortiSASE.
Scope	FortiSASE.

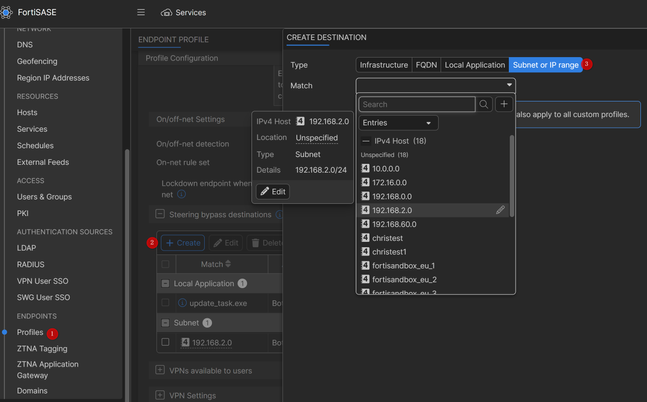

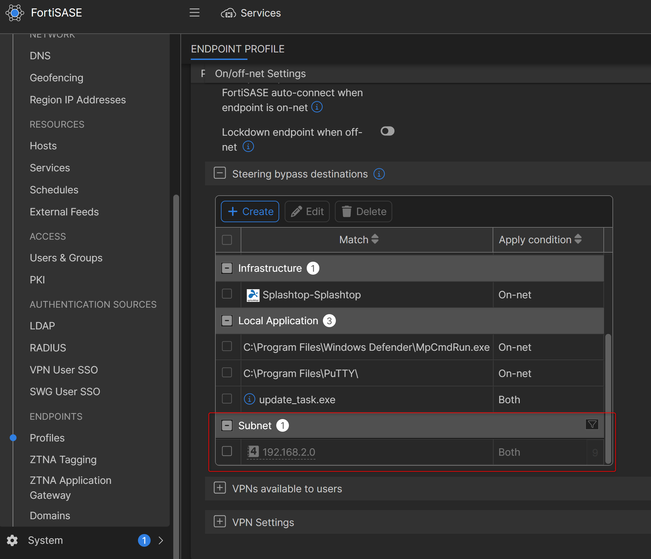

Solution	The FortiSASE default route goes to SIA, but in the below situation: The PC IP address is 192.168.1.1/24, while the printer IP address is 192.168.2.1/24. The printer is unreachable once the SIA is connected. In this case, the subnet 192.168.2.0/24 should be bypassed and routed by the local gateway. In the FortiSASE customized profile, there are only three types of bypass: Infrastructure, FQDN, Local Application: The subnet can only be available in the default profile: All profiles will apply once the bypass subnets are configured in the default profile, but it is greyed out and read-only: The PC can reach the printer once the bypass subnet 192.168.2.0/24 is added.  The FortiClient config can be found in: C:\Users\"username"\AppData\Local\FortiClient\fortisslvpn_xml.txt It includes the below: <split-tunnel-info negate='1'><addr ip='192.168.2.0' mask='255.255.255.0' /></split-tunnel-info> The 192.168.2.0 255.255.255.0 goes to the local gateway and can also be found in the local PC 'route print'.
