Technical Tip: A double 'deny' in the route map and prefix list configuration permits the traffic to pass

[ChrisTan]

Description	This article explains how FortiSASE handles route processing in scenarios where SSLVPN subnets overlap with SPA BGP routes.
Scope	FortiSASE.

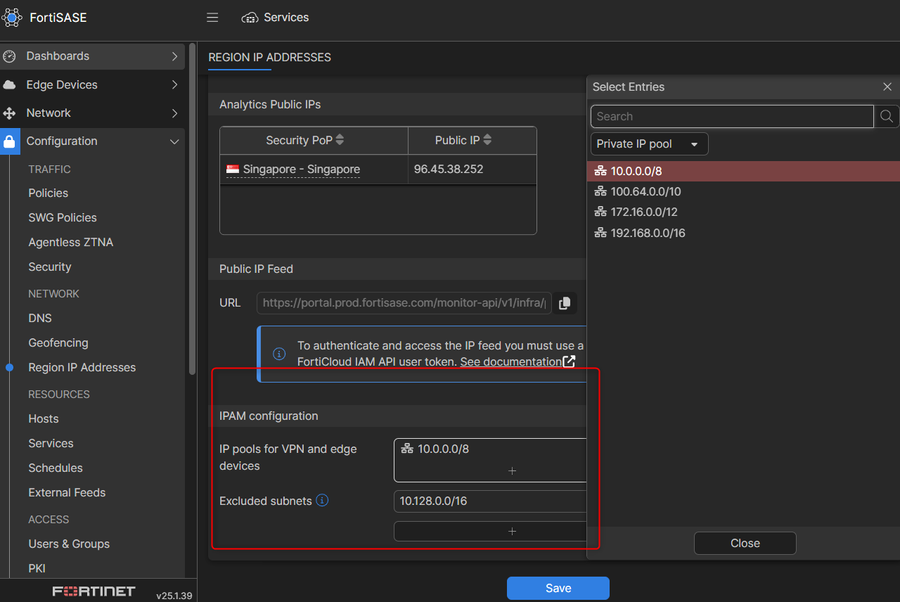

Solution	In FortiSASE, the IPAM configuration can be enabled: Region IP addresses A FortiSASE instance supports unique IP address ranges for remote VPN and edge endpoints per FortiSASE security PoP using IPAM within the overall 100.65.0.0/16 range, by default. The below subnets from the following private IP pools are available: 100.65.0.0/16 (default). 10.0.0.0/8. 100.64.0.0/10. 172.16.0.0/12. 192.168.0.0/16. The IP pools assigned to VPN and edge devices may overlap with SPA BGP routes, particularly within the 10.0.0.0/8 range. To resolve this conflict, the excluded subnets must be modified to permit routing from the HUB. For example, the 10.128.0.0/16 is excluded: config router bgp     set as 65001     set router-id 10.251.1.1         config neighbor             edit "10.251.1.251"          ....             set route-map-in "hubs"  <----route-map-in direction.             set route-map-out "hubs-out"          ...             config router route-map                 edit "hubs"                     config rule                         edit 1                             set action deny   <---- Action deny.                             set match-ip-address "internal"  <----- Deny 'internal' subnet.                             unset set-ip-prefsrc                         next                      end config router prefix-list     edit "internal"         config rule             edit 1                 set action deny    <----- Double deny.                 set prefix 10.128.0.0 255.255.0.0                 unset get                 set le 32             next                 edit 2                 set prefix 10.0.0.0 255.0.0.0                 unset get                 set le 32             next                 edit 3             end From the BGP routing table: FGT $ get router info bgp network VRF 10 BGP table version is 9, local router ID is 10.251.1.1 Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, S Stale Origin codes: i - IGP, e - EGP, ? - incomplete Network Next Hop Metric LocPrf Weight RouteTag Path *> 0.0.0.0/32 0.0.0.0 100 32768 0 i <-/1> *> 10.0.32.0/20 0.0.0.0 100 32768 0 i <-/1> *>i10.128.0.0/16 10.251.1.251 0 100 0 1000 i <1/1>  <----- 10.128.0.0/16 route received from the HUB. *> 10.251.1.1/32 0.0.0.0 100 32768 0 i <-/1> Total number of prefixes 3 In the above example, the FortiSASE IPAM exclude subnets configuration creates a double 'deny' action in both the route map and the prefix list. Without this exclusion configuration, the BGP route will not be received.
