In the CLI:
config web-proxy explicit-proxy
edit "web-proxy"
set status enable
set interface "port2"
set http-incoming-port 8080
next
end
Enable the explicit web proxy on the interface:
In the GUI:
Go to Network -> Interface and edit the interface.
Enable the 'Explicit web proxy' option.
From the CLI:
config system interface
edit "port2"
set ip 10.133.1.182 255.255.240.0
set allowaccess ping https ssh http telnet
set type physical
set explicit-web-proxy enable
set role lan
set snmp-index 2
next
end

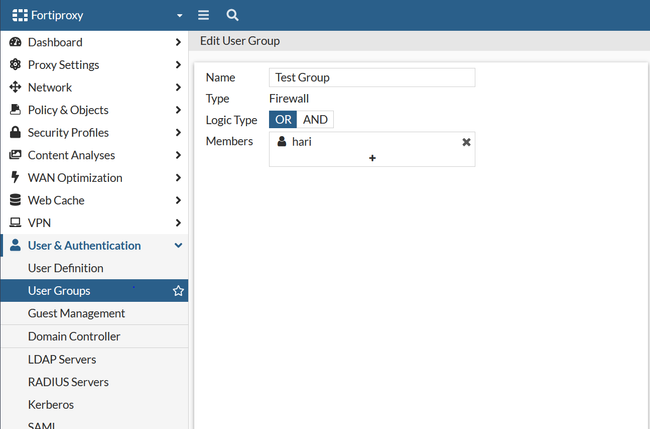

- Create a local user group for Authentication. Go to User & Authentication -> User Group. Select Create New and set the type to Firewall.
In the GUI:
In the CLI:
config user group
edit "Test Group"
set member "hari"
next
end
- Create Authentication rules and schemes (Explicit Proxy Authentication is managed by the authentication rules and schemes).
- Create an authentication scheme under Policy & Objects -> Authentication rules.
- Select Create a new Authentication scheme.
Set the method to 'basic' and the User database to 'local-user-db' to match the local user group.
In the GUI:
In the CLI:
config authentication scheme
edit "Test"
set method basic
set user-database "local-user-db"
next
end
Create an authentication rule to match the source and incoming traffic to authenticate.
Create a New rule. Select source interface Source address all and Destination address all. Enable the authentication scheme and select the created Auth-scheme.
In the CLI:
config authentication rule
edit "TEST"
set srcintf "port2"
set srcaddr "all"
set dstaddr "all"
set active-auth-method "Test"
next
end
- Configure an Explicit Proxy policy and add the user group to the policy.
- Go to Policy & objects -> Policy.
- Create new.
- Select the created Explicit web proxy and outgoing interface.
- In the Source address select all and the created user group.
In the GUI:
In the CLI:
config firewall policy
edit 1
set type explicit-web
set name "To_Internet"
set uuid 98da8fc8-de01-51ee-5b2a-9a2905f15638
set dstintf "port4"
set srcaddr "all"
set dstaddr "all"
set action accept
set schedule "always"
set service "webproxy"
set explicit-web-proxy "web-proxy"
set logtraffic all
set groups "Test Group"
set ssl-ssh-profile "certificate-inspection"
next
end

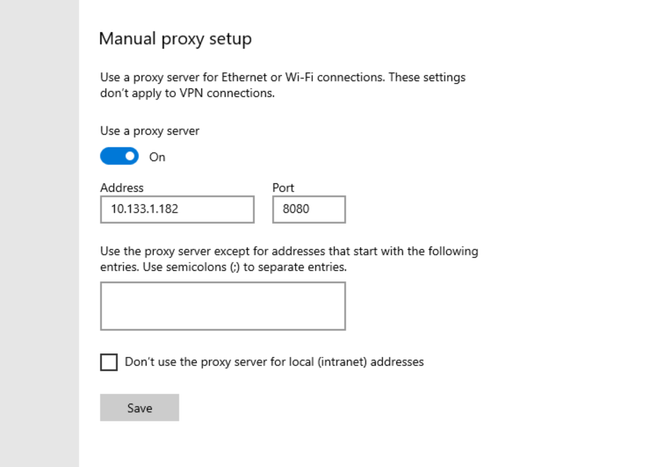

- Configure Client Proxy Settings: On the PC (e.g. Windows), navigate to Settings -> Network & internet -> Proxy. Enable the Manual Proxy setup. Enter the FortiGate configured Explicit web proxy IP Address and Port.
In the GUI:
- Web Browsing Authentication: When users attempt to browse the internet through the web proxy, the browser will offer a prompt for a username and password.
To verify the authenticated users list from the FortiGate CLI, run the following command:
diagnose wad user list
ID: 10, VDOM: root, IPv4: 10.133.1.178
user name : hari
worker : 1
duration : 90 seconds
auth_type : IP
auth_method : Basic
pol_id : 1
g_id : 2
user_based : 0
expire : N/A (in use)
LAN:
bytes_in=153493 bytes_out=24642103
WAN:
bytes_in=23932351 bytes_out=138436
