Technical Tip: How to configure FortiPortal SSO Remote Authentication using FortiAuthenticator SAML Service

[tnesh]

Description	This article describes how to configure FortiPortal SSO Remote Authentication by using FortiAuthenticator SAML Service.
Scope	FortiPortal, FortiAuthenticator.

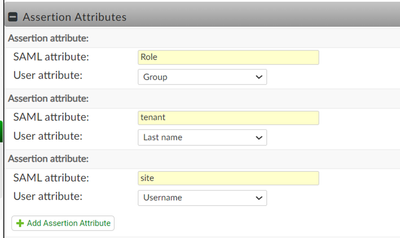

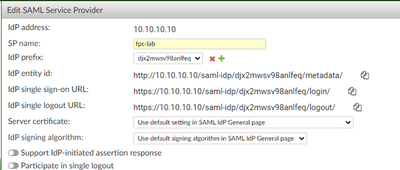

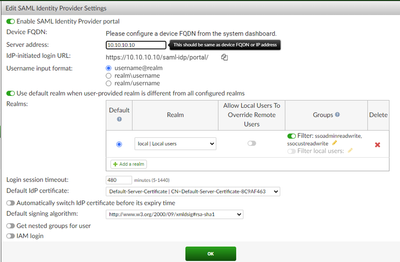

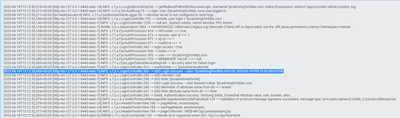

Solution	SAML Identity Provider (IdP): FortiAuthenticator. SAML Service Provider (SP): FortiPortal. SAML Parameters Mapping: SAML Parameter FortiAuthenticator (IdP) SAML Parameter FortiPortal (SP) SAML Parameter IDP Entity URL IdP entity id SSO IDP Entity URL To enter < IdP entity id> IdP single sign-on URL IdP single sign-on URL IDP Sign On Service Post Endpoint URL To enter <IdP single sign-on URL> IDP Sign On Redirect Endpoint URL IdP single sign-on URL IDP Sign On Service Redirect Endpoint URL To enter <IdP single sign-on URL> IDP Logout Service Endpoint IdP logout URL IDP Logout Service Endpoint To enter <IdP logout URL> SP entity ID To enter <SP Application ID> SSO Application ID http://<FPC_PORTAL>/metadata/ SP login URL To enter <SSO Audience URL> SSO Audience URL https://<FPC_PORTAL> /fpc/saml/SSO IdP certificate Server certificate SSO Certificate <Certificate provided by IDP> SAML Assertion Attribute Assertion Attributes 1. Role Attribute 2. Tenant Identification Attribute 3. Site Attribute Configuration Steps: (A) FortiAuthenticator (IdP). Note: This article will be using the following FortiAuthenticator user attributes to map with FortiPortal attributes respectively as an example. Both FortiAuthenticator and FortiPortal attribute values must be the same. SAML Assertion Attribute FortiAuthenticator (IdP) Attribute FortiPortal (SP) Attribute Role Attribute User Group SSO Roles Tenant Identification Attribute (Domains) User’s Last name Edit Customer > Domains Site Attribute Username Sites      1. Create User Groups.  Note: This value will be used to find a match for FPC Role Attribute.      2. Create a Local User / Remote User and add to a newly created user group.  Note: This value will be used to find a match for FPC Site Attribute.      3. Add a user email address.  Note: The email domain value will be used to check if the user belongs to an FPC customer or an FPC administrator. Example: Email Domain Purpose fpcadmin@fortinet.com fortinet.com for FPC administrator access customer@custserver.com custserver.com for FPC Customer Portal access      4. Edit the user's Last name with the domain value. Eg: custserver.com. Note: This value will be used to find a match for the FPC Tenant Identification Attribute.      5. Go to FortiAuthenticator -> SAML IdP -> General.      6. Enable the SAML Identity Provider portal and enter the details. Example:      7. Go to FortiAuthenticator -> SAML IdP -> Service Providers -> Create New.      8. Enter the SP name and create a new IdP prefix.      9. Enter the SP Metadata. The value needs to be the same as configured in FPC SSO settings.  Note: It is possible to come back to this page and enter the value once done configuring in FPC.      10. Authentication method and Assertion Attribute Configuration as shown below:      11. Map the Assertion Attribute Configuration settings as shown below: Note: SAML attribute needs to be the same as in FPC SSO Settings.      12. Verify the parameters and select OK. (B) FortiPortal.      1. Go to FortiPortal -> Customers -> Domains -> Key in the domain value -> Select Create. Note: This value will be used to find a match for the FPC Tenant Identification Attribute.      2. Go to FortiPortal -> Customers -> Sites -> Site Names. Note:  This value will be used to find a match for FPC Site Attribute.      3. Next, Go to FortiPortal -> Admin -> Settings -> User Authentication.      4. At Authentication Access, select Remote.      5. At Remote Server, select SSO.      6. Proceed to enter the value according to the SAML configuration.  Example: Authentication Access Remote Allow Service Provider Usernames without Domain Enable Remote Server SSO Domains fortinet.com Note: This value will be used to allow user to access FPC Administrator site. SSO Roles / SSO Profiles Create a new SSO role Note: This value will be used to find match for FPC Role Attribute. SSO IDP Entity URL http://10.10.10.10/saml-idp/djx2mwsv98anlfeq/metadata/ IDP Sign On Service Post Endpoint URL http://10.10.10.10/saml-idp/djx2mwsv98anlfeq/login/ IDP Sign On Service Redirect Endpoint URL http://10.10.10.10/saml-idp/djx2mwsv98anlfeq/login/ SSO Application ID http://10.10.10.20/metadata/  SSO Audience URL https://10.10.10.20/fpc/saml/SSO  Role Attribute Role Tenant Identification Attribute tenant SSO Error URL IDP Logout Service Endpoint https://10.10.10.10/saml-idp/djx2mwsv98anlfeq/logout/  SSO Certificate <<IdP Server Certificate in Base64 encoded format>> 1. Download FortiAuthenticator (IdP) default cert. 2. Open using Notepad. 3. Remove the first and last rows. 4. Edit the content to become only ONE line. 5. Copy and paste into the FPC SSO Certificate field. Site Attribute site      7. Select Submit and reboot FortiPortal. Test Scenario: Go to FortiPortal GUI -> Login with SSO User created in FortiAuthenticator. Troubleshooting guide:      1. Check logs from FortiAuthenticator: Logging -> Log Access -> Logs.      2. Check logs from FortiPortal v6.0.x GUI: Login to FortiPortal GUI (via the below URL) -> Admin -> System Log -> Start v6.0.x: https://<Portal>/fpc/adminuser/login. Then proceed to login with SSO user and capture the logs from the system log. Sample output:      3. Check logs from FortiPortal v6.0.x CLI: exec shell tail /var/tomcat/util/ftnt_fpc.log -f      4. For FortiPortal v7.x, it is possible to access to FortiPortal GUI via the below URL and verify the SAML settings: v7.x: https://<Portal>/fpc/app/admin.      5. Using SAML debugging Chrome extension to check SAML-related messages. Eg: https://chrome.google.com/webstore/detail.saml-tracer/mpdajninpobndbfcldcmbpnnbhibjmch  Sample output: Related documents: Technical Tip: How to validate that Remote authentication 'SSO' SAML responses and assertions are si... Remote authentication - SSO Remote authentication: SSO
