Technical Tip: Passive Agent Registration for domain endpoints

[ebujedo]

Description

This article describes how to configure endpoint registration using Passive Agent.

When a user connects to the network and logs in, FortiNAC determines the directory group to which the user belongs.
Based on that group, a Passive Agent configuration is used. The configuration registers the user and the associated host in FortiNAC.

With this same procedure, we can also match an access policy and endpoint compliance according to the user that is logged on.

Scope

FortiNAC, Passive agent.

Solution

Active Directory configuration:

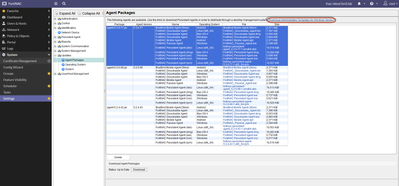

1. It is necessary first to download the agent package from: Settings -> Updates -> Agent Packages.

2. Download templates for GPO policies: Settings -> Updates -> Agent Packages.



3. Templates will be installed in:'C:\Program Files\Bradford Networks\Administrative Templates'.

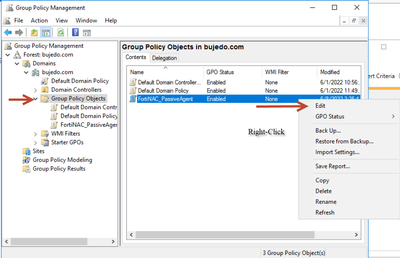

4. Create a Group Policy Object:



5. Edit the GPO object and Import the template previously downloaded:

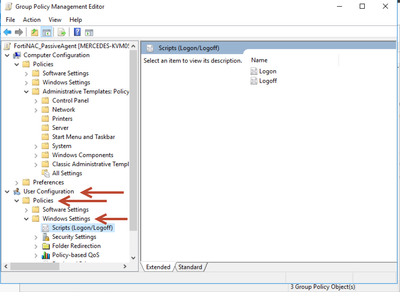

6. Modify Logon/Logoff scripts:



   It is necessary to add the 'FortiNAC_Passive_Agent.exe' previously downloaded and add the parameters -logon and -logoff according to the script modified.

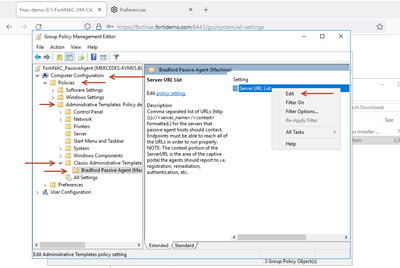

7. Point the server to connect (FortiNAC).

   Computer Configuration -> Policies -> Classic Administrative Templates -> Bradfor PAssive Agent (machine).



   URL should be: http://<FNAC_FQDN>/registration



   FortiNAC Configuration.

   It is necessary now to configure the Passive Agent Policy in Policy & Objects ->Passive Agent.

   When a Windows host connects, it is possible to associate this with the logged-on user and apply policies according to the user group where it belongs.



   It is important to add the port where the user connects at least to 'Forced Registration',' Forced Authentication groups', and 'Role based access' groups so FortiNAC can move the user to the corresponding VLAN.



Configuration check:

In case the host is unable to be registered using the Passive agent and there is no communication between PassiveAgent <> FortiNAC  then the following verifications are to be performed:

1. GPO verification.

**On the Windows client perform a group policy update. Open Command Prompt, and type:

gpupdate /force

** Verify that the computer group policy object is applied:

gpresult /r /scope computer

**Verify that the user group policy object is applied:

gpresult /r

2. Following domains are added in System - > Settings - > Control - > Allowed domains:



   dc-name.domain.ltd
   _mscds.domain.tld
   _tcp.domain.tld
   wpad.domain.tld
   ca-name.domain.ltd


3. Firewall policies must be configured to allow access from the isolation networks to the domain controller. The following service must be allowed:


   SMB(TCP 445) to access the shared folder.
   HTTPS (TCP 443) to access the CRL.
   KERBEROS (TCP and UDP 88) for authentication.
   DCE/RPC (TCP and UDP 135).
   SAMBA (TCP 139) to process the Group Policy Objects.
   LDAP (TCP and UDP 389) to interrogate the domain controller.


   Debugging Passive agent:

   To verify directory authentication and passive agent communication with FortiNAC the following debugs must be enabled through FortiNAC CLI:

   nacdebug -name DirectoryManager true

   nacdebug -name DirectoryAuthentication true

   nacdebug -name SecurityScanEntryInterface true

   nacdebug -name AgentServer true

   nacdebug -name AgentManagement true

   nacdebug -name DirectoryAgentServer true
