Description
This article describes the usage of Anonymous Authentication in the FortiNAC captive portal and the debugging needed to troubleshoot Registration Failures.
Scope
FortiNAC.
Solution
The Anonymous Authentication feature can be enabled in the FortiNAC captive portal in order to register Guests as Devices without any user tracking.
So a guest opens the portal and may be prompted to simply accept an Acceptable Usage policy and then be immediately registered as a device with a Role that can be leveraged to give them limited access through Network Access policies. There will be no Guest templates and the user will not have any credential prompt to login.
This is helpful in scenarios where there is no interest in having Guest Management and there is no need to track logged-in users providing ease of access for guests to a specific VLAN.
Configuration.

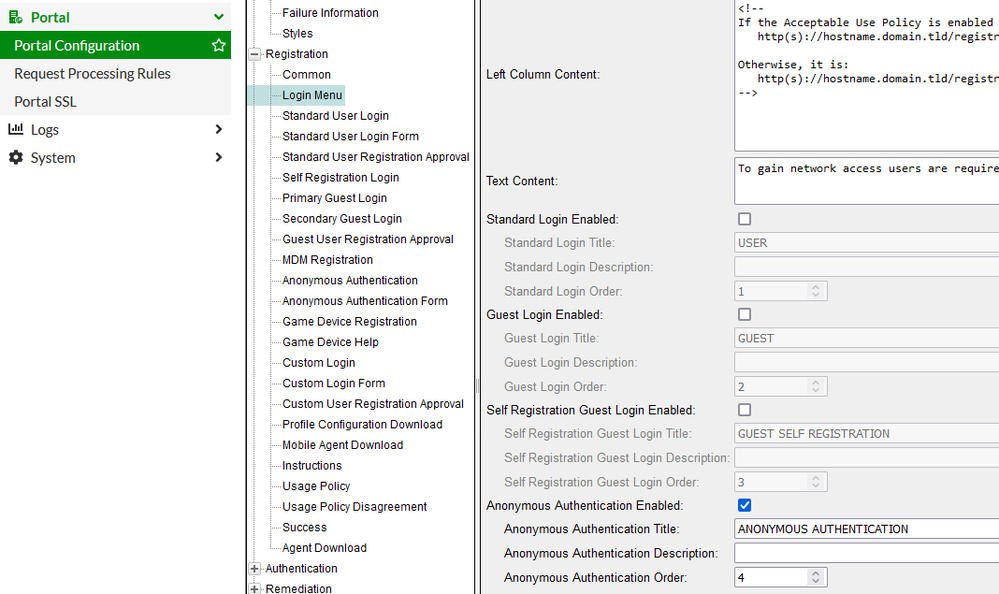

Step 1. Enable Anonymous Authentication in the Login menu.
Go to Portal -> Portal Configuration -> Registration -> Login Menu and enable the 'Anonymous Authentication Enabled' service.
Step 2. Define the Acceptable Use Policy Settings.
Go to Portal -> Portal Configuration > Registration -> Anonymous Authentication
In the 'Acceptable Use policy', select 'Show in Page', so the end user will be required to confirm and acknowledge the Policy on the Captive portal and then continue with the registration process.

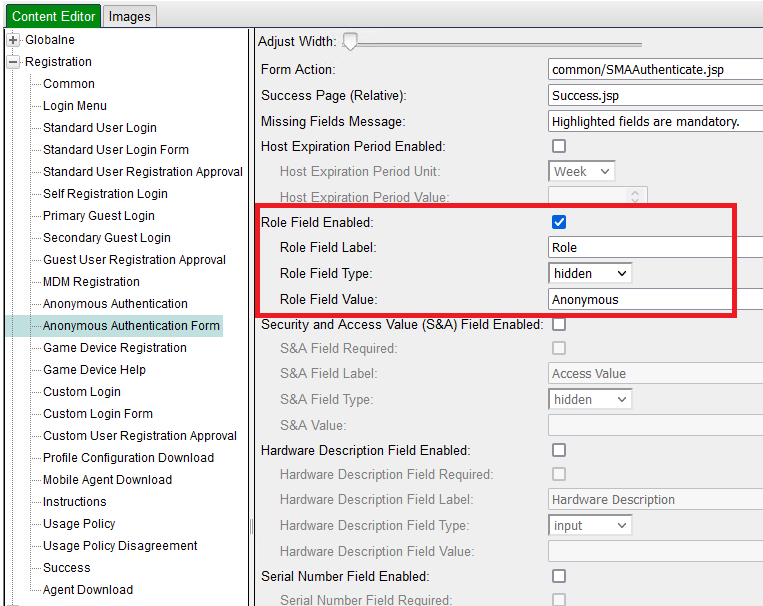

Step 3. Define the Role that will be assigned to registered Devices through Anonymous authentication.
Go to Portal -> Portal Configuration -> Registration -> Anonymous Authentication Form.
After making the change, select 'Apply' at the bottom of the Portal Content Editor.
Validation.
At this point, a Guest user can test by connecting to the network. Initially, FortiNAC will enforce state base control by putting the Host in isolation and marking it as a Rogue in the Host's view. FortiNAC acts as a DHCP and DNS server for isolated hosts and will respond with the Captive portal page to each HTTP request sent by the isolated endpoints.
The Guest user will be presented with the following page:
Once the user selects Anonymous Authentication, it is necessary to select the 'Acceptable Usage Policy' button and then submit.

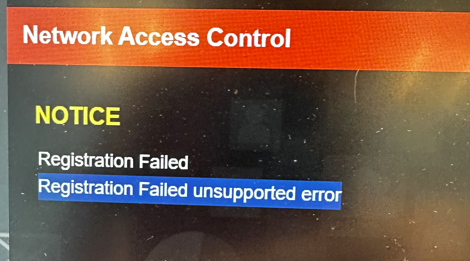

In some cases the following errors might appear:
To debug Captive portal services following debugs should be enabled in FortiNAC -F:
diagnose debug plugin enable CaptivePortal
diagnose tail -F output.nessus
- The error 'Registration Failed unsupported error' might appear in cases FortiNAC has not yet built a Host record in its database yet and the user submits the authentication form.
The following debugs will show the failure reason:
yams INFO :: 2023-07-04 20:15:10:554 :: #94 :: CampusMECBean.authenticateSMA() -- Quick IP-->Mac lookup on ip:192.168.10.5 found DE:AD:BE:EF:CA:FE
yams INFO :: 2023-07-04 20:15:10:555 :: #94 :: CampusMECBean.authenticateSMA() -- HostRecord lookup found: null
yams INFO :: 2023-07-04 20:15:10:555 :: #94 :: CampusMECBean.authenticateSMA() -- Created dummy HostRecord
yams INFO :: 2023-07-04 20:15:10:566 :: #94 :: Policy Name = null
yams INFO :: 2023-07-04 20:15:10:566 :: #94 :: Encoded User Id from campusMECBean = 9EE5A6EH7CCAF6JH7CW5A5WM
yams INFO :: 2023-07-04 20:15:10:566 :: #94 :: CampusMECBean MAC_ADDRESS: DE:AD:BE:EF:CA:FE IP: 192.168.10.5
yams INFO :: 2023-07-04 20:15:10:566 :: #94 :: OS = Windows
yams INFO :: 2023-07-04 20:15:10:567 :: #94 :: agenTID = XXXXXXXXXXXXXXXXXXXXXXXXXXX
yams INFO :: 2023-07-04 20:15:10:733 :: #94 :: Starting Portal Application
yams INFO :: 2023-07-04 20:15:10:778 :: #94 :: SMARegistration.jsp -- PostKeys and/or PostVals is null.
yams INFO :: 2023-07-04 20:15:10:778 :: #94 :: IP = 192.168.10.5 checkForNAT = false
yams INFO :: 2023-07-04 20:15:10:779 :: #94 :: ajp-nio-127.0.0.1-8009-exec-2 BscBean.getMACforRemoteIP() Remote IP = 192.168.10.5
ProbeObject = null
yams INFO :: 2023-07-04 20:15:10:779 :: #94 :: ajp-nio-127.0.0.1-8009-exec-2 No RemoteAccess ProbeObject for for IP = 192.168.10.5
yams INFO :: 2023-09-11 20:15:10:816 :: #94 :: Registration failed: Registration Failed unsupported error
b. In a working case FortiNAC should already have built the Host record and then will perform the registration on the host:
yams INFO :: 2023-07-04 13:59:00:891 :: #95 :: Auth Filter proxy running
yams INFO :: 2023-07-04 13:59:00:904 :: #95 :: getOS() IP 192.168.20.2 OS = Windows
yams INFO :: 2023-07-04 13:59:00:904 :: #95 :: ajp-nio-127.0.0.1-8009-exec-3 BscBean.getMACforRemoteIP() Remote IP = 192.168.20.2
ProbeObject = null
yams INFO :: 2023-07-04 13:59:00:905 :: #95 :: ajp-nio-127.0.0.1-8009-exec-3 No RemoteAccess ProbeObject for for IP = 192.168.20.2
yams INFO :: 2023-07-04 13:59:00:905 :: #95 :: CampusMECBean.authenticateSMA() -- Quick IP-->Mac lookup on ip:192.168.20.2 found DE:AD:BE:EF:CA:FE
yams INFO :: 2023-07-04 13:59:00:906 :: #95 :: CampusMECBean.authenticateSMA() -- HostRecord lookup found: Host Record:
Landscape = 4954321234 00:09:0F:00:09:0F
ID = 203
hostName = DESKTOP-FORTI8
owner = null
policy = null
os = Windows 10
.
.
.
yams INFO :: 2023-07-04 13:59:00:941 :: #95 :: Policy Name = null
yams INFO :: 2023-07-04 13:59:00:941 :: #95 :: Encoded User Id from campusMECBean = XXXXXXXXXXXXXXXXXXXXXXX
yams INFO :: 2023-07-04 13:59:00:941 :: #95 :: CampusMECBean MAC_ADDRESS: XX:XX:XX:XX:XX:XX IP: 192.168.20.2
yams INFO :: 2023-07-04 13:59:00:941 :: #95 :: OS = Windows
yams INFO :: 2023-07-04 13:59:00:945 :: #95 :: agenTID = YYYYYYYYYYYYYYYYYYYYYYYYY
yams INFO :: 2023-07-04 13:59:00:961 :: #95 :: SMARegistration.jsp -- PostKeys and/or PostVals is null.
yams INFO :: 2023-07-04 13:59:00:961 :: #95 :: IP = 192.168.20.2 checkForNAT = false
yams INFO :: 2023-07-04 13:59:00:962 :: #95 :: ajp-nio-127.0.0.1-8009-exec-3 BscBean.getMACforRemoteIP() Remote IP = 192.168.20.2
ProbeObject = null
yams INFO :: 2023-07-04 13:59:00:962 :: #95 :: ajp-nio-127.0.0.1-8009-exec-3 No RemoteAccess ProbeObject for IP = 192.168.20.2
yams INFO :: 2023-07-04 13:59:01:048 :: #95 :: Registration complete
To verify if FortiNAC -F already has a Host record in its DB, use the following commands:
execute enter-shell
Client -mac <MAC>
DumpHostRecords -mac <MAC>
**Replace <MAC> with the affected host MAC address**.

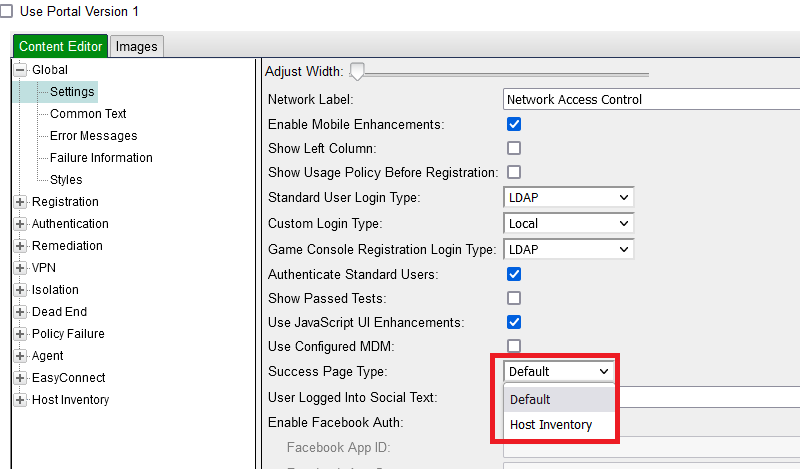

c. Currently, 'Anonymous authentication' is not supported with a portal configured with Host Inventory used as the success page type.
This refers to the success page defined in Portal -> Portal Configuration -> Global>Settings.
