Technical Tip: Configure FortiNAC Tags with FortiOS 7.2.4 GA

[Hawada1]

Description	This article describes how to configure FSSO tags via CLI in FortiOS 7.2.4 GA, so tags can be exchanged between FortiNAC and FortiGate.
Scope	FortiNAC, FortiOS 7.2.4GA, FortiGate.

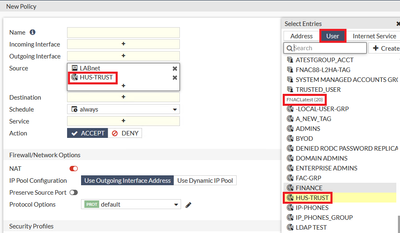

Solution	Starting from FortiOS 7.2.4 GA, it will appear that no option is available to add FortiNAC from the FortiGate GUI under Security Fabric -> Fabric Connectors. However, it is still possible to configure the FSSO tags via CLI: - It is necessary to define via the CLI and set the type FortiNAC. - Set the FSSO setting 'group-poll-interval' > 0. - This will trigger the tagging exchange and they appear in the Users section of Firewall policies. config user fsso     edit FNACLatest         set type fortinac         set server <FNAC-IP>         set password <fsso-password>         set group-poll-interval 1 end After configuring FSSO via CLI, enable to below debugs so it is possible to see the TAGs being exchanged between FortiGate and FortiNAC: diag debug app authd -1 diag debug console timestamp enable diag debug enable The following output should be displayed and tells that FortiNAC has exchanged the tags with FortiGate (for illustration only a bunch of the Tags that have been exchanged are shown). Under Policy & Objects -> Firewall Policy create a new policy.
