Technical Tip: How to perform a FortiGate config backup in unique backup files via TCL scripting

[bksol92]

Description	This article describes how to perform a FortiGate config backup in unique backup files via TCL scripting.
Scope	FortiManager.

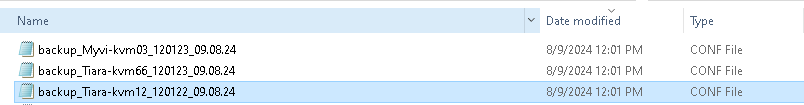

Solution	While FortiManager keeps a record of changes made on all managed FortiGate Devices in Device Manager, sometimes FortiGate config backups need to be made in a remote server at regular intervals. To create unique backup files for each FortiGate device from FortiManager, TCL scripting is required. To enable TCL scripting, the following FortiManager setting is required: config system admin setting     set show_tcl_script enable end The following TCL script will append a human-readable timestamp to the resulting backup file name; it can be run from Device Manager directly to all managed FortiGate devices: #! proc get_sys_status aname { upvar $aname a set input [exec "get system status\n" "# " 15] set linelist [split $input \n] foreach line $linelist { if {![regexp {([^:]+):(.*)} $line dummy key value]} continue switch -regexp -- $key { Hostname { set a(hostname) [string trim $value] }} } } get_sys_status status puts -nonewline [exec "exe backup config ftp backup_$status(hostname)_[clock format [clock seconds] -format %H%M%S]_[clock format [clock seconds] -format %d.%m.%y].conf <FTP server IP> ftpuser <password>\n" "#" 30] Make sure the script type is set to TCL: Once the script is run from FortiManager, FortiGate will perform a config backup and upload the file to a remote FTP server with unique file names:
