Description
This article provides a step-by-step guide on upgrading the firmware of a FortiManager or FortiAnalyzer cluster while ensuring system stability, security, and minimal disruptions. Additionally, it includes troubleshooting steps in case issues arise during the upgrade.
Scope
FortiManager, FortiAnalyzer.
Solution
- Applies to FortiManager and FortiAnalyzer High Availability (HA) clusters.
- Relevant for administrators responsible for system maintenance and firmware upgrades.
- Covers both GUI-based and CLI-based upgrade procedures.
Prerequisites.
- Ensure to get administrator access to the FortiManager/FortiAnalyzer.
- Review the firmware release notes for new features, fixes, and known issues.
- Back up all configurations and data before proceeding.
- Plan a maintenance window, as services may be temporarily disrupted during the upgrade.
- If FortiAnalyzer Features are enabled on FortiManager, they will be automatically deactivated during an upgrade to FortiManager v7.0.0 or later.
Steps to Upgrade the HA Cluster.
- Pre-Upgrade Preparation.
- Backup Configuration and Data: Before performing the upgrade, back up all configurations and data to avoid potential loss.
- Check Compatibility and Release Notes: Ensure the new firmware version is compatible with the current setup and review the firmware release notes for changes and potential issues.
- Schedule the Upgrade: Since the upgrade process does not cause a prolonged disconnection, it can be performed outside a scheduled maintenance window if necessary. Disable FortiAnalyzer Features (if applicable). If HA is enabled on FortiManager, FortiAnalyzer Features must be disabled before proceeding.
- Cluster Upgrade Procedure.
- Upgrade the Cluster via GUI:
- Log into the primary unit using an admin account.
- Navigate to System Settings -> Information -> Upload Firmware Image or use FortiGuard Upgrade Service.
- Start the upgrade process.
- The upgrade will automatically sync to the secondary devices in the cluster.
- Monitor the console log output for errors or warnings. (example shown in Troubleshooting section).
- Upgrade the Cluster via CLI via FTP server: Use the following command to upgrade firmware stored on an FTP or TFTP server using the following CLI command:
execute restore image {ftp | tftp} <file path to server> <IP of server> <username on server> <password>
- Post-Upgrade Verification:
- Check Cluster Status: Verify that all units are synchronized and running the new firmware version.
- In the GUI, navigate to System Settings -> HA.
- In the CLI, enter:
diagnose ha stats
Cluster-ID : 1
Debug : off
File-Quota : 4096
HA Health Status : OK
HA Role : Primary
FMG-HA Status : Synchronized
State Model : FortiManager-VM64
HB-Interval : 10
HB-Lost-Threshold : 30
HA Primary Uptime : Fri Feb 14 06:33:35 2025
HA Primary state change timestamp :
Primary : FMG-VM64, FMG-VM0000000013,
System Usage stats :
FMG-VM0000000013(updated 0 seconds ago): average-cpu-user/nice/system/idle=0.05%/0.00%/0.00%/99.95%, memory=14.56
- Other useful Troubleshooting commands that can be done on both Primary and Secondary units of FortiManager or FortiAnalyzer in case an issue is observed in the HA-Status:
diagnose debug reset
diagnose debug application ha 255
diagnose debug enable
- A system reboot may be required to apply the change.
- Monitoring and Troubleshooting.
- Checking Logs in Real-Time.
During the upgrade, it is recommended to use the console to monitor log output in real time.

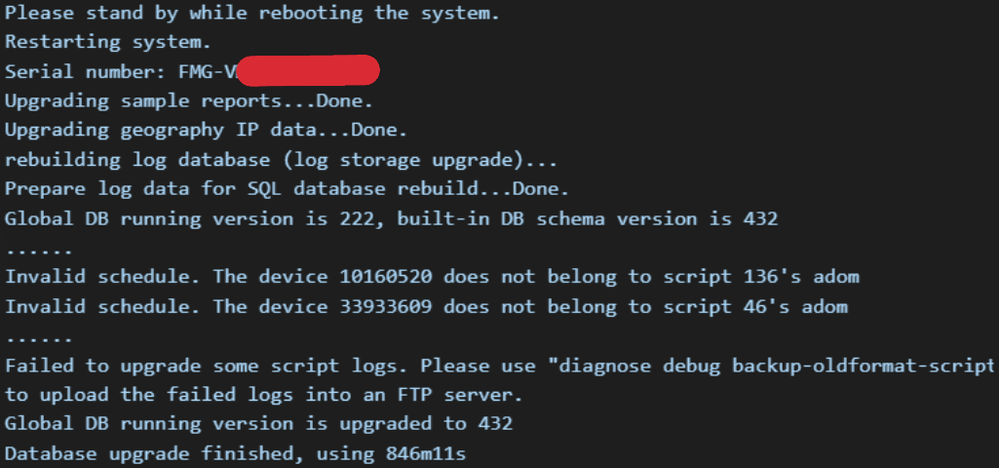

Example Log Output with Warnings and Errors:
If any errors arise, investigate and resolve them before continuing with normal operations.
- Checking FortiManager Event Logs:
- After the upgrade, check the FortiManager Event Logs for recorded messages under System settings -> Event logs.
- If errors are found, apply necessary fixes before putting the system into full production.
- Additional Considerations.
- SQL Database Rebuild (KB article link in the 'Related documents' section):
- Upgrading may trigger an automatic SQL database rebuild.
- During this process, new logs will be stored and visible, but older logs may be temporarily unavailable.
- The rebuild duration depends on database size.
Related documents:
Upgrade Guide FortiManager 7.6.2 (p22-23)
Enable or disable FortiAnalyzer features
Technical Tip: FortiAnalyzer SQL database delete and rebuild
