| Description | This article describes the SAML SSL VPN authentication failure for some users while it works for others, provided they are part of the same group. |
| Scope | FortiGate all versions. |
| Solution |
SAML SSL VPN authentication fails for some users while it works for others, provided they are part of the same group, and if running the SAML debugs, the results are as follows:
diagnose debug reset diagnose debug app samld -1 diagnose debug app sslvpnd -1 diagnose debug enable
Reproduce the issue.
diagnose debug disable diagnose debug reset
Failed Account:
samld_send_common_reply [123]: Attr: 17, 27, magic=f3ecead5d9cf6cdd samld_send_common_reply [120]: Attr: 10, 95, 'http://schemas.microsoft.com/identity/claims/tenantid' 'tenantID_is_random_string' samld_send_common_reply [120]: Attr: 10, 103, 'http://schemas.microsoft.com/identity/claims/objectidentifier' 'can_be_a random_string' samld_send_common_reply [120]: Attr: 10, 73, 'http://schemas.microsoft.com/identity/claims/displayname' 'Fortinet Test samld_send_common_reply [120]: Attr: 10, 175, 'http://schemas.microsoft.com/claims/groups.link' 'https://graph.windows.net/also_a_random_string/users/can_be_a_random_string/getMemberObjects' samld_send_common_reply [120]: Attr: 10, 128, 'http://schemas.microsoft.com/identity/claims/identityprovider' 'https://sts.windows.net/random_string_1/' samld_send_common_reply [120]: Attr: 10, 102, 'http://schemas.microsoft.com/ws/2008/06/identity/claims/wids' 'random_string' samld_send_common_reply [120]: Attr: 10, 102, 'http://schemas.microsoft.com/ws/2008/06/identity/claims/wids' 'can_be_a_random_string' samld_send_common_reply [120]: Attr: 10, 74, 'http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname' 'Fortinet’ samld_send_common_reply [120]: Attr: 10, 72, 'http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname' 'Test’
Working Account:
samld_send_common_reply [123]: Attr: 17, 27, magic=c1e141f212416d77 samld_send_common_reply [120]: Attr: 10, 95, 'http://schemas.microsoft.com/identity/claims/tenantid' 'tenantID_is_random_string' samld_send_common_reply [120]: Attr: 10, 103, 'http://schemas.microsoft.com/identity/claims/objectidentifier' 'can_be_a_random_string' samld_send_common_reply [120]: Attr: 10, 78, 'http://schemas.microsoft.com/identity/claims/displayname' 'FortinetTestOnline' samld_send_common_reply [120]: Attr: 10, 128, 'http://schemas.microsoft.com/identity/claims/identityprovider' 'https://sts.windows.net/random_string_1/' samld_send_common_reply [120]: Attr: 10, 142, 'http://schemas.microsoft.com/claims/authnmethodsreferences' 'http://schemas.microsoft.com/ws/2008/06/identity/authenticationmethod/password' samld_send_common_reply [120]: Attr: 10, 102, 'http://schemas.microsoft.com/ws/2008/06/identity/claims/wids' 'random_string' samld_send_common_reply [120]: Attr: 10, 74, 'http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname' 'Fortinet' samld_send_common_reply [120]: Attr: 10, 77, 'http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname' 'TestOnline' samld_send_common_reply [120]: Attr: 10, 102, 'http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress' 'Fortinet.testonline@xyzabc.com' samld_send_common_reply [120]: Attr: 10, 94, 'http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name' 'Fortinet.TestOnline@xyzabc.com' samld_send_common_reply [120]: Attr: 10, 47, 'group' 'unique_random_groupID1' samld_send_common_reply [120]: Attr: 10, 47, 'group' 'unique_random_groupID2' samld_send_common_reply [120]: Attr: 10, 47, 'group' 'unique_random_groupID3' samld_send_common_reply [120]: Attr: 10, 47, 'group' 'unique_random_groupID4' samld_send_common_reply [120]: Attr: 10, 47, 'group' 'unique_random_groupID5' samld_send_common_reply [120]: Attr: 10, 47, 'group' 'unique_random_groupID6' samld_send_common_reply [120]: Attr: 10, 44, 'username' 'Fortinet.TestOnline@xyzabc.com'
Solution: This error occurs when the user is part of more than 150 user groups, which is a limit set by Microsoft Azure.

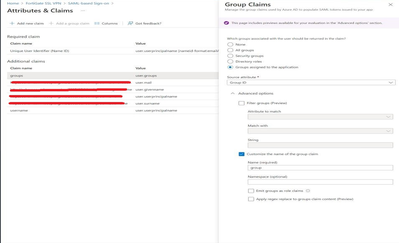

To resolve this issue, on the Azure portal, in the group claims settings, 'Groups Assigned to the Application' should be selected instead of 'All groups'. Once this setting is selected, only the groups that are assigned to the application will be sent in the SAML response instead of all the groups.
