Troubleshooting Tip: How to configure ISP WAN IPv4 with VLAN (Layer 3)

jadacime · ‎09-05-2023

Description

This article describes how to configure ISP IPv4 WAN on VLAN (Layer 3).

Scope

FortiGate v6.0.0 and above.

Solution

For GUI:

Go to Network -> Interfaces.

Create a VLAN interface over the WAN interface:

Select Type: VLAN.
Select the VLAN ID (number provided by the ISP).
Define the Role: WAN
Enter the IP address with the correct subnet mask (or leave DHCP if that is the case).
Define the Administrative Access for this VLAN, remember that this works similarly as a physical interface.
Select 'OK'.

Remember that this information is provided by the ISP:

After creation, set the static IP, pointing to this new VLAN interface.

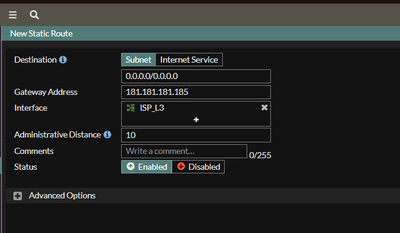

Go to Network -> static routes.

Create New.
Define the Gateway address.
Left the 0.0.0.0/0 as this is the default.
Select the interface ISP_L3.
Left the Default config for Administrative Distance and Priority.
Select 'OK'.

After creating the objects above steps, it is necessary to modify the LAN to WAN policy and ALL policies that mentioned this interface as a principal to allow traffic to the internet:

Select the Outgoing interface: The VLAN is created.
Select 'OK'.

Configure the Interface by CLI console:

config system interface

edit "ISP_L3"

set vdom "root"

set ip 181.181.181.186 255.255.255.248

set allowaccess ping https http

set role wan

set snmp-index 19

set interface "port2"

set vlanid 100

Configure the static route by CLI console:

FGTAWS (3) # show

config router static

edit 3

set gateway 181.181.181.185

set device "ISP_L3"

Modify the Policy by CLI console:

config firewall policy

edit 7

set status enable

set name "To_INTERNET"

set uuid 3730360e-4b5f-51ee-66bd-1481a21243de

set srcintf "port3"

set dstintf "ISP_L3" <----- This will be the new interface, the name may change by the configuration.

set action accept

set srcaddr "all"

set dstaddr "all"

set schedule "always"

set service "ALL"

set utm-status enable

set ssl-ssh-profile "certificate-inspection"

set logtraffic all

set nat enable

If there is any doubt about how to create a VLAN, check the document:
