Technical Tip: Using FortiGate DLP to block specific file types

[vanitha]

Description

This article explains how to configure DLP (Data Leak Prevention) to block files passing through a FortiGate.

Scope

FortiGate v5.0, FortiAP v5.4, FortiGate v5.2,

Solution

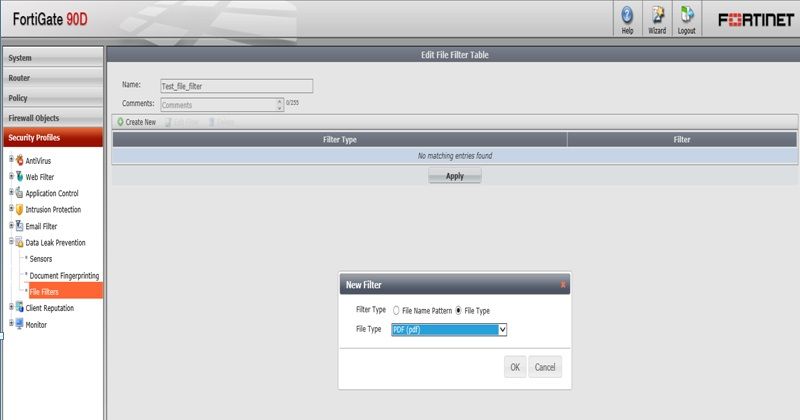

1. Configure the file filters/file patterns for the respective file types. (For example: pdf)

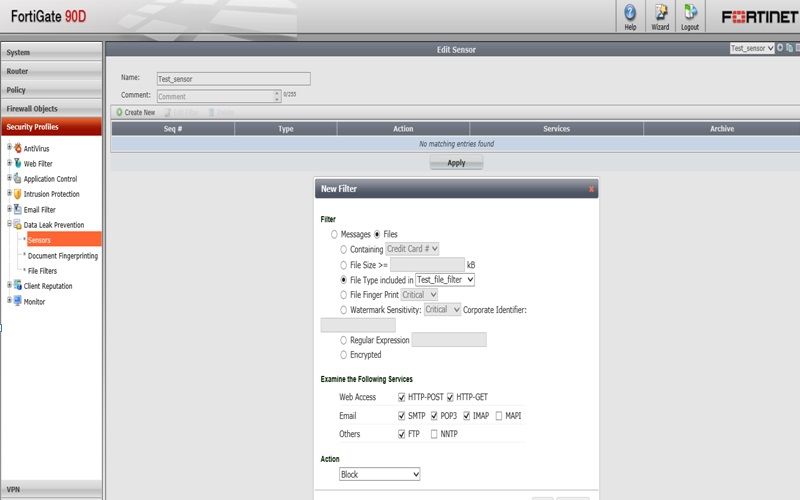

2. Create a new DLP sensor. Choose the file pattern created earlier and set the action to block.

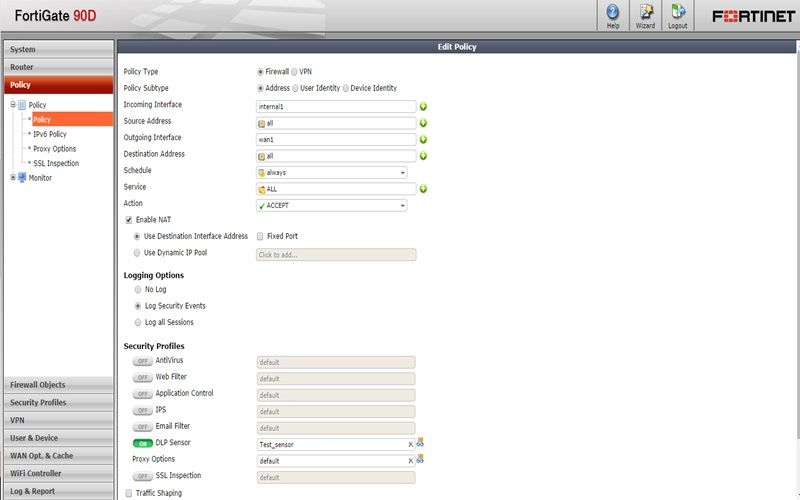

3. Configure the firewall policy and apply the DLP sensor to the respective policy.




Note:

• For lower-end models (FortiGate-40C, FortiGate-30B, FortiGate-20C) only CLI configuration is available as shown below:

  Config the file filters/file patterns for the respective file types. (For example: pdf)

config dlp filepattern

edit 1

set name "Test_file_filter"
config entries

edit "pdf"

set filter-type type
set file-type pdf

next

end

next
end

• Create a new DLP sensor and choose the file pattern already created.


config dlp sensor

edit "Test_dlp_sensor"

set comment 'to block files'
config filter

edit 1

set type file
set proto smtp pop3 imap http-get http-post ftp
set filter-by file-type
set file-type 3
set archive enable
set action block

next

end
set extended-utm-log enable
# set flow-based disable

next
end

• Configure the firewall policy and apply the dlp sensor on the policy.

config firewall policy

edit 1

set srcintf "internal1"
set dstintf "wan1"
set srcaddr "all"
set dstaddr "all"
set action accept
set status enable
set schedule "always"
set service "ALL"
set nat enable
set utm-status enable
set dlp-sensor "Test_dlp_sensor"
set profile-protocol-options "default"

next
end

Note:

From v6.2.2 to v7.2.3, the DLP is unavailable in GUI and can only be configured through CLI. However, it was re-introduced in v7.2.4 (If Data Leak Prevention is not visible in the tree menu, go to System -> Feature Visibility and enable it).
