Technical Tip: Turn down/disable tunnel interface if the link monitor fails

[_mribwan]

Description	This article describes that the Link monitor by default only removes the route from the routing table. The tunnel interface will still be up and tunnel failover will not occur. This article discusses using an automation stitch to disable the tunnel once the route is removed, as the fail-detect method is not available on the IPSec tunnel interface.
Scope	FortiOS 7.0.x, 7.2.x, 7.4.x.

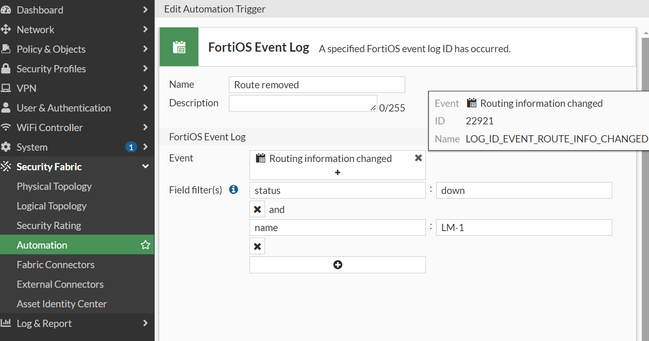

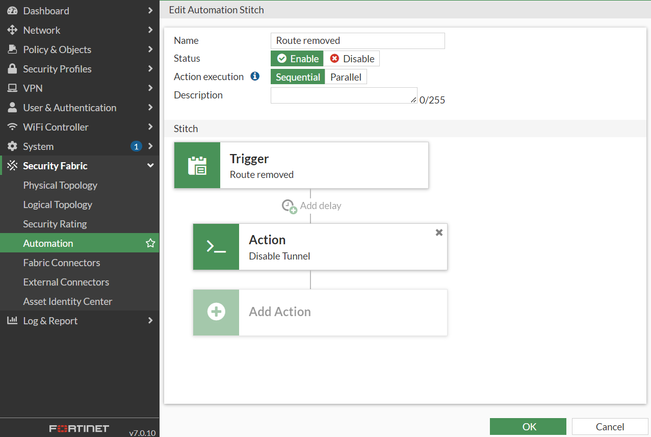

Solution	Configure the link-monitor as needed. IPSec tends to have the link monitor on the peer. Refer to this documents on configuring link-monitor: Link monitor with route updates Technical Tip: Link monitor In this example, it is configured as follows: config system link-monitor     edit "LM-1"         set srcintf "port3"         set server "172.20.151.2"         set gateway-ip 10.80.4.185         set route "172.16.0.0/16" end Once link-monitor is configured, it will generate log id 22921 once the route is removed:   Create the automation trigger, and action and compile them in the stitch :  GUI: Security Fabric -> Automation. Automation Trigger: Automation Trigger CLI:  config system automation-trigger     edit "Route removed"         set event-type event-log         set logid 22921             config fields                 edit 1                     set name "status" <--- Route status is down.                     set value "down"                 next                 edit 2                     set name "name" <--- Link-monitor name used is LM-1. This is required if there are multiple link-monitor configured.                     set value "LM-1"                 next             end     next Automation Action: Automation action CLI:  config system automation-action      edit "Disable Tunnel"         set action-type cli-script         set script "conf sys int             edit \"ToCam\"                 set status down end"     set accprofile "super_admin" end Automation Stitch: Automation stitch CLI :  config system automation-stitch     edit "Route removed"         set trigger "Route removed"             config actions                 edit 1                     set action "Disable Tunnel"                     set required enable                 next             end     next Result :
