Technical Tip: Securing a captive portal enabled interface by hiding the interface IP in the URL bar

[princes]

Description	This article describes how to secure an interface with captive portal enabled. By default, if captive portal is enabled with a local portal, the user's browser will be redirected to the FortiGate interface IP and port. This workaround makes it possible to hide the interface IP address from the browser URL display.
Scope	All supported versions of FortiOS.

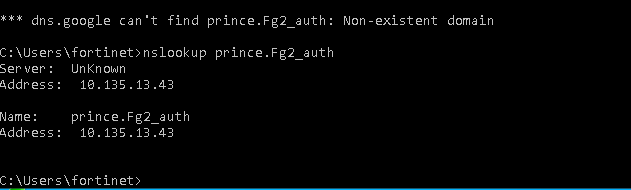

Solution	Create a DNS database on the FortiGate. Any FQDN can be used according to individual requirements. The listening interface with captive portal should be configured as recursive DNS. The DNS related settings must be set up as follows: Go to Network -> DNS Server and create the following settings: Now, add a DNS database for the record: Since this entry has been configured with a recursive server as a FortiGate LAN (port3) interface, it is necessary to specify that the user system should use the DNS server as the FortiGate interface. If the interface is enabled with DHCP, manually specify the DNS server to push on the end machine. After configuring the DNS server as 10.135.13.43 in the user system, the DNS resolution should work properly: Now, it is necessary to set up the default portal address as a configured FQDN on the DNS database on FortiGate: config firewall auth-portal iron-kvm14 (auth-portal) # sh full config firewall auth-portal set portal-addr '' set portal-addr6 '' set identity-based-route '' set proxy-auth disable end set portal-addr prince.Fg2_auth    <- By default, FortiGate will present an Interface IP and port 1000. end Now, if the user tries to browse anything, the captive portal page will not show an Interface IP address in the URL section: Authd debug: authd_fnbam_locked_out: username=prince, src_addr=10.135.2.31, n_failures=0, record_ttl=-2942155 [_authd_fnbam_auth_user:1371]: called _authd_fnbam_auth: Start auth authd_epoll_work: timeout 29800 [authd_http_accept_session:1112]: src 10.135.2.31 flag 00008000 [authd_http_change_state:2822]: src 10.135.2.31 flag 00008000 authd_http: change state from 0 to 1 pid=2012, auth_rsp_data=0x7ffcf6f69020 pid=2012, user=prince pid=2012, svr=prince, groups_len=0 prince() authentication successful: timeout=300 group_id=( 16777218 ) [authd_http_authentication_done:1590]: src 10.135.2.31 flag 30018800 [authd_http_prepare_http303_redir:3925]: http://www.gstatic.com/generate_204 <- Captive redirect browser. [authd_http_send:1268]: src 10.135.2.31 flag 30018800 [authd_http_change_state:2822]: src 10.135.2.31 flag 30018800 authd_http: change state from 103 to 5 [authd_http_disconnect:2745]: src 10.135.2.31 flag 30018800 [authd_http_change_state:2822]: src 10.135.2.31 flag 30018800 authd_http: change state from 5 to 6 Note: To achieve this, the user has 2 options: either map this FQDN to an interface IP on the local DNS, or use the above method on              FortiGate. However, the recommended way is to perform this FQDN mapping on a local DNS server. Related article for captive portal: Technical Tip: Captive portal authentication with users as members of multiple groups
