| Description | This article describes how to configure SSL VPN web portal in web mode and predefines a bookmark with Single Sign-On |
| Scope | FortiGate. |
| Solution |
In FortiGate SSL VPN Web Mode integrated with Active Directory Authentication, the user established the SSL VPN tunnel via Web browser, then the user uses the same Active Directory credentials to access the internal application, and no need to log in to the application again.
For SAML logon, the configuration will not work. The explanation is at the end of the document

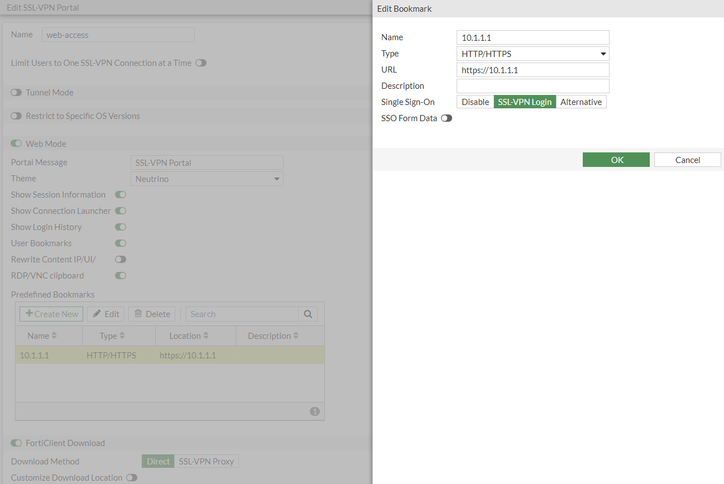

Sample configuration:
config vpn ssl web portal edit "web-access" set tunnel-mode disable set web-mode enable set allow-user-access web rdp set limit-user-logins disable set display-bookmark enable set user-bookmark enable set user-group-bookmark enable config bookmark-group edit "gui-bookmarks" config bookmarks edit "10.1.1.1" set apptype web set description '' set url "https://10.1.1.1" set sso auto set sso-credential sslvpn-login set sso-credential-sent-once disable next end next end next end
Note: This is not supported in SSL VPN Tunnel mode.
Explanation for SSL VPN with SAML login for predefined Single Sign-On bookmark not working:
When using SSO with SAML, FortiGate does not receive user passwords because authentication takes place on the IdP. As a result, the 'encrypt-and-store-password enable' setting is inapplicable; FortiGate never obtains the password during SAML authentication; it remains exclusively with the IdP.
This limitation prevents SAML users from functioning with SSL VPN on FortiGate for predefined bookmarks with Single Sign-On.
Additionally, the SAML session cookie, which is specific to the IdP and critical for maintaining session functionality, is not accessible to the SSO bookmark in this implementation. The login request sent from the IdP cannot be reused for other services. |
