When there are many address objects in an address group, it can be difficult to get the full list of IP addresses of all member address objects from the GUI.
The iprope table contains the various policies/objects that FortiOS checks when assessing how traffic should be handled. The iprope entry for a firewall policy will list all IPs of Subnet-based address objects, IP Range-based address objects, as well as any IPs resolved for FQDN-based address objects that are referenced in the firewall policy.
For example, consider the following configuration:
config firewall address

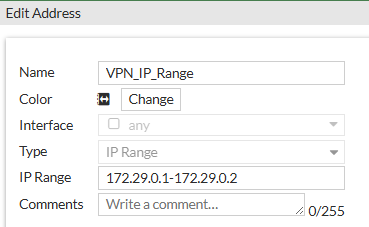

edit "VPN_IP_Range"
set type iprange
set start-ip 172.29.0.1
set end-ip 172.29.0.2
next
edit "support.fortinet.com FQDN"
set type fqdn
set fqdn "support.fortinet.com"
next

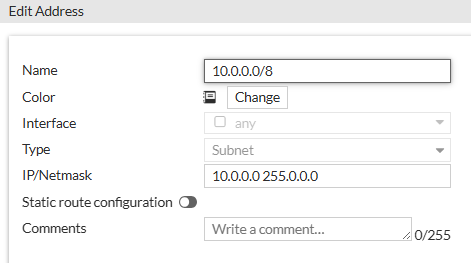

edit "10.0.0.0/8"
set subnet 10.0.0.0 255.0.0.0
next
end
config firewall addrgrp
edit "Address_Group"
set member "VPN_IP_Range" "support.fortinet.com FQDN" "10.0.0.0/8"
next
end
- Create a firewall policy that only has the address group in either the Source or Destination field. This firewall policy will need to be enabled for the iprope entry to be active, so the firewall policy should be configured in a way that will not impact production traffic (i.e. set the Incoming/Outgoing Interface to an unused or loopback interface).
Alternatively, if the address group is already used in an existing firewall policy as the sole Source or Destination, then that policy can be used instead for the next steps.
- Open the FortiGate CLI and run diagnose firewall iprope list 0x100004. This command returns the iprope table entries related to firewall policies.
- Search the output for the index of the firewall policy created in step 1. The output will be similar to the following:
policy index=5555 uuid_idx=685 action=accept
flag (8010000): master pol_stats
flag2 (4000): resolve_sso
flag3 (a0): link-local best-route
schedule(always)
cos_fwd=255 cos_rev=255
group=00100004 av=00000000 au=00000000 split=00000000
host=0 chk_client_info=0x0 app_list=0 ips_view=0
misc=0
zone(1): 31 -> zone(1): 31
source(2): 10.0.0.0-10.255.255.255, uuid_idx=684, 172.29.0.1-172.29.0.2, uuid_idx=684,
dest(1): 0.0.0.0-255.255.255.255, uuid_idx=538,
source fqdn address (1): uuid_idx=684
support.fortinet.com ID(227)
ADDR(63.137.229.1)
service(1):
[0:0x0:0/(0,65535)->(0,65535)] flags:0 helper:auto
-
Depending on whether the address group was added to the Source or Destination of the firewall policy or not, review the source or destination output of the iprope entry to get all IP addresses associated with the address group. Note that in some cases, there may be multiple iprope entries for a single firewall policy.
|
