Technical Tip: Radius Accounting for SSL VPN Users

bpozdena_FTNT · ‎10-02-2019

Description
This article describes the steps to configure FortiGate to send RADIUS Accounting messages containing usernames and IP address of SSL VPN users.

Useful links:
CLI Reference: https://docs.fortinet.com/document/fortigate/6.2.1/cli-reference/403620/user-radius

Scope
FortiGate v5.6.11+
FortiGate v6.0.7+
FortiGate v6.2.1+

Solution
Consider the bellow important requirements before implementing this solution:

- FortiGate should be running FortiOS versions 5.6.11+, v6.0.7+ or v6.2.1+.
In earlier versions, FortiOS will report the client’s public IP address instead of the assigned tunnel IP address in the 'Framed-IP-Address' attribute value.
- The attribute 'Framed-IP-Address' will not be included in the RADIUS Accounting-Request Start message. It will be included only in Interim-Updates and Accounting Stop message.
- The Interim Accounting-Request won't be sent unless the radius server sends AVP: 'Acct-Interim-Interval' in the 'Access-Accept' message.
Also, the Interim-Updates feature must be enabled on FortiGate under RADIUS profile.
- The minimum update interval for interim accounting messages can be set to 600 seconds.

There are two steps to complete this configuration:

1) Configure SSL VPN access for RADIUS users.
Example: https://docs.fortinet.com/document/fortigate/6.0.0/cookbook/551553/ssl-vpn-with-radius-and-fortitoke...

2) Configure Fortigate to send RADIUS Accounting:

#config user radius
    edit <RADIUS_PROFILE_NAME>
        set server <Radius_Server_IP>             <----- Specify the IP address of the RADIUS authentication server.
        set secret <password>                     <----- Secret used to authenticate with the RADIUS authentication server.
        set acct-interim-interval 600             <----- Enable sending of Interim Accounting updates every 10 minutes.
        config accounting-server
            edit 1
                set status enable                 <----- Enable sending of RADIUS Accounting messages.
                set server <Radius_Server_IP>     <----- Specify the IP address of the RADIUS accounting server.
                set secret <password>             <----- Secret used to authenticate with the RADIUS accounting server.
            next
        end
    next
end

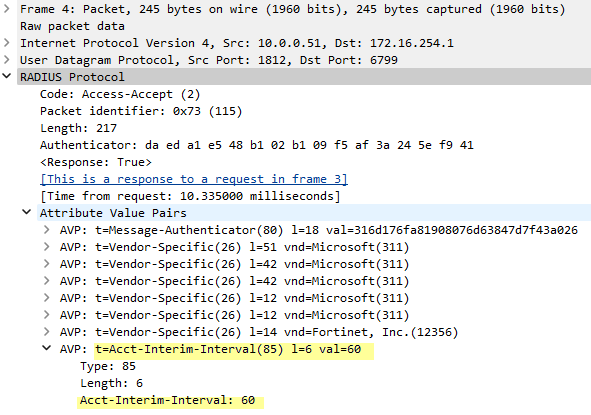

3) Ensure the RADIUS server is configured to send AVP 'Acct-Interim-Interval:600' in the Access-Accept message.

Example:

Verification of Configuration:

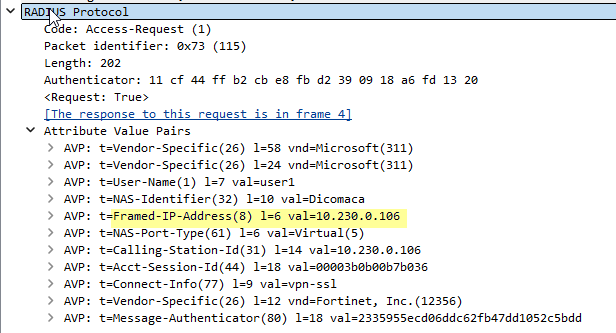

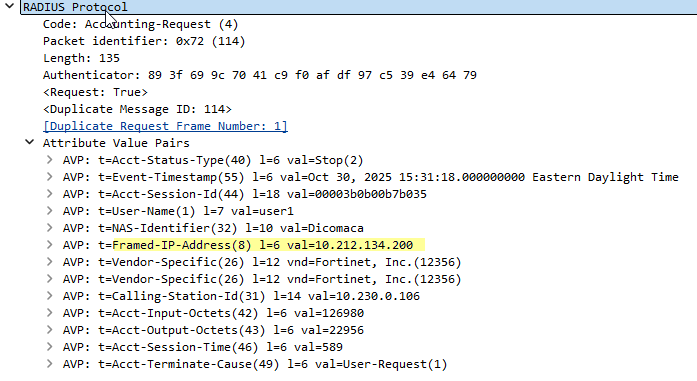

The bellow packet captures show the effect of the above configuration in action.
