Technical Tip: Multiple IPsec SD-WAN hubs sharing a single public IP address

[JavierM_CL]

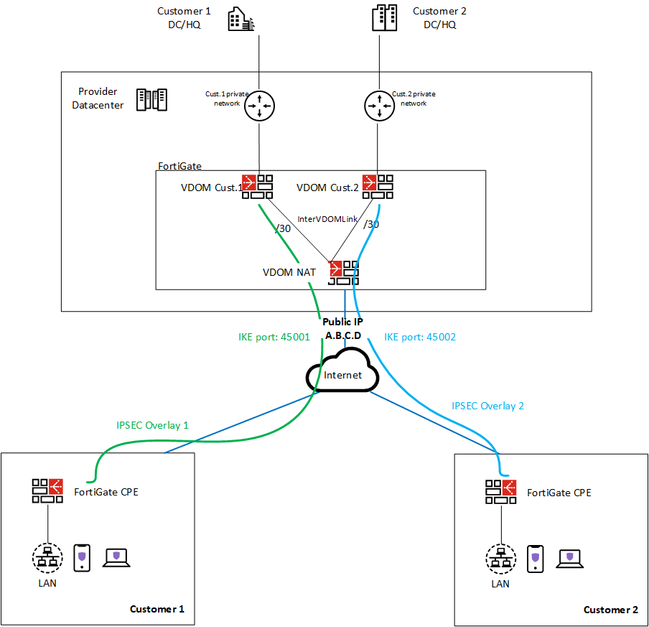

Description	This article describes a configuration that uses multiple VDOMs as HUBs sharing a single public IP address. A NAT VDOM is used to forward custom IPsec ports among the Customer VDOMs. In MSSP-like or multi-tenant environments where different customers use a HUB and Spoke overlay topology, sharing a FortiGate HUB device, VDOMs are used to separate customers from each other. Each VDOM will operate as a HUB dedicated to a particular customer organization. Usually, in this scenario, each HUB will be reachable from the dial-up spokes pointing to a customer dedicated public IP address or FQDN. In some cases, the provider may need to share the public IP addresses, because the allocated IP addresses are not enough to cover their entire customer base on a 1:1 basis.
Scope	FortiOS: 7.0 and later: General Architecture

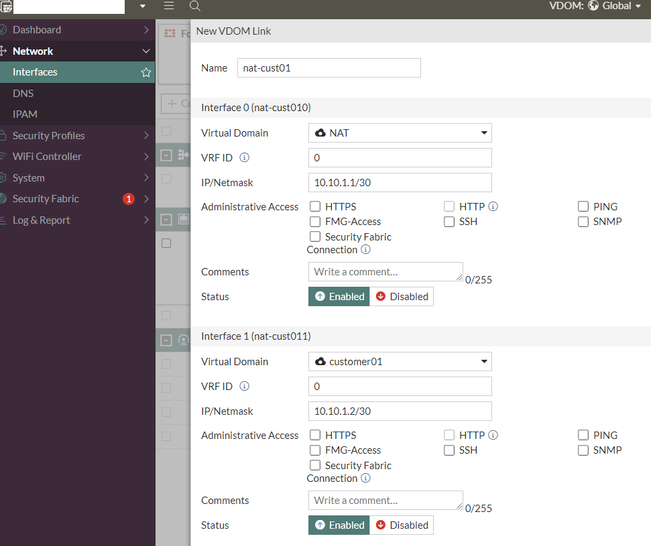

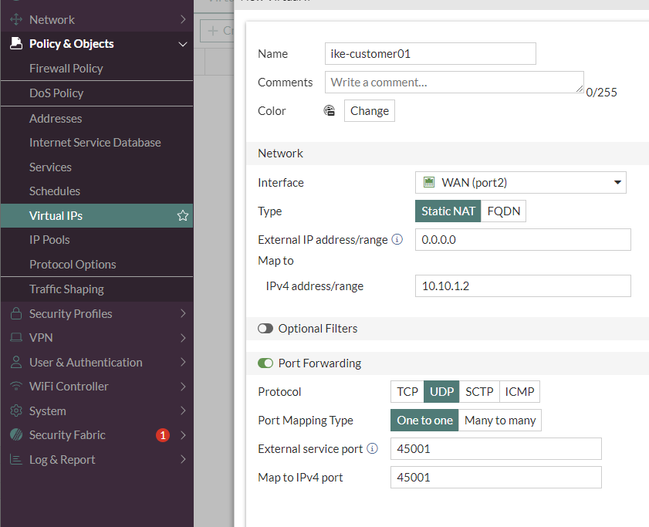

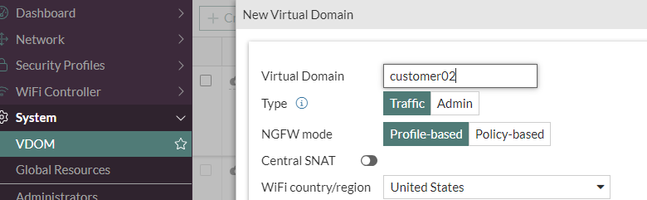

Solution	Follow steps 1 to 7 to configure the setup on FortiGate HUB: Configure a VDOM named as 'NAT'. This VDOM will host the WAN Interface with the Public IP Address. NAT VDOM Configure as many VDOMs as customers to deploy: Customer1… CustomerN. Customer VDOM On the Global VDOM, for each pair of NAT-Customer VDOMs, configure a /30 inter-VDOM-link. inter-vdom link See Configure Inter-VDOM link. Alternatively, a hardware accelerated vdom-link can be used: Configuring Inter-VDOM link acceleration. Configure a default route in the Customer VDOM: customer default route Customize IKE port on each Customer VDOM, and assign a dedicated port for each Customer: config vdom     edit customer01     current vf=customer01:4         config system settings             set ike-port 45001         end Reference: Configurable IKE port. On the NAT VDOM, create a VIP with port forward for each customer using the IKE port. VIP IKE port forward Reference: Virtual IP with services. On the NAT VDOM, configure a DNAT policy using the previously created VIP. DNAT Policy On the Spoke FortiGate, configure the corresponding IKE port: config system settings     set ike-port 45001 end Finally, configure the IPsec dial-up tunnel overlay depending on the desired scenario (hub and spoke, site to site). On all of the spokes, use the shared HUB public IP address as the remote gateway. Related articles: IPSEC VPN Wizard Hub and Spoke ADVPN Support  FortiGate as Dialup Client
