Technical Tip: Increasing value of top to populate in FortiGate local report

[ssriswadpong]

Description	This article describes how to increase the number of items to populate in the report database.
Scope	FortiGate.

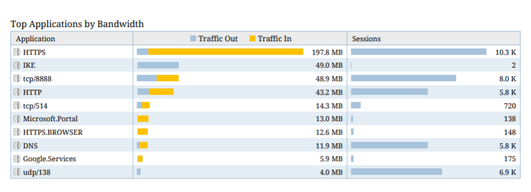

Solution	By default, some charts in the local report will display only the top 10 items, such as Top Applications by Bandwidth. It is possible to increase the top-n by. config report layout     edit <report name>         config body-item             edit <chart ID>                 set top-n          end end The example is below. Top-n will be increased for Top Applications by Bandwidth (ID 411) to 15. config report layout     edit "default"         config body-item             edit 411                 set top-n 15         end end Note: This command is generally only available for models with internal log disks. Supported models are listed in: config report layout. The result. It is possible to check the chart ID by. show report layout | grep chart -f Related article:  Technical Tip: Local Reports
